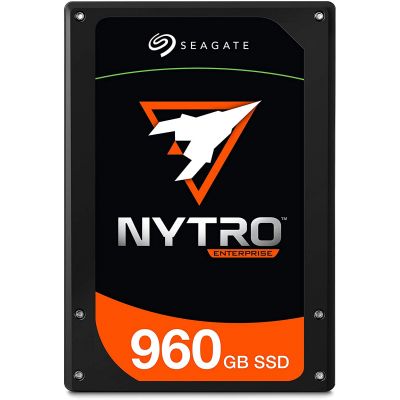

XA960LE10063

SPECIFICATIONS

• Capacity: 960GB
• Seagate Secure™ SED Model (TCG Enterprise): XA960LE10083
• Seagate Secure SED Model (TCG OPAL): XA960LE10103
• Interface: SATA 6Gb/s

FEATURES AND PERFORMANCE

• NAND Flash Type: 3D TLC
• Form Factor: 2.5 in × 7mm
• Sequential Read (MB/s) Sustained, 128KB QD32: 564
• Sequential Write (MB/s) Sustained, 128KB QD32: 536
• Random Read (IOPS) Sustained, 4KB QD32: 93000
• Random R70R (IOPS) Sustained. 4KB QD32: 40000
• Random Write (IOPS) Sustained, 4KB QD32: 22000
• Average Read Latency (μs), 4KB QD1: 153
• Average Write Latency (μs), 4KB QD1: 58

RELIABILITY

• Lifetime Endurance (Drive Writes per Day): 1
• Total Bytes Written to Flash (TB): 3070
• Nonrecoverable Read Errors per Bits Read: 1 per 10E17
• Mean Time Between Failures (MTBF, hours): 2000000
• Warranty, Limited (years): 5

POWER MANAGEMENT

• +5/+12V Overall Average Active Power (W): 3.2
• Average Idle Power (W): 1.2

PHYSICAL

• Height (mm/in, max): 7.0mm/0.276in
• Width (mm/in, max): 70.10mm/2.760in
• Depth (mm/in, max): 100.25mm/3.947in
• Weight (g/lb): 77.0g/0.1698lb
• Carton Unit Quantity: 10

ENVIRONMENTAL

• Temperature, Operating Internal (°C): 0°C – 70°C
• Temperature, Nonoperating (°C): -40°C – 85°C
• Temperature Change Rate/Hr, Max (°C): 20
• Shock, 0.5ms (Gs): 1000

CONFIGURATION

OTHER
