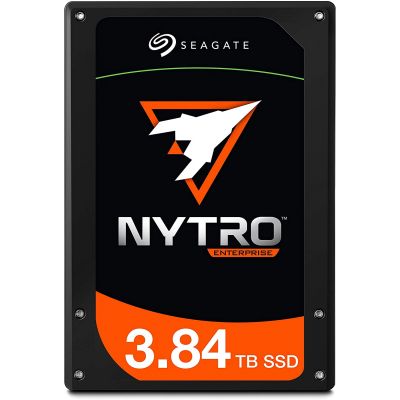

XA3840ME10063

SPECIFICATIONS

• Capacity: 3.84TB
• Seagate Secure™ SED Model (TCG Enterprise): XA3840ME10083
• Seagate Secure SED Model (TCG OPAL): XA3840ME10103
• Interface: SATA 6Gb/s

FEATURES AND PERFORMANCE

• NAND Flash Type: 3D TLC
• Form Factor: 2.5 in × 7mm
• Sequential Read (MB/s) Sustained, 128KB QD32: 564
• Sequential Write (MB/s) Sustained, 128KB QD32: 536
• Random Read (IOPS) Sustained, 4KB QD32: 92000
• Random R70R (IOPS) Sustained. 4KB QD32: 61000
• Random Write (IOPS) Sustained, 4KB QD32: 41000
• Average Read Latency (μs), 4KB QD1: 162
• Average Write Latency (μs), 4KB QD1: 38

RELIABILITY

• Lifetime Endurance (Drive Writes per Day): 3
• Total Bytes Written to Flash (TB): 28700
• Nonrecoverable Read Errors per Bits Read: 1 per 10E17
• Mean Time Between Failures (MTBF, hours): 2000000
• Warranty, Limited (years): 5

POWER MANAGEMENT

• +5/+12V Overall Average Active Power (W): 3.5
• Average Idle Power (W): 1.2

PHYSICAL

• Height (mm/in, max): 7.0mm/0.276in
• Width (mm/in, max): 70.10mm/2.760in
• Depth (mm/in, max): 100.25mm/3.947in
• Weight (g/lb): 82.0g/0.1808lb
• Carton Unit Quantity: 10

ENVIRONMENTAL

• Temperature, Operating Internal (°C): 0°C – 70°C
• Temperature, Nonoperating (°C): -40°C – 85°C
• Temperature Change Rate/Hr, Max (°C): 20
• Shock, 0.5ms (Gs): 1000
