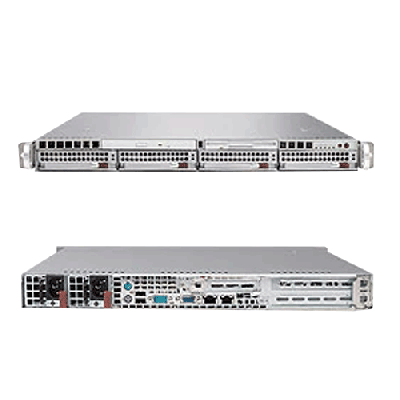

Superrmicro 1U Rackmount A+ Servers 1021M-UR+B

Call for price

In stock

SKU

AS-1021M-UR+V

Key Features:
• Supports 2x Six-Core AMD Opteron„¢ 2000 processor
• Up to 128GB of memory
• Dual-port Gigabit LAN/Ethernet Controller
• 4 x 3.5" Hot-swap Drive Bays
• 650W Redundant High-efficiency Power Supply

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Superrmicro 1U Rackmount A+ Servers AS-1021M-UR+V

Product SKU
AS-1021M-UR+V	• A+ Server 1021M-UR+V (Silver)
AS-1021M-UR+B	€¢ A+ Server 1021M-UR+B (Black)

Motherboard
	• Super H8DMU+

Processor/Chipset
CPU	• Dual 1207-pin Socket F • Supports up to two Six-Core AMD Opteron„¢ 2000 Series (Socket F) processors • 1 MB Cache • HT3.0 Link support
Chipset	• nVIDIA MCP55Pro

System Memory
Memory Capacity	• Sixteen 240-pin DIMM sockets • Supports up to 128GB DDR2 800/667/533/400 MHz memory • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks • Dual channel memory bus
Memory Type	• DDR2 800/667/533/400 MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 256 MB, 512 MB, 1GB, 2GB, 4GB
Memory Voltage	• 1.8V only

On-Board Devices
SATA	• nVidia MCP55 Pro SATA2 3.0Gbps Controller • 6 SATA Ports • nVidia Host RAID 2.0 • SATA RAID 0, 1, 0+1, 5, JBOD Support
IPMI	• Intelligent Platform Management Interface v.2.0 (Optional: AOC-SIMSO(+) R 3.00) • RMM (Remote Management Module) • (Card not included) • For dedicated LAN, CBL-0177L must be used on left full-size slot. (Cable not included)
Network Controllers	• nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA	• ATI ES1000 Graphics Controller
Super I/O	• Winbond 83627HF

Input/Output
SATA	• 6 SATA2 ports
IDE	• Single EIDE channel support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100/133
Floppy	• 1 Floppy port; 1.44 MB support
LAN	• 2 RJ45 LAN ports
USB	• FUCI • Up to 6 USB Ports 2.0 Compliant • 2 Rear Ports • 4 Internal Headers
VGA	• 1 VGA port
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Ports	• 1 Fast UART 16550 serial port • 1 serial port header
Others	• 1 UID

System BIOS
BIOS Type	• 8Mb Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.2 • ACPI 2.0 • BIOS Rescue Hot Keys • USB Keyboard Support • Hardware BIOS Virus Protection • SMBIOS 2.3

Chassis
Form Factor	• 1U Rackmount
Model	• SC815TQ-R650U

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 25.6" (650mm)
Gross Weight	• 40 lbs (18.1kg)
Available Colors	• Silver, Black

Front Panel
Buttons	• Power On/Off button • System Reset button • UID button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • Universal Information (UID) LED
Ports	• 2x USB & DB9 COM port tray • (Optional - in place of floppy drive)

Expansion Slots
Left Slots	• 1 Universal I/O (UIO) Slot (Full-height / Full-length) • 1 PCI-express x8 Slot (Full-height / Full-length)

Drive Bays
Hot-swap	• 4 x 3.5" Hot-swap SAS / SATA drive bays

SAS Backplane
	• 1U SAS / SATA Backplane w/ AMI 9071 chip

Peripheral Drives
DVD-ROM	• Slim 8x DVD, 24x CD, DVD-ROM drive

System Cooling
Fans	• 4x 4cm counter-rotating fans

Power Supply
	650W AC power supply w/ PFC
AC Voltage	• 100 - 240V, 60-50Hz, 8-4 Amp
+5V standby	• 3 Amp
+12V	• 54 Amp
With Power Distributor	• +5V: 25 Amp • +3.3V: 12 Amp • -12V: 0.6 Amp

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +3.3V, +5V, ±12V, +5V Standby, HyperTransport Link voltage, memory voltage, VBAT, Chipset voltage • CPU 4-Phase-switching voltage reulator
FAN	• Total up to 8-fan status tachometer monitoring • Up to two 4-pin and six 3-pin fan headers • Status monitor for speed control • Stauts monitor for on/off control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal Control for 8x Fan Connectors • I2C Temperature Sensing Logic
LED	• CPU / System Overheat LED • Suspend-State Indicator LED • +5V Standby Alert LED • UID/Remote LED
Other Features	• Chassis Intrusion Detection • Chassis Intrusion Header

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
