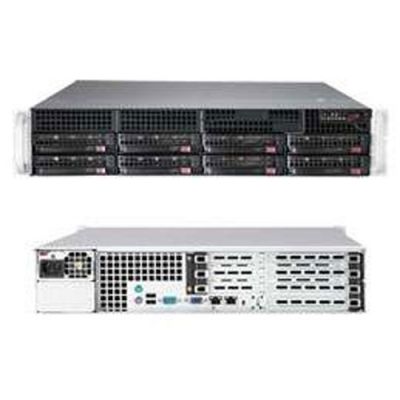

Supermicro SYS-6027R-TDT+ 2U Rackmount Server Barebone

Call for price

In stock

SKU

SYS-6027R-TDT+

Key Features:
• Data Center Optimized
• Virtualization & Cloud
• Managed Hosting, HPC
• Database, Big Data Analytics
• 24x DIMM slots, 2x 10GBase-T
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600
and E5-2600 v2 family€
• Up to 1.5TB ECC DDR3, up to 1866MHz; 24x DIMM slots
• 3x PCI-E 3.0 x8 FHHL + 1x LP
• Intel® X540 Dual port 10GBase-T
• 8x 3.5" Hot-swap SATA HDD Bays
•600W High-efficiency power supply Platinum Level Certified

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SuperServer SYS-2027R-72RFTP+

Supermicro 2027R-72RFTP+ 2U Rackmount Barebone with 920W Redundant Power Supplies, Intel® C602J chipset support 16x Hot-swap 2.5" SAS/SATA HDD Bays; 8x SAS2 ports
support via LSI 2208 using Supermicro Super X9DRW-7TPF+ Server Motherboard and CSE-219A-R920WB 2U Rackmount Chassis.

Product SKU
SYS-6027R-TDT+	SuperServer 6027R-TDT+ (Black)

Motherboard
	Super X9DRD-iT+

Processor/Cache
CPU	Dual Socket R (LGA 2011) Intel® Xeon® processor E5-2600 and E5-2600 v2 family€ (up to 135W TDP *)
Cache	Up to 30MB
System Bus	QPI up to 8 GT/s
Note	€ BIOS version 3.0 or above is required * Please contact your Will Jaya sales representative for additional details

System Memory
Memory Capacity	24x 240-pin DDR3 DIMM slots Up to 1.5TB DDR3 ECC LRDIMM Up to 768GB DDR3 ECC Registered memory (RDIMM) Up to 128GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB LRDIMM: 64GB, 32GB
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C602 chipset
SATA	Via Cable for SATA controller SATA 2.0 (3Gbps) & 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Intel® X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	Matrox G200eW

Input/Output
Serial ATA	2x SATA 3.0 ports (6Gbps) 6x SATA 2.0 ports (3Gbps)
LAN	2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A)
VGA	1x VGA port
Serial Port/Header	1x Fast UART 16550 serial 1x COM port (rear)

Chassis
Form Factor	2U Rackmount
Model	CSE-825TQ-600WB

Dimension and Weight
Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	25.5" (647mm)
Weight	36 lbs (16.4kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button System Reset button UID button
LED	Power status LED HDD activity LED 2x Network activity LEDs System information (overheat/UID) LED

Expansion Slot
PCI-Express	1x PCI-E 3.0 x16 Full-height, Half-length 2x PCI-E 3.0 x8 Full-height, Half-length 1x PCI-E 3.0 x8 Low-profile

Drive Bays
Hot-Swaps	8x 3.5" Hot-swap SATA HDD trays

Backplane
	1x 2U SAS / SATA backplane

System Cooling
Fans	3x 80x80x38mm Counter-rotating PWM fans

Power Supply with Power Distributor
	600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching
AC Input	100-240V, 50-60Hz, 7.5A max
DC Ouput	+3.3V: 15A +5V: 18A +5V standby: 3A +12V: 49A -12V: 0.5A
Certification	Platinum Certified

System Bios
Bios Type	128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI

Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
