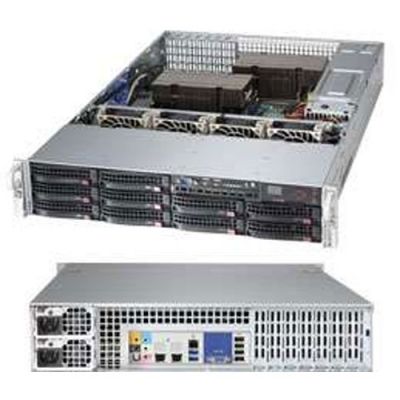

Supermicro SYS-6027AX-72RF 2U Rackmount Server Barebone

Call for price

In stock

SKU

SYS-6027AX-72RF

Key Features:
• Cooling Optimized Solution
• Support Hyper-Speed
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and
   E5-2600 v2 family€
• Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
• 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8, 1x UIO PCI-E 3.0 x8 (for SMC UIO)
  or 1x PCI-E 2.0 x4 (in x8)
• I/O ports: 2 GbE LAN, 4 USB 3.0, 2 HD/AC97, 1 IPMI dedicated LAN ports,
   and 2 IEEE 1394 Header
• 10x 3.5" Hot-swap HDD Bays; Support SAS2 HW RAID via LSI 2208
• 1280W Redundant Power Supplies Platinum Level (95%)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SuperServer SYS-6027AX-72RF

Supermicro 6027AX-72RF 2U Rackmount Barebone with 1280W Redundant Power Supplies, Intel® C602 Chipset support 10x 3.5" Hot-swap HDD Bays; Support SAS2 HW RAID
via LSI 2208 using Supermicro Super X9DAX-7F Server motherboard and CSE-829BTQ-R1K28LPB 2U Rackmount Chassis.

Product SKU
SYS-6027AX-72RF	SuperServer 6027AX-72RF (Black)

Motherboard
	Super X9DAX-7F

Processor/Cache
CPU	Intel® Xeon® processor E5-2600 and E5-2600 v2 family€ (up to 150W TDP) Dual Socket R (LGA 2011)
Cache	Up to 20MB
System Bus	QPI up to 8 GT/s
Note	€ BIOS version 3.0 or above is required

System Memory
Memory Capacity	16x 240-pin DDR3 DIMM slots Up to 1TB DDR3 ECC LRDIMM Up to 512GB DDR3 ECC Registered memory (RDIMM) Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C602 chipset
SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1
SAS	SAS2 from LSI 2208 RAID 0, 1, 5, 6, 10, 50, 60 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
Audio	RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Graphics	Matrox G200eW

Input/Output
Serial ATA	2x SATA 3.0 ports (6Gbps) 8x SATA 2.0 ports (3Gbps)
SAS	8x SAS2 ports (6Gbps)
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	4x USB 3.0 (2 front, 2 rear) and 4x USB 2.0 ports
Audio	Line-in / Line-out / Microphone Ports
Video	1x VGA port
Serial Port/Header	2x Fast UART 16550 ports

Chassis
Form Factor	2U Rackmount
Model	CSE-829BTQ-R1K28LPB

Dimension and Weight
Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	27.7" (704mm)
Weight	52 lbs (23.6kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button System Reset button
LED	Power status LED HDD activity LED 2x Network activity LEDs System Overheat LED Power fail LED

Expansion Slot
PCI-Express	2 PCI-E 3.0 x16 slots 3 PCI-E 3.0 x8 slots 1 UIO PCI-E 3.0 x8 (for SMC UIO) or 1 PCI-E 2.0 x4 (in x8) slot

Drive Bays
Hot-Swaps	10x 3.5" Hot-swap SAS/SATA HDD trays

Display
LCD Screen	Front panel LCD display (optional)

Backplane
	1x SAS2 / SATA backplane

System Cooling
Fans	4x PWM fans w/ optimal fan speed control
Heatsink	Optional 2x Passive CPU Heat Sink (SNK-P2048P)

Power Supply
	1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input	1000W Output @ 100-140V, 8-12A, 50-60Hz 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Ouput	1000W: +12V/83A; +5Vsb/4A 1280W: +12V/106.7A, +5Vsb/4A
Certification	Platinum Certified

System Bios
Bios Type	128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI

Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
