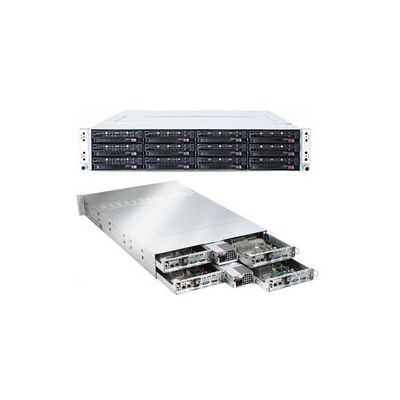

Supermicro SYS-6026TT-H6IBXRF 2U Rackmount

Call for price

In stock

SKU

SYS-6026TT-H6IBXRF

Key Features:
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
• Up to 192GB** DDR3 1333/ 1066/ 800MHz ECC Registered DIMM / 48GB
Unbuffered DIMM
• 1 (x8) PCI-E 2.0 (low-profile) with riser card
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Dual Intel® 82574L Gigabit Ethernet Controller
• 3x 3.5" Hot-swap SAS Drives
• 1400W Redundant Power SuppliesGold Level Certified
• Mellanox ConnectX QDR Infiniband 40Gbps Controller w/ QSFP connector

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SuperServer SYS-6026TT-H6IBXRF 2U Rackmount

Supermicro SYS-6026TT-H6IBXRF 2U Rackmount Barebone with 1400W Redundant Power Supplies Gold Level Certified, Intel® 5520 (Tylersburg) chipset, support 3x 3.5" hot-swap
SAS drive bays using Supermicro 4x Super X8DTT-HIBXF+ Motherboard and CSE-827HQ-R1400B 2U Chassis.

Product SKU
SYS-6026TT-H6IBXRF	SuperServer 6026TT-H6IBXRF (Black)

Motherboard
	4x Super X8DTT-HIBXF+

Processor/Cache
CPU	Dual 1366-pin LGA Sockets Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: Intel® Xeon® Processor X5600/E5600/L5600 Series (Westmere) 40W - 95W Intel® Xeon® Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
QPI	uup to 6.4 GT/s

System Memory
Memory Capacity	12x 240-pin DIMM slots Supports up to 192 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory Memory Mirroring supported
Memory Type	1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage	1.5 V / 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices (per node)
Infiniband	Mellanox ConnectX DDR Infiniband 20Gbps Controller
Chipset	Intel® 5520 (Tylersburg) chipset ICH10R
SAS	LSI 6Gbps SAS 2108 w/ Hardware RAID support via BPN-ADP-SAS2-H6iR RAID 0, 1, 5 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Dual Intel® 82574L Gigabit Ethernet Controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	Matrox G200eW
Super I/O	Winbond W83527HG chip
Clock Generator	932S421 chip

Input/Output (per node)
Serial ATA	3 SAS hard drives supported
LAN	2x RJ45 LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2 rear 2 total USB ports, 2.0 Compliant / 1.1 Compliant
VGA	1 VGA port
Serial Port/Header	1x Fast UART 16550 port / 1 Header
Infiniband	1 External QSFP Infiniband Connector

System Bios (per node)
Bios Type	32Mb SPI Flash EEPROM with AMI® BIOS
Bios Features	Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard support

System Bios (per node)

Bios Type

32Mb SPI Flash EEPROM with AMI® BIOS

Bios Features

Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support

Chassis
Form Factor	2U Rackmount
Model	CSE-827HQ-R1400B

Dimension and Weight
Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	28.5" (724mm)
Weight	85 lbs (38.6kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button UID button
LED	Power status LED Network activity LED System Overheat/fan fail/power fail/ LED UID LED (on UID button)

Expansion Slot (per node)
PCI-Express	1 (x8) PCI-E 2.0 via riser card (low-profile)

Drive Bays (per node)
Hot-Swaps	3x 3.5" hot-swap SAS drive bays

Hard Drive Backplane
	2U Hard drive Backplane

System Cooling
Fans	4x 8cm PWM Cooling Fans with Optimal fan speed control

Power Supply
	1400W high-efficiency (1+1) redundant power supply with PMBus
AC Input	1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz
DC Output	1100W: +12V/92A; +5Vsb/4A 1400W: +12V/116A; +5Vsb/4A
With Ditributor	+5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp
Certification	Gold Certified

PC Health Monitoring
CPU	Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. CPU Core 6-Phase-switching voltage regulator
FAN	Total of four 4-pin PWM fans 4x fans with tachometer monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 4x Fan Connectors PSU I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	Power Fail / Overheat LED Suspend-state Indicator LED UID LED
Other Features	SDDC Support

Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 5°C to 35°C (41°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
