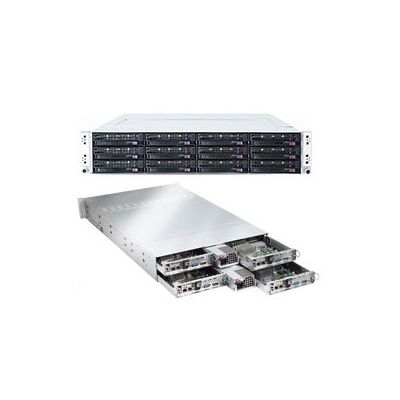

Supermicro SYS-6026TT-BIBQRF 2U Rackmount

Call for price

In stock

SKU

SYS-6026TT-BIBQRF

Key Features:
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
• Up to 192GB DDR3 1333/ 1066/ 800MHz ECC Registered DIMM / 48GB
Unbuffered DIMM
• 1 (x16) PCI-E 2.0 (Low Profile)
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Intel® 82576 Dual-Port Gigabit Ethernet Controll
• 3x Hot-swap SATA Drive Bays
• 1400W Gold-level High-efficiency Redundant Power Supply
• Mellanox ConnectX QDR Infiniband 40Gbps Controller w/ QSFP connector

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SuperServer SYS-6026TT-BIBQRF 2U Rackmount

Supermicro SYS-6026TT-BIBQRF 2U Rackmount Barebone with 1400W Gold-level High-efficiency Redundant Power Supplies, Intel® 5520 (Tylersburg) chipset, 3x 3.5" SATA Hot-swap
drive bays using Supermicro 4x Super X8DTT-IBQF Motherboard and CSE-827H-R1400B 2U Chassis.

Product SKU
SYS-6026TT-BIBQRF	SuperServer 6026TT-BIBQRF (Black)

Motherboard
	4x Super X8DTT-IBQF

Processor/Cache
CPU	Dual 1366-pin LGA Sockets Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: Intel® Xeon® Processor X5600/E5600/L5600 Series (Westmere) 40W - 95W Intel® Xeon® Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
QPI	up to 6.4 GT/s

System Memory
Memory Capacity	12x 240-pin DIMM slots Supports up to 192 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory Memory Mirroring supported
Memory Type	1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage	1.5 V / 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices (per node)
Infiniband	Mellanox ConnectX QDR Infiniband 40Gbps Controller
Chipset	Intel® 5520 (Tylersburg) chipset ICH10R + IOH-36D
SATA	Intel ICH10R SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Intel® 82576 Dual-Port Gigabit Ethernet Controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT 3 support for fast, scaleable, and reliable networking VMDq support for better performance of virtualization 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	Matrox G200eW
Super I/O	Winbond W83527HG chip
Clock Generator	932S421 chip

Input/Output (per node)
Serial ATA	Six Serial ATA ports 3 SATA hard drives supported
LAN	2x RJ45 LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2 rear + 1 header (2 Ports) 4 total USB ports, 2.0 Compliant / 1.1 Compliant
VGA	1 VGA port
Serial Port	1 Fast UART 16550 serial port
Infiniband	1 External QSFP Infiniband Connector

System Bios (per node)
Bios Type	32Mb SPI Flash EEPROM with AMI® BIOS
Bios Features	Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard support

System Bios (per node)

Bios Type

32Mb SPI Flash EEPROM with AMI® BIOS

Bios Features

Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support

Chassis
Form Factor	2U Rackmount
Model	CSE-827H-R1400B

Dimension and Weight
Height	3.5" (89mm)
Width	17.25" (438mm)
Depth	28.5" (724mm)
Weight	85 lbs (38.6kg)
Available Color	Black

Front Panel (per node)
Buttons	Power On/Off button UID button
LED	Power LED (on power button) Network activity LED System Overheat/fan fail/power fail/ LED UID LED (on UID button)

Expansion Slot (per node)
PCI-Express	1 (x16) PCI-E ( Low Profile)

Drive Bays (per node)
Hot-Swaps	3x 3.5" SATA Hot-swap drive bays

Hard Drive Backplane
	2U Hard drive Backplane

System Cooling
Fans	4x Cooling Fans

Power Supply
	1400W high-efficiency (1+1) redundant power supply with PMBus
AC Input	1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz
DC Output	1100W: +12V/92A; +5Vsb/4A 1400W: +12V/116A; +5Vsb/4A
With Ditributor	+5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp
Certification	Gold Certified

PC Health Monitoring
CPU	Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. CPU Core 6-Phase-switching voltage regulator
FAN	Total of four 4-pin PWM fans 4x fans with tachometer monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 4x Fan Connectors PSU I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	Power Fail / Overheat LED Suspend-state Indicator LED UID LED
Other Features	SDDC Support

Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 5°C to 35°C (41°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
