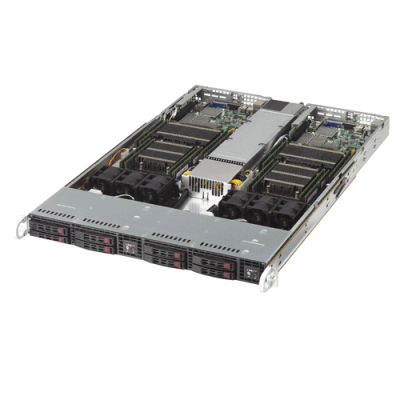

Supermicro SYS-1028TR-T 1U Twin MultiNode Rackmount

Call for price

In stock

SKU

SYS-1028TR-T

Key Features:
• Two systems (nodes) in a 1U form factor
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4€ / v3 family; QPI up to 9.6GT/s
• Up to 1TB€ ECC 3DS LRDIMM , up to DDR4- 2400€ MHz ; 8x DIMM slots
• 1x PCI-E 3.0 x16 (in x16) slot
• 4x 2.5" Hot-swap SAS/SATA HDD bays
• Intel® i350 Dual port GbE LAN
• I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 2x USB 2.0 (rear)
• 1000W High-efficiency Power Supply Titanium Level Certified

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SuperServer SYS-6018U-TRT+

Supermicro 6018U-TRT+ 1U Rackmount Server Barebone with 750W Redundant Power Supplies Platinum Level (94%+), 4x SATA3 (6Gbps) ports, 4x 3.5" Hot-swap Drive Bays, with
Supermicro Super X10DRU-i+ Server Motherboard and CSE-819UTQ-R750 1U Rackmount Chassis.

Product SKU
SYS-1028TR-T	SuperServer 1028TR-T (Black)

Motherboard
	Super X10DRT-L

Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v4€ / v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011)
Cores/Cache	Up to 22 Cores€ / Up to 55MB€ Cache
System Bus	QPI up to 9.6 GT/s
Note	BIOS version 2.0 or above is required
	Please contact WillJaya Technical support for additional information

System Memory
Memory Capacity	8x 288-pin DDR4 DIMM slots Up to 1TB€ ECC 3DS LRDIMM, 256GB ECC RDIMM
Memory Type	2400€ /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors

On-Board Devices
Chipset	Intel® C612 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Connectivity	Intel® i350 Dual Port Gigabit Ethernet Supports 10GBASE-T, 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	ASPEED AST2400 BMC

Input/Output
Serial SATA	10x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 2.0 ports (rear)
Video	1x VGA port
Serial Port	1x COM port (1 header)
DOM	2x SATA DOM (Disk on Module) ports

Management
Software	Intel® Node Manager IPMI 2.0 NMI SuperDoctor® 5 Watch Dog
Power Configuration	ACPI Power Management Power-on mode for AC power recovery

Chassis
Form Factor	1U Twin
Model	CSE-809BTQ-1K03B

Dimension and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	27.75" (705mm)
Gross Weight	43 lbs (19.5kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button System Reset Button UID button
LED	Power Status LED HDD activity LED 2x Network activity LEDs Universal Information (UID) LED

Expansion Slots
PCI-Express	1x PCI-E 3.0 x16 (in x16) slot

Drive Bays
Hot Swap	4x 2.5" Hot-swap HDD trays

Backplane
	SAS/SATA HDD Backplane

System Cooling (per Node)
Fans	3x 40x56mm counter-rotation PWM fan

Power Supply
	1000W Titanium Level (96%) AC-DC power supply with PMBus and I2C
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
