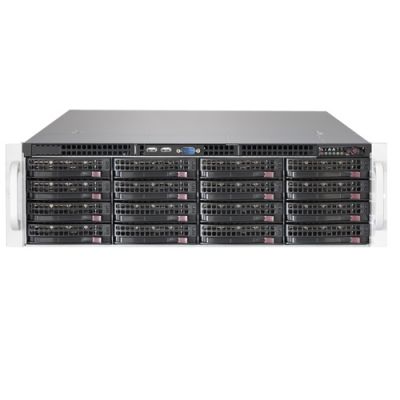

Supermicro SuperStorage SSG-6038R-E1CR16N

Call for price

In stock

SKU

SSG-6038R-E1CR16N

Key Features:
• Dual socket R3 (LGA 2011) supports
• Intel® Xeon® processor E5
• UP to 3TB of memory
• 16x 3.5" Hot-swap SAS3/SATA3 drive bays
• 2x 80mm hot-swap rear exhaust PWM fans
• 920W Redundant Power Supplies Platinum Level (94%)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Supermicro SuperStorage SSG-6038R-E1CR16N

Product SKU
SSG-6038R-E1CR16N	• SuperServer 6038R-E1CR16N (Black)

Motherboard
	• Super X10DRi-T4+

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4€ / v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores€ / Up to 55MB€ Cache
System Bus	• QPI up to 9.6 GT/s
	• € BIOS version 2.0 or above is required
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 24x 288-pin DDR4 DIMM slots • Up to 3TB€ ECC 3DS LRDIMM, 1.5TB ECC RDIMM
Memory Type	• 2400€ /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SAS	• SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID 0,1,5,6,10,50,60
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Quad 10GBase-T LAN with IntelX® X540 Ethernet Controller • Virtual Machine Device Queues reduce I/O overhead • Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output
LAN	• 4 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 3 USB 3.0 ports (2 rear + 1 Type A) • 2 USB 2.0 ports (2 rear)
VGA	• 1 VGA port
Serial Port/Header	• 2 Fast UART 16550 serial; 2 COM Ports (1 rear, 1 header)
SATA	• 10 SATA3 (6Gbps) ports
DOM	• 2 SuperDOM (Disk on Module) ports
TPM	• 1 TPM 1.2 20-pin Header

Chassis
Form Factor	• 3U Rackmount
Model	• CSE-836BE1C-R920B

Dimension and Weight
Width	• 17.2" (437mm)
Height	• 5.2" (132mm)
Depth	• 25.5" (648mm)
Gross Weight	• 76 lbs (34.5 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • 2 Network activity LEDs • System Overheat LED • Power fail LED

Expansion Slots
PCI-Express	• 2 PCI-E 3.0 x16 slots • 3 PCI-E 3.0 x8 slots • 1 PCI-E 2.0 x4 (in x8) slot • Slot 3 & 4 occupied by controller and JBOD Expansion Port

Drive Bays
Hot-swap	• 16x 3.5" Hot-swap SAS3/SATA3 Drive Bays
Optional	• 2x 2.5" optional rear Hot-swap SATA drive bays

Backplane
	• SAS3/SATA3 single expander per backplane

System Cooling
Fans	• 2x 80mm hot-swap rear exhaust cooling fans • Redundant cooling

Power Supply w/Power Distributor
	• 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input	• 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output	• 4 Amp @ +5V standby • 75 Amp @ +12V
Certification	• Platinum Certified

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0/ 2.0/ 3.0/ 4.0 • USB SMBIOS 2.7.1 • UEFI 2.3.1

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
