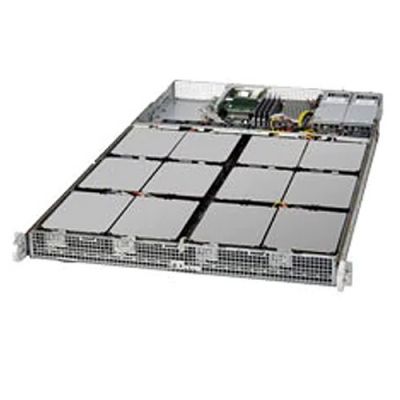

Supermicro SuperStorage SSG-5019D8-TR12P (Complete System Only)

Call for price

In stock

SKU

SSG-5019D8-TR12P

Key Features:
• Intel® Xeon® processor
• 12 Hot-swap 3.5" SATA3 bays
• Up to 512GB of memory
• 6x 4cm 4-pin PWM fans
• 400W Redundant Power Supplies
• Built in Intel QAT up to 40Gbps Crypto/Compression

Due to the complexity of integration, this product is sold as a completely assembled system only (including but not limited to memory and 12 HDDs). Please contact your Will Jaya sales rep for special requirements.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Supermicro SuperStorage SSG-5019D8-TR12P (Complete System Only)

Product SKU
SSG-5019D8-TR12P	• SuperServer 5019D8-TR12P (Black)

Motherboard
	• Super X11SDV-8C-TP8F

Processor/Cache
CPU	• Intel® Xeon® processor D-2146NT, CPU TDP support 80W
Cores/Cache	• 8 Cores, 16 Threads

System Memory
Memory Capacity	• Up to 512GB DDR4 ECC LRDIMM • Up to 256GB DDR4 ECC RDIMM • 4 DIMM slots
Memory Type	• 2666/2400/2133MHz ECC DDR4 L/RDIMM • Operating speed up to 2133MHz
DIMM Sizes	• 128GB, 64GB, 32GB, 16GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
SATA	• SATA3 (6Gbps) ports via SoC controller
Network Controllers	• Dual 10G SFP+ via SoC • Quad 1GbE with Intel I350-AM4 • Dual 10GBase-T with Intel X557
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	• Aspeed AST2500 BMC

Input/Output
SATA	• 12 SATA3 (6Gbps) ports (HDD/SSD)
LAN	• 2 10G SFP+ ports • 4 RJ45 1GbE LAN ports • 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear)
VGA	• 1 VGA port
Others	• TPM 2.0 header

System BIOS
BIOS Type	• 128Mb SPI Flash with AMI BIOS
BIOS Features	• PCI 3.0 • ACPI 5.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.8 • UEFI 2.4 • RTC (Real Time Clock) Wakeup

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-801LTS-R407CP

Dimension and Weight
Width	• 17.2" (437mm)
Height	• 1.7" (43mm)
Depth	• 32" (813mm)
Gross Weight	• 32 lbs (14.5kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • Network activity LEDs • System Information LED • Information LED (temp., status)

Expansion Slots
PCI-E	• 1 PCI-E 3.0 x8 slot • 1 Mini-PCI-E with mSATA Support
M.2	• M.2 Interface: 1 PCI-E 3.0 x4 and 1 SATA/PCI-E 3.0 x2 • Form Factor: 2242/2280 • Key: M-Key, B-Key

Drive Bays
Internal	• 12 Hot-swap 3.5" SATA3 drive bays • Optional AOC-S3216L-L16iT: support 12x 3.5" SAS3 + 2x 2.5" fixed SAS3/SATA3 or NVMe

System Cooling
Fans	• 6x 4cm 4-pin fans

AC/DC240V Input Redundant Power Supply
	• 400W 1U Redundant Power Supplies with PMbus
Total Output Power	• 400W
Dimension (W x H x L)	• 54.5 x 40 x 220 mm
Input	• 100 - 240Vac / 6.0 - 3.0A / 50-60Hz • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V	• Max: 33A / Min: 0.5A
+5V sb	• Max: 3A / Min: 0A
Output Type	• Gold Finger Connector Mating with Molex 45984-4343
Certification	• Platinum Level Certified

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
