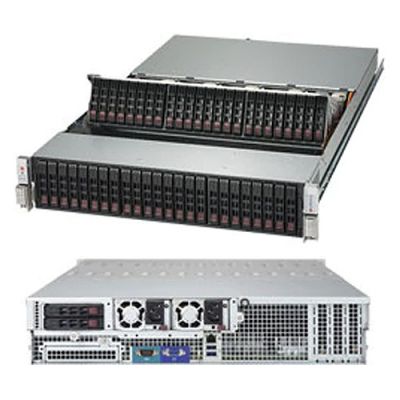

Supermicro SuperStorage SSG-2029P-E1CR48H (Complete System Only)

Call for price

In stock

SKU

SSG-2029P-E1CR48H

Key Features:
• Dual socket P (LGA 3647)
• Supports Intel® Xeon® Scalable Processors
• UP to 3TB of memory
• 48 Hot-swap 2.5" SAS3/SATA3 drive bays
• 5x 8cm high-performance PWM fans
• 1600W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 2 DIMMs, 12 HDDs and 1 NIC or SIOM card). Please contact your Will Jaya sales rep for special requirements.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Supermicro SuperStorage SSG-2029P-E1CR48H (Complete System Only)

Product SKU
SSG-2029P-E1CR48H	• SuperServer 2029P-E1CR48H (Black)

Motherboard
	• Super X11DSC+

Processor/Cache
CPU	• Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s • Support CPU TDP 70-205W
Cores	• Up to 28 Cores with Intel® HT Technology

System Memory
Memory Capacity	• 24 DIMM slots • Up to 3TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	• 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset	• Intel® C621 chipset
SAS	• SAS3 (12Gbps) via Broadcom 3108; HW RAID • RAID 0, 1, 5, 6, 10, 50, 60
SATA	• SATA3 (6Gbps); RAID 0, 1, 5, 10, 50
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	• ASPEED AST2500 BMC

Input/Output
Serial ATA	• 8 SATA3 (6Gbps) ports
LAN	• 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear) • 1 Type A
Video	• 1 VGA D-Sub connector port
Serial Port/ Header	• 1 Fast UART 16550 port / 1 Header

System BIOS
BIOS Type	• AMI UEFI

Management
Software	• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM, SPM, SUM • SuperDoctor® 5 • Watchdog

PC Health Monitoring
CPU	• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator
FAN	• Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-226STS-R1K62P1

Dimension and Weight
Width	• 17.2" (437mm)
Height	• 3.5" (89mm)
Depth	• 30" (684mm)
Gross Weight	• 65 lbs (29.5 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • Network activity LEDs • System Information LED • Power fail LED

Expansion Slots
PCI-ExpressX	• 2 PCI-E 3.0 x16 slots • 1 PCI-E 3.0 x8 slot • 1 PCI-E 3.0 x8 + x8 for SAS3 Add-On-Module (AOM) • 1 SIOM card support (flexible networking)

Drive Bays
Hot-swap	• 48 Hot-swap 2.5" SAS3/SATA3 drive bays • 2 Hot-swap 2.5" SATA3 drive bays (rear)

Backplane
	• SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots

System Cooling
Fans	• 5x 8cm high-performance PWM fans

Power Supply
	• 1600W Redundant Power Supplies with PMBus
Total Output Power	• 1600W/1000W
Dimension (W x H x L)	• 73.5 x 40 x 203 mm
Input	• 100-127Vac / 13 - 9A / 50-60Hz • 200-240Vac / 10 - 8A / 50-60Hz
+12V	• Max: 83.3A / Min: 0A (100-127Vac) • Max: 133A / Min: 0A (200-240Vac)
12Vsb	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Titanium Level

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
