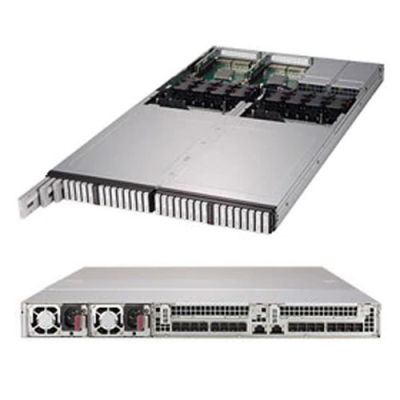

Supermicro SuperStorage SSG-136R-NR32JBF (Complete System Only)

Call for price

In stock

SKU

SSG-136R-NR32JBF

Key Features:
• Supports 32 Hot-swap NVMe Ruler SSDs
• Individual SSD power cycling
• 4 PCI-E x16 IO ports, 2 PCI-E x16 slots
• IPMI management with dedicated LAN
• 1000W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (including but not limited to CPU, memory, and HDDs). Please contact your Will Jaya sales rep for special requirements.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Supermicro SuperStorage SSG-136R-NR32JBF (Complete System Only)

Product SKU
SSG-136R-NR32JBF	• SSG-136R-NR32JBF

System Overview
Form Factor and Storage	• 1U Form factor • 32x ruler drive slots
Switch Architecture	• JBOF Switch
Networking Port	• 2 RJ45 Dedicated IPMI LAN ports
Management Interface	• Support for IPMI v.2.0

Front Panel
Buttons	• Power On/Off button • Reset button • UID button
LEDs	• Power LED • System Status LED • SSD Status LED • Drive activity LEDs • Network activity LEDs

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
EMC	• FCC, CE, VCCI, C-tick
Safety	• UL Listed, CB/IEC

Chassis
Form Factor	• 1U Rackmount
Model	• CSV-136TS-R1K04JP-R2

Dimension and Weight
Width	• 17.26" (438.4mm)
Height	• 1.71" (43.6mm)
Depth	• 31.95" (811.7mm)
Gross Weight	• 65 lbs (29.5kg)
Available Colors	• N.A.

Expansion Slots / Ports
PCI-Express	• 2 PCI-E 3.0 x16 slots • 4 PCI-E 3.0 x16 Mini-SAS HD ports

Drive Bays
Hot-swap	• Dual Drawer/Tray with a total of 32 NVMe Ruler SSDs

System Cooling
Fans	• 8x 40mm Hot-swap cooling fans

Power Supply
	• 1000W Redundant Power Supplies with PMBus
Total Output Power	• 800W/1000W
Dimension (W x H x L)	• 73.5 x 40 x 185 mm
Input	• 100-127Vac / 9.8 - 7A / 50-60Hz • 200-240Vac / 7 - 5A / 50-60Hz
+12V	• Max: 66.7A / Min: 0A (100-127Vac) • Max: 83A / Min: 0A (200-240Vac)
12Vsb	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Titanium Level
