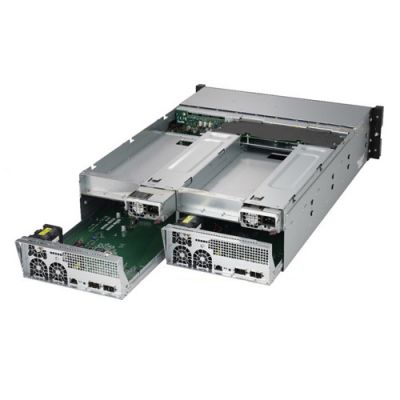

Supermicro SuperStorage SBB SSG-937R-E2CJB

Call for price

In stock

SKU

SSG-937R-E2CJB

Key Features:
• Two hot-pluggable systems (nodes)
• High Availability Storage Appliance Platform
• Redundant Hot-swap expander trays
• 16 Hot-swap 3.5" Drive Bays
• 12x 40mm cooling fans
• 1200W Redundant Power Supplies Titanium Level Certified

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Supermicro SuperStorage Bridge Bay SSG-937R-E2CJB

Product SKU
SSG-937R-E2CJB	• SuperStorage 937R-E2CJB (Black)

Add-on Module
	• 2x AOM-SAS3-937EL-JB

Drive Bays
Hot-swap	• 16 Hot-swap 3.5" Drive Bays • SAS or enterprise SATA HDD only recommended

Expander
	• AOM-SAS3-937EL-JB, features:
	• 12Gb SAS3 HDD support • Redundancy dual ported SAS architecture • Robust AirMax server node connections (SBB specification)

On-Board Devices
SAS	• SAS3 (12Gbps) via AOM-SAS3-937EL-JB
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC

Front Panel
Buttons	• Power On/Off button • System Reset button • Alarm Mute Switch
LEDs	• Power LED • Hard Drive Activity LED • 2 SAS link Activity LED • System Overheat LED • Power Fail LED

Chassis
Form Factor	• 3U Rackmount
Model	• CSE-937ETS-R1200NDBP-X10

Dimension and Weight
Width	• 17.2" (437mm)
Height	• 5.12" (130mm)
Depth	• 26.5" (673mm)
Gross Weight	• N.A.
Available Colors	• Black

System Cooling
Fans	• 12x 40mm cooling fans

Power Supply
	• 1200W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1200W
Dimension (W x H x L)	• 76 x 40 x 336 mm
Input	• 100-127Vac / 15-12A / 50-60Hz • 200-240Vac / 8.5-7A / 50-60Hz • 200-240Vdc / 8.5-7A (for CCC only)
+12V	• Max: 83A / Min: 0A (100-127Vac) • Max: 100A / Min: 0A (200-240Vac) • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb	• Max: 4A / Min: 0A
Output Type	• 19 Pairs Gold Finger Connector
Certification	• Titanium Level

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
