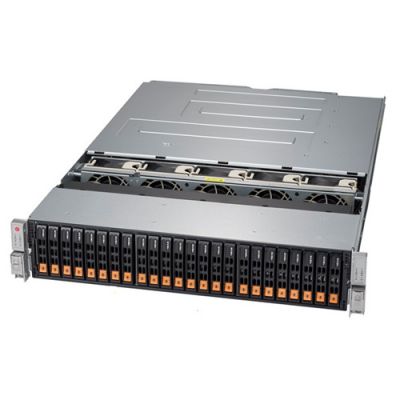

Supermicro SuperStorage SBB SSG-2029P-DN2R24L (Complete System Only)

Call for price

In stock

SKU

SSG-2029P-DN2R24L

Key Features:
• Two hot-pluggable systems (nodes)
• Dual socket P (LGA 3647)
• Intel® Xeon® Scalable Processors
• Up to 2TB of memory
• 24 U.2 Hot-swap dual-port NVMe drive bays
• 5x 8cm high-performance PWM fans
• 2000W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact your Will Jaya sales rep for special requirements.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Supermicro SuperStorage SBB SSG-2029P-DN2R24L (Complete System Only)

Product SKU
SSG-2029P-DN2R24L	• SuperServer 2029P-DN2R24L (Black)

Motherboard
	• Super X11DSN-TS

Processor/Cache
CPU	• Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s • Support CPU TDP 70-205W
Cores	• Up to 28 Cores with Intel® HT Technology

System Memory (per Node)
Memory Capacity	• 12 DIMM slots • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	• 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices (per Node)
Chipset	• Intel® C624 series chipset
SATA	• SATA3 (6Gbps); RAID 0, 1
Network Controllers	• Intel® X557-AT2 Dual Port 10GBase-T • Dual 10G private Ethernet between controller nodes
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	• ASPEED AST2500 BMC

Input/Output (per Node)
LAN	• 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear) • 1 Type A
Video	• 1 VGA D-Sub Connector port
Serial Port/Header	• 2 COM Ports (1 rear, 1 header)

System BIOS
BIOS Type	• AMI UEFI

Management
Software	• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM, SPM, SUM • SuperDoctor® 5 • Watchdog

PC Health Monitoring
CPU	• Monitors for CPU Cores, Chipset Voltages, Memory. • 4+1 Phase-switching voltage regulator
FAN	• Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-227TS-R2K05P3

Dimension and Weight
Width	• 17.2" (437mm)
Height	• 3.5" (89mm)
Depth	• 25.6" (650mm)
Gross Weight	• 67 lbs (30.4 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button
LEDs	• Power status LED • Hard drive activity LED • Network activity LEDs • System Overheat LED • Power fail LED

Expansion Slots (per Node)
PCI-Express	• 2 PCI-E 3.0 x16 HHHL slots • 1 PCI-E 3.0 x16 SIOM
M.2	• M.2 Interface: 1 PCI-E 3.0 x4 • Form Factor: 2242/2260/2280

Drive Bays
Hot-swap	• 24 U.2 Hot-swap dual-port NVMe drive bays

Backplane
	• 2U 24-Port SBB Backplane for 24x 2.5" Dual-Port NVMe SSD

System Cooling
Fans	• 5x 8cm high-performance PWM fans

Power Supply
	• 2000W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1800W/1980W/2000W
Dimension (W x H x L)	• 73.5 x 40 x 265 mm
Input	• 100-120Vac / 12.5-9.5A / 50-60Hz • 200-220Vac / 10-9.5A / 50-60Hz • 220-230Vac / 10-9.8A / 50-60Hz • 230-240Vac / 10-9.8A / 50-60Hz • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V	• Max: 83.3A / Min: 0A (100-120Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 166.7A / Min: 0A (230-240Vac) • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Titanium Level

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
