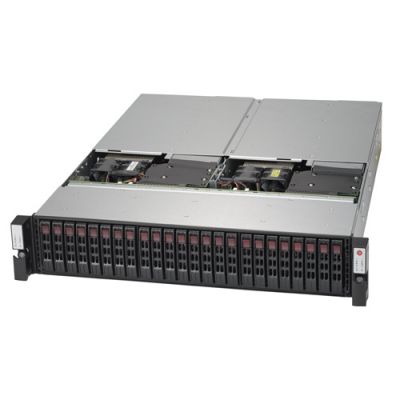

Supermicro SuperStorage SBB SSG-2028R-DE2CR24L (Complete System Only)
Key Features:
• Two hot-pluggable systems (nodes)
• Intel® Xeon® processor
• Up to 1TB of memory
• 24 shared hot-swap 2.5" SAS drive bay with SES2
• 8x 4cm PWM counter rotating cooling fans
• 1200W Redundant Power Supplies Titanium Level (96%)
|
Product SKU
| |
|---|---|
| SSG-2028R-DE2CR24L | • SuperServer 2028R-DE2CR24L (Black) |
|
Motherboard
| |
|---|---|
| • Super X10DRS-2U | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4€ / v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores€ / Up to 55MB€ Cache |
| System Bus | • QPI up to 9.6 GT/s |
| • € BIOS version 2.0 or above is required | |
| Notes | * Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
System Memory (per Node)
| |
|---|---|
| Memory Capacity | • 8x 288-pin DDR4 DIMM slots • Up to 1TB€ ECC 3DS LRDIMM, 256GB ECC RDIMM |
| Memory Type | • 2400€ /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
| NVDIMM | • NVDIMM support. (Not all vendor's NVDIMM are supported. Please contact your sales representative for details) |
|
On-Board Devices (per Node)
| Chipset | • Intel® C612 chipset |
|---|---|
| SAS | • SAS3 (12Gbps) via Broadcom 3008 |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Controllers | • Intel® X540 Dual Port 10GBase-T • 100Mb private ethernet between controller nodes • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1 Realtek RTL8201N PHY (dedicated IPMI) |
| Video | • ASPEED AST2400 BMC |
| Others | • PCI-E 3.0 x8 node to node/NTB connectivity • PLX Technology PEX8717; PLX ExpressNIC SDK available from PLX. NDA required |
|
Input/Output (per Node)
| SAS | • 2 JBOD expansion ports per node (mini-SAS HD) | LAN | • 2 RJ45 10GBase-T LAN ports • IPMI LAN shared port |
USB | • 3 USB 3.0 ports (2 rear + 1 Type A) |
|---|---|
| Video | • 1 VGA port |
| Serial Port/ Header |
• 1 COM port (rear) |
|
Chassis
| |
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-927ETS |
|
Dimension and Weight
| |
|---|---|
| Width | • 17.2" (437mm) |
| Height | • 3.5" (89mm) |
| Depth | • 25.25" (641mm) |
| Gross Weight | • 67 lbs (30.4 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED |
|
Expansion Slots (per Node)
| |
|---|---|
| PCI-Express (per node) | • 3 PCI-E 3.0 x8 low-profile slots |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• Drive Bays Hot-swap |
|
Backplane
| |
|---|---|
• SAS3 12Gbps passive backplane, redundant architecture with single expander on each motherboard. Motherboard also support 2x mini-SAS HD connectors for JBOD expansion |
|
|
System Cooling
| |
|---|---|
| Fans | • 4 Hot-swap 8cm midplane fans, 2 counter-rotating 4cm fans per node |
|
Power Supply
| |
|---|---|
| • Redundant 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm | |
| AC Input | • 1000W Output @ 100-127V, 12-15A, 50-60Hz • 1200W Output @ 200-240V, 7-8.5A, 50-60Hz |
| DC Output | • 1000W: +12V/83A; +5Vsb/4A • 1200W: +12V/100A, +5Vsb/4A |
| Certification | • Titanium Certified |
| • System power redundancy provided at 240V only. | |
|
System BIOS
| |
|---|---|
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | • Plug and Play (PnP) |
|
Operating Environment
| |
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) |
