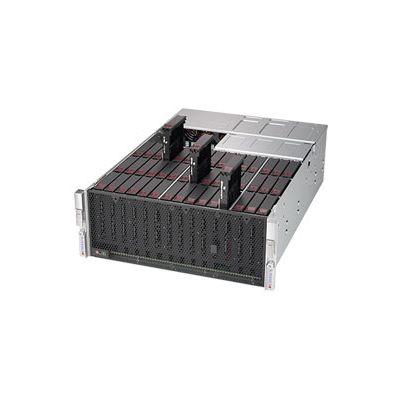

Supermicro 4U Rackmount SuperStorage SSG-5049P-E1CR45H | Intel Xeon Scalable Processors

Call for price

In stock

SKU

SSG-5049P-E1CR45H

Key Features:
• Single socket P (LGA 3647) supports Intel® Xeon®
   Scalable Processors
• Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz;
   8 DIMM slots
• 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap
   2.5" SATA drive bays; optional 2 SATA or NVMe
• 5 Hot-swap 8cm redundant PWM fans
• 1600W Redundant Power Supplies Platinum Level

Due to the complexity of integration, this product is sold as a completely assembled system only (including 1 CPU, 1 DIMM, 20 HDDs) Please contact your Will Jaya sales rep for special requirements.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Supermicro SuperStorage SSG-5049P-E1CR45H

Product SKU
SSG-5049P-E1CR45H	• SuperServer 5049P-E1CR45H (Black)

Motherboard
	Super X11SPL-F

Processor/Cache
CPU	• Single Socket P (LGA 3647) • Intel® Xeon® Scalable Processors • Support CPU TDP up to 165W
Cores	• Up to 28 Cores with Intel® HT Technology

System Memory
Memory Capacity	• 8 DIMM slots • Up to 1TB ECC 3DS LRDIMM, 256GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	• 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset	• Intel® C621 chipset
SATA	• SATA3 (6Gbps) via Intel® C621 controller • RAID 0, 1, 5, 10 support
SAS	• Broadcom 3108 SAS3, HW RAID (AOC-S3108L-H8IR-P)
Network Controllers	• Dual 1GbE LAN ports with Intel® I210
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	• ASPEED AST2500 BMC

Input/Output
LAN	• 2 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (rear)
VGA	• 1 VGA port
Serial Port/Header	• 2 COM Ports (1 rear, 1 header)

System Bios
BIOS Type	• AMI UEFI

Management
Software	• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SPM, SUM • SuperDoctor® 5 • Watch Dog

PC Health Monitoring
CPU	• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator
FAN	• Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-946LTS-R1K66P1

Dimension and Weight
Height	• 7" (178mm)
Width	• 17.2" (437mm)
Depth	• 26" (660mm)
Gross Weight	• N.A.
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • Network activity LEDs • System Overheat LED • Power fail LED

Expansion Slots
PCI-Express	• 2 PCI-E 3.0 x8 (in x16) • 3 PCI-E 3.0 x8 • 1 PCI-E 3.0 x4 (in x8) • 1 PCI-E 3.0 x4 (occupied by HBA card)
M.2	• Interface: PCIe 3.0 x4 • Form Factor: 2280, 22110

Drive Bays
Hot-Swap	• 45 Hot-swap 3.5" SAS3/SATA3 drive bays • 2 Rear Hot-swap 2.5" SATA3 drive bays
Optional	• 2 Hot-swap 2.5" NVMe/SATA drive bays (rear)

Backplane
	• SAS3 / SATA3 single expander per backplane

System Cooling
XXXXX	• XXXXX

Power Supply
	1600W 1U Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1600W
Dimension (W x H x L)	• 73.5 x 40 x 265 mm
Input	• 100-127Vac / 12.9A Max / 50-60Hz • 200-240Vac / 9.5A Max / 50-60Hz
+12V	• Max: 82A / Min: 0.1A (100-127Vac) • Max: 132A / Min: 0.1A (200-240Vac)
12V SB	• Max: 2A / Min: 0.2A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Platinum Level

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
