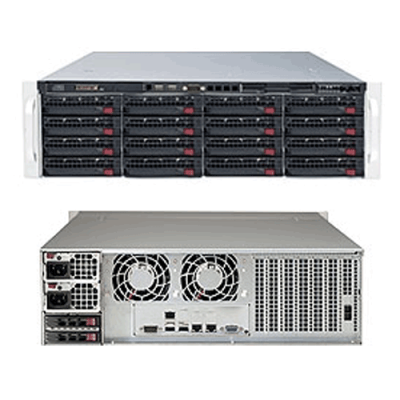

Supermicro 3U SuperStorage SSG-6038R-E1CR16H
Call for price
In stock
SKU
SSG-6038R-E1CR16H
Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 2TBECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots
• 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8 (slot 1 & 2 occupied by controller and JBOD
expansion port)
• Dual 10GBase-T LAN w/ Intel® X540
• 16x 3.5" Hot-swap SAS3/SATA3 drive bays;
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 2x 80mm hot-swap rear exhaust PWM fans
• 920W Redundant Power Supplies Platinum Level (94%)>
Supermicro SuperStorage SSG-6038R-E1CR16H
Product SKU |
|
|---|---|
| SSG-6038R-E1CR16H | SuperServer 6038R-E1CR16H (Black) |
Motherboard |
|
|---|---|
| Super X10DRH-iT | |
Processor/Cache |
|
|---|---|
| CPU | Intel® Xeon® processor E5-2600 v4€ / v3 family (up to 145W TDP) Dual Socket R3 (LGA 2011) |
| Cores / Cache | Up to 22 Cores€ / Up to 55MB€ Cache |
| System Bus | QPI up to 9.6 GT/s |
| € BIOS version 2.0 or above is required | |
| Note | Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
System Memory |
|
|---|---|
| Memory Capacity | 16x 288-pin DDR4 DIMM slots Up to 2TB€ ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | 2400€ /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | Intel® C612 chipset |
| SAS | SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID RAID 0, 1, 5, 6, 10, 50, 60 |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Network Controllers |
Dual 10GBase-T LAN with Intel® X540 Ethernet Controller Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| LAN | 2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear) 1 Type A |
| VGA | 1 VGA port |
| Serial Port / Header |
1 Fast UART 16550 port / 1 Header |
Chassis |
|
|---|---|
| Form Factor | 3U Rackmount |
| Model | CSE-836BE1C-R920B |
Dimension & Weight |
|
|---|---|
| Width | 17.2" (437mm) |
| Height | 5.2" (132mm) |
| Depth | 25.5" (648mm) |
| Gross Weight | Gross Weight: 79 lbs (35.8 kg) |
| Available Colors | Black |
Front Panel |
|
|---|---|
| Button | Power On/Off button System Reset button |
| LEDs | Power status LED Hard drive activity LED 2 Network activity LEDs System Overheat LED Power fail LED |
Expansion Slots |
|
|---|---|
| PCI-Express | 1 PCI-E 3.0 x16 slot 6 PCI-E 3.0 x8 slots Slot 1 & 2 occupied by controller and JBOD Expansion Port |
Drive Bays |
|
|---|---|
| Hot-Swap | 16x 3.5" Hot-swap SAS3/SATA3 drive bays |
| Optional | 2x 2.5" optional rear Hot-swap SATA drive bays |
Backplane |
|
|---|---|
| SAS3 12Gbps single expander backplane, w/ 16x SAS3 3.5" drive slots and 2x mini-SAS HD connectors for JBOD expansion | |
System Cooling |
|
|---|---|
| Fans | 2x 80mm hot-swap rear exhaust cooling fans Redundant cooling |
Power Supply with Power Distributor |
|
|---|---|
| 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output | 4 Amp @ +5V standby 75 Amp @ +12V |
| Certification | Platinum Certified |
System BIOS |
|
|---|---|
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
