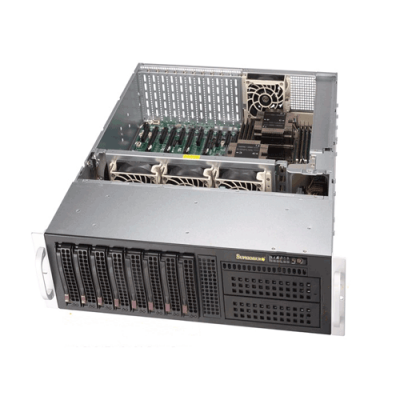

Supermicro 3U Rackmount Server SYS-6039P-TXRT
Call for price
In stock
SKU
6039P-TXRT
Key Features:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,
3 UPI up to 10.4GT/s
• Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
• 2 PCI-E 3.0 x16 slots (HSSI),
2 PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8),
4 PCI-E 3.0 x8 slots,
1 PCI-E 3.0 x4 (in x8 slot)
• 8 Hot-swap 3.5" drive bays, 2 5.25" drive bays, 1 slim DVD-ROM drive bay,
1 FDD bay
• 2x 10GBase-T LAN ports with Intel X550-AT2
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 1 PCI-E 3.0 x4 M.2 2280 slot from PCH
• 3 middle fans & 1 rear exhaust fan
• 980W Redundant Power Supplies Platinum Level (94%)
Supermicro SuperServer SYS-6039P-TXRT
Product SKU |
|
|---|---|
| SYS-6039P-TXRT | SuperServer 6039P-TXRT (Black) |
Motherboard |
|
|---|---|
| Super X11DPX-T | |
Processor/Cache |
|
|---|---|
| CPU | Dual Socket P (LGA 3647) Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s Support CPU TDP 205W |
| Cores | Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity | 16 DIMM slots Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | Intel® C621 chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| Network Controllers |
Intel® X550-AT2 Dual Port 10GBase-T |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| Serial ATA | 10 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear) |
| Serial Port / Header | 1 COM port |
| VGA | 1 VGA port |
| DOM | 2 SuperDOM (Disk on Module) ports |
| TPM | 1 TPM 2.0 Header |
System Bios |
|
|---|---|
| Bios Type | AMI UEFI |
Management |
|
|---|---|
| Software | Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5 |
| Power Configuration |
ACPI Power Management |
PC Health Monitoring |
|
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | 3U Rackmount |
| Model | CSE-835XTQ-R982B |
Dimension & Weight |
|
|---|---|
| Width | 17.2" (437mm) |
| Height | 5.2" (132mm) |
| Depth | 25.5" (648mm) |
| Gross Weight | 72 lbs (32.6kg) |
| Available Colors | Black |
Front Panel |
|
|---|---|
| Button | Power On/Off button System Reset button |
| LEDs | Power status LED Hard drive activity LED Network activity LEDs System information (overheat/UID) LED Power fail LED |
Drive Bays |
|
|---|---|
| Hot-Swap | 8 Hot-swap 3.5" drive bays |
| Others | 2 5.25" drive bays |
Peripheral Bay |
|
|---|---|
| Peripheral Bay | 1 slim DVD-ROM drive |
Backplane |
|
|---|---|
| 1 SAS/SATA backplane | |
System Cooling |
|
|---|---|
| Fans | 3 Middle fans 1 Rear exhaust fan |
Power Supply with Power Distributor |
|
|---|---|
| 850W/980W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus | |
| AC Input | 100-140 V, 50-60 Hz, 11.5-6.5 Amp 180-240 V, 50-60 Hz, 6.5-4.5 Amp |
| DC Output | 4 Amp @ +5V Standby 70 Amp @ +12V (100-140Vac) 81 Amp @ +12V (180-240Vac) |
| With Power Distributor |
+5V: 30 Amp +3.3V: 28 Amp -12V: 0.6 Amp |
| Certification | Platinum Level |
Operating Environment |
|
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. |
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
