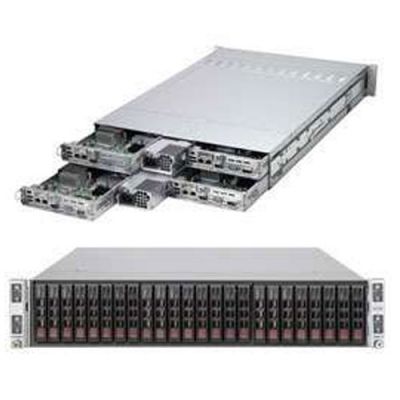

Supermicro 2U Twin2 MultiNode SYS-2027TR-H71RF+
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and
E5-2600 v2 family€
• Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
• 1x MicroLP PCI-E 3.0 x8 slot
• Intel® i350 Dual port Gigabit Ethernet
• 6x Hot-swap 2.5" SATA3/SAS2 HDD Bays
• 1620W Redundant Power Supplies Platinum Level (94%)
per node using Supermicro Super X9DRT-HF+ Server Motherboard and CSE-217HQ-R1K62MB 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-2027TR-H71RF+ | €¢ SuperServer 2027TR-H71RF+ (Black) |
Motherboard |
|
|---|---|
| Super X9DRT-HF+ | |
Processor/Cache (per node) |
|
|---|---|
| CPU | €¢ Dual Socket R (LGA 2011) €¢ Intel® Xeon® processor E5-2600 and E5-2600 v2 family€ (up to 135W TDP *) |
| Cache | €¢ Up to 30MB |
| System Bus | €¢ QPI up to 8 GT/s |
| Note | €¢ € BIOS version 3.0 or above is required |
* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
System Memory |
|
|---|---|
| Memory Capacity |
€¢ 16x 240-pin DDR3 DIMM slots €¢ Up to 1TB DDR3 ECC LRDIMM €¢ Up to 512GB DDR3 ECC Registered memory (RDIMM) |
| Memory Type |
€¢ 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | €¢ 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | €¢ 1.5 V, 1.35 V |
| Error Detection | €¢ Corrects single-bit errors €¢ Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | €¢ Intel® C602 chipset |
| SAS | €¢ LSI 2108 SAS (6Gbps) w/ Hardware RAID support €¢ RAID 0, 1, 5, 6, 10, 50, 60 support |
| SATA | €¢ SATA 2.0 & 3.0 with RAID 0, 1, 5, 10 |
| IPMI | €¢ Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | €¢ Intel® i350 Dual Port Gigabit Ethernet |
| Graphics | €¢ Matrox G200eW |
Input/Output (per node) |
|
|---|---|
| Serial ATA | €¢ 6x SATA 3.0 ports (6Gbps) |
| SAS | €¢ 6x SAS2 ports (6Gbps) |
| LAN | €¢ 2x RJ45 Gigabit Ethernet LAN ports |
| USB | €¢ 5x USB 2.0 ports total (2 rear + 2 via header + 1 Type A) |
| VGA | €¢ 1x VGA port |
| Serial Port / Header | €¢ 1x Fast UART 16550 port / 1 Header
|
Chassis |
|
|---|---|
| Form Factor | €¢ 2U Rackmount |
| Model | €¢ CSE-217HQ-R1K62MB |
Dimension and Weight |
|
|---|---|
| Height | €¢ 3.47" (88mm) |
| Width | €¢ 17.25" (438mm) |
| Depth | €¢ 26.75" (679mm) |
| Gross Weight | €¢ 85 lbs (38.6kg) |
| Available Color | €¢ Black |
Front Panel |
|
|---|---|
| Buttons |
€¢ Power On/Off button |
| LEDs | €¢ Power status LED €¢ HDD activity LED €¢ 2x Network activity LEDs €¢ Universal Information (UID) LED |
Expansion Slots (per node) |
|
|---|---|
| PCI-E |
€¢ 1 Micro Low Profile PCI-E 3.0 x8 slot MicroLP Adapter Matrix |
Drive Bays (per node) |
|
|---|---|
| Hot-swap |
€¢ 6x Hot-swap 2.5" SATA3/SAS2 HDD trays |
System Cooling |
|
|---|---|
| Fans |
€¢ 4x 8cm heavy duty PWM fans with optimal fan speed control |
Power Supply |
|
|---|---|
| 1620W high-efficiency redundant power supply w/ PMBus | |
| AC Input | €¢ 1000W Output @ 100-120V, 12-10A, 50-60Hz €¢ 1200W Output @ 120-140V, 12-10A, 50-60Hz €¢ 1620W Output @ 180-240V, 10.5-8A, 50-60Hz |
| DC Output | €¢ 1000W: +12V/84A; +5Vsb/4A €¢ 1200W: +12V/100A; +5Vsb/4A €¢ 1620W: +12V/150A; +5Vsb/4A |
| Certification | €¢ Platinum Certified (94%) |
System Bios |
|
|---|---|
| Bios Type |
€¢ 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | €¢ Plug and Play (PnP) €¢ APM 1.2 €¢ PCI 2.2 €¢ ACPI 1.0 / 2.0 €¢ USB Keyboard support €¢ SMBIOS 2.3 €¢ UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | €¢ RoHS Compliant |
| Environmental Spec. |
€¢ Operating Temperature:
10°C to 35°C (50°F to 95°F) |
