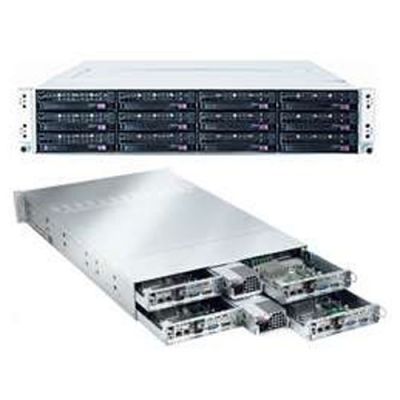

Supermicro 2U Twin2 MultiNode Server SYS-5026Ti-BTRF

Call for price

In stock

SKU

SYS-5026Ti-BTRF

Key Features:
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Intel® Xeon® X3400 / L3400 series, Core„¢ i3 & Pentium®
processors with LGA 1156 socket
• Up to 32GB DDR3 1333/1066/800MHz ECC Registered DIMM
or 16GB Unbuffered DIMM
• 1 (x16) PCI-E 2.0 (Low Profile)
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Dual Intel® 82574L Gigabit Ethernet Controllers
• 3x Hot-swap SATA Drive Bays
• 920W Platinum Level 94% efficiency Redundant (1+1) power supplies

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SuperServer SYS-5026Ti-BTRF 2U Rackmount

Supermicro SYS-5026Ti-BTRF 2U Rackmount Barebone with 920W Platinum Level 94% efficiency Redundant power supply,Intel® 3420 chipset, 3x 3.5" SATA Hot-swap drive bays
using Supermicro 4x Super X8SIT-F motherboard and CSE-827H-R920B Chassis.

Product SKU
SYS-5026Ti-BTRF	SuperServer 5026Ti-BTRF (Black)

Motherboard
	4x Super X8SIT-F

Processor/Cache
CPU	LGA 1156 Socket Intel® Xeon® X3400 series Intel® Xeon® L3400 series Intel® Core„¢ i3 Intel® Pentium® G6950 Intel® Celeron® G1101

System Memory
Memory Capacity	6x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) in 6 DIMM sockets Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) in 4 DIMM sockets 1333 / 1066 / 800 MHz Dual Core processors of Ci3 and Pentium: support ECC UDIMM only Note: Supports 1-Gb and 2-Gb x8 devices only - Intel 3420 / 3400 Chipset Memory Requirements
Note	All X3400 series and L3426 CPU support RDIMM and UDIMM All i3 series, L3406, G6950, and G1101 CPU support UDIMM only
Memory Type	1333 / 1066 / 800 MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	1GB, 2GB, 4GB, 8GB
Memory Voltage	1.5 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices (per node)
Chipset	Intel® 3420 chipset
SATA	6x SATA (3 Gbps) RAID 0, 1, 5 support (Windows) RAID 0, 1 support (Linux)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Dual Intel® 82574L Gigabit Ethernet Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA	Matrox G200eW 16MB DDR2
Super I/O	Nuvoton W83627DHG UBE

Input/Output (per node)
Serial ATA	Six Serial ATA ports 3 SATA hard drives supported
LAN	2x RJ45 LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB rear ports 1x USB on-board 2x USB internal header (4 ports) Total 7 USB 2.0 Compliant
VGA	1x VGA port
Serial Port / Header	1 Fast UART 16550 serial port

System Bios (per node)
Bios Type	32Mb SPI Flash EEPROM with AMI BIOS
Bios Features	Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard support

System Bios (per node)

Bios Type

32Mb SPI Flash EEPROM with AMI BIOS

Bios Features

Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support

Chassis
Form Factor	2U Rackmount
Model	CSE-827H-R920B

Dimension and Weight
Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	28.5" (724mm)
Weight	85 lbs (38.6kg)
Available Color	Black

Front Panel (per node)
Buttons	Power On/Off button UID button
LED	Power LED (on power button) Network activity LED System Overheat/fan fail/power fail/ LED UID LED (on UID button)

Expansionn Slot (per node)
PCI-Express	1 (x16) PCI-E 2.0 (Low Profile)

Drive Bays (per node)
Hot-swap	3x 3.5" SATA Hot-swap drive bays

Hard Drive Backplane
	2U Hard drive Backplane

System Cooling
Fans	4x Cooling Fans

Power Supply with Power Distributor
	920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input	100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output	4 Amp @ +5V standby 75 Amp @ +12V
With Power Distributor	+5V: 30 Amp
Cerification	Platinum Certified

PC Health Monitoring
CPU	Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	Total of 5 fan headers supporting up to 5 fans Five 4-pin fan headers 5x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Support 3-pin fans (w/o speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support FC temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED +5V Standby alert LED

Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°to 35°C (50°to 95°F) Non-operating Temperature: -40°to 70°C (-40°to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing)
