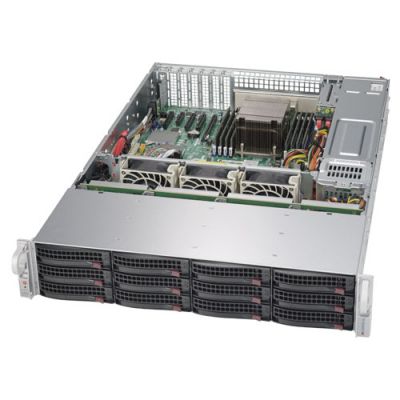

Supermicro 2U SuperStorage Rackmount Server SSG-5028R-E1CR12L
Key Features:
• Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4€ /
v3 family; QPI up to 9.6GT/s
• Up to 1TB€ ECC 3DS LRDIMM , up to DDR4- 2400€ MHz ; 8x DIMM slots
• 1 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 2.0 x2
(in x4), 1 PCI-E 2.0 x4 (in x8)
• Intel® i350-AM4 Quad port GbE LAN
• 12x 3.5" Hot-swap SAS3 HDD bays; Opt. 2x 2.5" Hot-swap HDD bays (rear)
• SAS3 via LSI 3008 controller; IR mode
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 3x 8cm high-performance PWM fans
• 920W Redundant Power Supplies Platinum Level (94%)
• Dual JBOD expansion ports
Super X10SRH-CLN4F Server Motherboard and CSE-826BE1C-R920LPB 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SSG-5028R-E1CR12L | SuperServer 5028R-E1CR12L (Black) |
Motherboard |
|
|---|---|
| Super X10SRH-CLN4F | |
Processor/Cache |
|
|---|---|
| CPU | Intel® Xeon® processor E5-2600 v4€ / v3, E5-1600 v4€ / v3 family (up to 145W TDP **) |
| Core / Cache | Up to 22 Cores€ / Up to 55MB€ Cache |
| Note | € BIOS version 2.0 or above is required ** Motherboard supports this maximum TDP. Please verify your system can thermally support |
System Memory |
|
|---|---|
| Memory Capacity |
8x 288-pin DDR4 DIMM slots Up to 1TB ECC 3DS LRDIMM Up to 512GB ECC LRDIMM Up to 256GB ECC RDIMM |
| Memory Type | 2400€ / 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
| DIMM Sizes | 3DS LRDIMM: 128GB LRDIMM: 64GB, 32GB RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | Intel® C602 chipset |
| SAS | SAS3 (12Gbps) via LSI 3008 (IR mode) SW RAID 0, 1, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | Intel® i350 Dual-Port Gigabit Ethernet Controller |
| Video | ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| LAN | 4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port |
| USB | 2x USB 3.0 ports (rear) 2x USB 2.0 ports (rear) |
| VGA | 1x VGA port |
| Serial Port/Header | 1x Fast UART 16550 port / 1 Header
|
Chassis |
|
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-826BE1C-R920LPB |
Dimension and Weight |
|
|---|---|
| Height | 3.5" (89mm) |
| Width | 17.2" (437mm) |
| Depth | 25.6" (648mm) |
| Weight | 58 lbs (26.3 kg) |
| Available Color | Black |
Front Panel |
|
|---|---|
| Buttons |
Power On/Off button System Reset button |
| LED | Power status LED HDD activity LED 2x Network activity LEDs System Overheat LED Power fail LED |
Expansion Slots |
|
|---|---|
| PCI-Express | 1x PCI-E 3.0 x4 (in x8) slot 1x PCI-E 3.0 x8 (in x16) slot 2x PCI-E 3.0 x8 slots 1x PCI-E 2.0 x2 (in x4) slot 1x PCI-E 2.0 x4 (in x8) slot |
Drive Bays |
|
|---|---|
| Hot-Swaps | 12x 3.5" Hot-swap SAS3 HDD bays |
| Optional | 2x 2.5" Hot-swap HDD bays (rear) |
Backplane |
|
|---|---|
| SAS3 Backplane: SAS3 12Gbps single expander backplane, w/ LSISAS3x28 expander, support 12x 3.5" drives, with 4x mini-SAS HD connectors, 2 for uplink and another 2 for downlink |
|
System Cooling |
|
|---|---|
| Fans | 3x 8cm 9.5K RPM, 4-pin PWM fans |
Power Supply |
|
|---|---|
| 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output | 4 Amp @ +5V standby 75 Amp @ +12V |
| Certification | Platinum Certified (94%) |
System Bios |
|
|---|---|
| Bios Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature:
5°C to 35°C (41°F to 95°F) |
