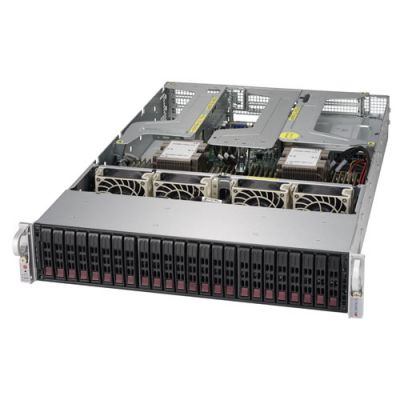

Supermicro 2U Rackmount UltraServer SYS-2029U-TR25M NVME
Call for price
In stock
SKU
SYS-2029U-TR25M
Key Features:
• Flexible Networking Options
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,Dual UPI up to 10.4GT/s
• Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
5 PCI-E 3.0 x8 slots (FH, 10.5" L),
1 PCI-E 3.0 x8 slot (LP),
1 PCI-E 3.0 x8 slot (internal LP)
• 2 25GbE SFP28 Ethernet ports
• 24 Hot-swap 2.5" Drive Bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3)
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)
• Flexible Networking Options
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,Dual UPI up to 10.4GT/s
• Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
5 PCI-E 3.0 x8 slots (FH, 10.5" L),
1 PCI-E 3.0 x8 slot (LP),
1 PCI-E 3.0 x8 slot (internal LP)
• 2 25GbE SFP28 Ethernet ports
• 24 Hot-swap 2.5" Drive Bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3)
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)
Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 2 DIMM, 1 HDD/NVMe and 1 SIOM card per node). Please contact your Will Jaya sales rep for special requirements.
Supermicro SuperServer SYS-2029U-TR25M
Product SKU |
|
|---|---|
| SYS-2029U-TR25M | SuperServer 2029U-TR25M (Black) |
Motherboard |
|
|---|---|
| Super X11DPU | |
Processor/Cache |
|
|---|---|
| CPU | Dual Socket P (LGA 3647) Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s Support CPU TDP 70-205W |
| Cores | Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
24 DIMM slots Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | Intel® C621 chipset |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Connectivity |
2 25GbE SFP28 ports via AOC-2UR68-M2TS-O (Mellanox ConnectX-4 Lx EN) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA | 14 SATA3 (6Gbps) ports |
| LAN | 2 25GbE SFP28 ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 5 USB 3.0 ports (2 rear, 2 onboard header, 1 Type A) |
| Video | 1 VGA Connector |
| Serial Port | 1 Serial header |
| DOM | 2 SuperDOM (Disk on Module) ports |
System BIOS |
|
|---|---|
| BIOS Type | AMI 32Mb SPI Flash ROM |
Management |
|
|---|---|
| Software |
Intel® Node Manager Redfish API IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5 |
| Power Configurations | ACPI Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-219U2AC4-R1K02-T |
Dimension and Weight |
|
|---|---|
| Height | 3.5" (89mm) |
| Width | 17.2" (437mm) |
| Depth | 27.76" (705mm) |
| Gross Weight | 72 lbs (32.7 kg) |
| Available Color | Black |
Front Panel |
|
|---|---|
| Buttons |
Power On/Off button System Reset button |
| LED |
Power status LED Hard drive activity LED Network activity LEDs System information (overheat/UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
1 PCI-E 3.0 x16 (FH, 10.5" L) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
|---|---|
| Hot-swap |
24 Hot-swap 2.5" drive bays;
|
Backplane |
|
|---|---|
| 2U SAS/SATA backplane | |
System Cooling |
|
|---|---|
| Fans | 4 Heavy duty 8cm PWM fans |
Power Supply |
|
|---|---|
| 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W/1000W |
| Dimension
(W x H x L) |
73.5 x 40 x 203 mm |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz 200-240Vac / 7 - 5A / 50-60Hz |
| +12V | Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac) |
| 12Vsb | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | 80 Plus Titanium Level |
Operating Environment / Compliance |
|
|---|---|
| RoHS | RoHS Compliant |
Environmental Spec. |
Operating Temperature:
10°C to 35°C (50°F to 95°F) |
