Supermicro 2U Rackmount Twin2 Server SYS-6026TT-IBQF

Call for price

In stock

SKU

SYS-6026TT-IBQF

Key Features:
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
• Up to 192GB** DDR3 1333/ 1066/ 800MHz ECC Registered DIMM / 48GB
Unbuffered DIMM
• 1 (x16) PCI-E 2.0 (Low Profile)
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Mellanox ConnectX QDR Infiniband 40Gbps Controller w/ QSFP connector
• Intel® 82576 Dual-Port Gigabit Ethernet Controller
• 3x Hot-swap SATA Drive Bays
• 1400W Gold-level High-efficiency Redundant Power Supply

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

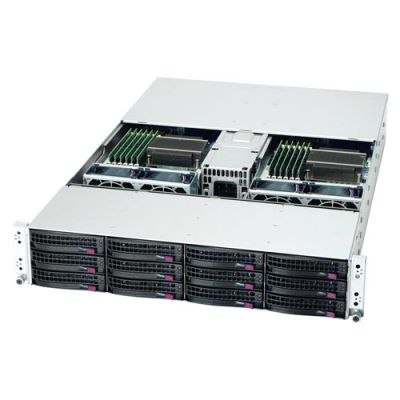

SuperServer SYS-6026TT-IBQF 2U Rackmount

Supermicro SYS-6026TT-IBQF 2U Rackmount Barebone with 1400W Gold-level High-efficiency Redundant Power Supplies, Intel® 5520 (Tylersburg) chipset, 3x 3.5" SATA Hot-swap
drive bays using Supermicro 4x Super X8DTT-IBQF Motherboard and CSE-827T-1400B 2U Chassis.

Product SKU
SYS-6026TT-IBQF	€¢ SuperServer 6026TT-IBQF (Black)

Motherboard
	4x Super X8DTT-IBQF

Processor/Cache
CPU	€¢ Dual 1366-pin LGA Sockets €¢ Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: €¢ Intel® Xeon® Processor X5600/E5600/L5600 Series (Westmere) 40W - 95W €¢ Intel® Xeon® Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
QPI	€¢ up to 6.4 GT/s

System Memory
Memory Capacity	€¢ 12x 240-pin DIMM slots €¢ Supports up to 192 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory €¢ Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory €¢ Memory Mirroring supported
Memory Type	€¢ 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	€¢ 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage	€¢ 1.5 V / 1.35 V
Error Detection	€¢ Corrects single-bit errors €¢ Detects double-bit errors (using ECC memory) €¢ Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices (per node)
Infiniband	€¢ Mellanox ConnectX QDR Infiniband 40Gbps Controller
Chipset	€¢ Intel® 5520 (Tylersburg) chipset €¢ ICH10R + IOH-36D
SATA	€¢ Intel ICH10R SATA 3.0Gbps Controller €¢ RAID 0, 1, 5, 10 support
IPMI	€¢ Support for Intelligent Platform Management Interface v.2.0 €¢ IPMI 2.0 with virtual media over LAN and KVM-over-LAN support €¢ Nuvoton WPCM450 BMC
Network Controllers	€¢ Intel® 82576 Dual-Port Gigabit Ethernet Controller €¢ Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output €¢ Intel® I/OAT 3 support for fast, scaleable, and reliable networking €¢ VMDq support for better performance of virtualization €¢ 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	€¢ Matrox G200eW
Super I/O	€¢ Winbond W83527HG chip
Clock Generator	€¢ 932S421 chip

Input/Output (per node)
Serial ATA	€¢ Six Serial ATA ports €¢ 3 SATA hard drives supported
LAN	€¢ 2x RJ45 LAN ports €¢ 1x RJ45 Dedicated IPMI LAN port
USB	€¢ 2 rear + 1 header (2 Ports) €¢ 4 total USB ports, 2.0 Compliant / 1.1 Compliant
VGA	€¢ 1 VGA port
Serial Port	€¢ 1 Fast UART 16550 serial port
Infiniband	€¢ 1 External QSFP Infiniband Connector

System Bios (per node)
Bios Type	€¢ 32Mb SPI Flash EEPROM with AMI® BIOS
Bios Features	€¢ Plug and Play (PnP) €¢ PCI 2.2 €¢ ACPI up to 3.0 €¢ USB Keyboard support

System Bios (per node)

Bios Type

€¢ 32Mb SPI Flash EEPROM with AMI® BIOS

Bios Features

€¢ Plug and Play (PnP)
€¢ PCI 2.2
€¢ ACPI up to 3.0
€¢ USB Keyboard support

Chassis
Form Factor	€¢ 2U Rackmount
Model	€¢ CSE-827T-1400B

Dimension and Weight
Height	€¢ 3.5" (89mm)
Width	€¢ 17.25" (438mm)
Depth	€¢ 28.5" (724mm)
Weight	€¢ 85 lbs (38.6kg)
Available Color	€¢ Black

Front Panel (per node)
Buttons	€¢ Power On/Off button €¢ UID button
LED	€¢ Power LED (on power button) €¢ UID LED (on UID button) €¢ Network activity LED €¢ System Overheat/fan fail/power fail/ LED

Expansion Slot (per node)
PCI-Express	€¢ 1 (x16) PCI-E ( Low Profile)

Drive Bays (per node)
Hot-Swaps	€¢ 3x 3.5" SATA Hot-swap drive bays

Hard Drive Backplane
	€¢ 2U Hard drive Backplane

System Cooling
Fans	€¢ 4x Cooling Fans

Power Supply
	1400W high-efficiency (1+1) redundant power supply with PMBus
AC Input	€¢ 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz €¢ 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz
DC Output	€¢ 1100W: +12V/92A; +5Vsb/4A €¢ 1400W: +12V/116A; +5Vsb/4A
With Ditributor	€¢ +5V: 30 Amp €¢ +3.3V: 24 Amp €¢ -12V: 0.6 Amp
Certification	€¢ Gold Certified

PC Health Monitoring
CPU	€¢ Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. €¢ CPU Core 6-Phase-switching voltage regulator
FAN	€¢ Total of four 4-pin PWM fans €¢ 4x fans with tachometer monitoring €¢ Status monitor for speed control €¢ Status monitor for on/off control €¢ Low noise fan speed control
Temperature	€¢ Monitoring for CPU and chassis environment €¢ CPU thermal trip support €¢ Thermal Control for 4x Fan Connectors €¢ PSU I2C temperature sensing logic €¢ Thermal Monitor 2 (TM2) support €¢ PECI
LED	€¢ Power Fail / Overheat LED €¢ Suspend-state Indicator LED €¢ UID LED
Other Features	€¢ SDDC Support

Operating Environment / Compliance
RoHS	€¢ RoHS Compliant
Environmental Spec.	€¢ Operating Temperature: 5°C to 35°C (41°F to 95°F) €¢ Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) €¢ Operating Relative Humidity: 8% to 90% (non-condensing) €¢ Non-operating Relative Humidity: 5% to 95% (non-condensing)
