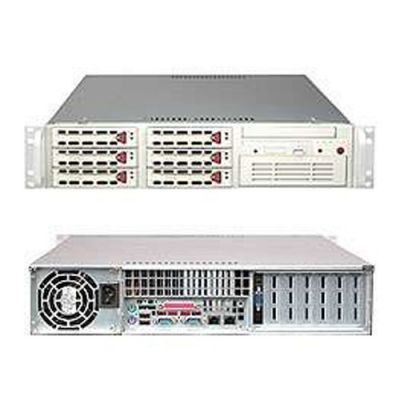

Supermicro 2U Rackmount SYS-6024H-82R+B
Call for price
In stock
SKU
SYS-6024H-82R+B
Key Features:
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR2-400 SDRAM
• 3 Full-height, Full-length Expansion Slots
1x 64-bit 133MHz PCI-X
2x 64-bit 100MHz PCI-X
• Intel® 82546GB Dual-port Gigabit Ethernet Controllers
• 6 x 3.5" hot-swap Ultra320/160 SCSI Drive Bays
• Redundant 500W power supply with I2C for remote management.
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR2-400 SDRAM
• 3 Full-height, Full-length Expansion Slots
1x 64-bit 133MHz PCI-X
2x 64-bit 100MHz PCI-X
• Intel® 82546GB Dual-port Gigabit Ethernet Controllers
• 6 x 3.5" hot-swap Ultra320/160 SCSI Drive Bays
• Redundant 500W power supply with I2C for remote management.
SuperServer SYS-6024H-82R+ / SYS-6024H-82R+B 2U Rackmount
Supermicro SYS-6024H-82R+ / SYS-6024H-82R+B 2U Rackmount Barebone with Redundant 500W power supply, Intel® E7520 chipset, 6x 3.5" SCA Hot-swap drive trays using
Supermicro Super X6DH8-G2+ mother board and SC823S-R500RC Chassis.
Supermicro Super X6DH8-G2+ mother board and SC823S-R500RC Chassis.
Product SKU |
|
|---|---|
| SYS-6024H-82R+ | SuperServer 6024H-82R+ (Beige) |
| SYS-6024H-82R+B | SuperServer 6024H-82R+B (Black) |
Motherboard |
|
|---|---|
| Super X6DH8-G2+ | |
Processor/Cache |
|
|---|---|
| CPU | Dual 604-pin FC-mPGA4 Sockets |
| System Bus | 800 MHz system bus |
| OS Software | Supports 64-bit Operating Systems Supports 32-bit Operating Systems |
System Memory |
|
|---|---|
| Memory Capacity |
Eight 240-pin DIMM sockets Supports up to 16 GB DDR2 400MHz memory Dual channel memory bus Memory must be populated in pairs Single-rank modules are recommended for 6+ DIMM support |
| Memory Type | DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 256 MB, 512 MB, 1GB, 2GB |
| Memory Voltage | 1.8V only |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | Intel® E7520 chipset MCH + ICH5R + PXH +82546GB |
| SCSI | Adaptec AIC-7902 Controller Dual-Channel Ultra320 SCSI Host RAID 0, 1, 10, JBOD support No Zero Channel RAID Support |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | Intel® 82546GB Dual Port Gigabit Controller |
| Graphics | ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
| Super I/O | National 87427 chip |
Input/Output |
|
|---|---|
| IDE | Dual EIDE channels support up to four UDMA IDE devices Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| Floppy | 1 Floppy controller; 1.44 MB, 2.88 MB |
| LAN | 2x RJ45 LAN port |
| USB | 2x USB rear ports 2x USB internal headers USB 2.0 Compliant / 1.1 Compliant |
| VGA | 1x VGA Port |
| Keyboard / Mouse | PS/2 keyboard and mouse ports |
| Serial Port / Header | 1 Fast UART 16550 serial ports |
| Parallel Port | 1 ECP/EEP parallel port |
System Bios |
|
|---|---|
| Bios Type | 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | Plug and Play (PnP) SMBIOS 2.3 DMI 2.1 ACPI 1.0 Fan Speed Control |
Chassis |
|
|---|---|
| Form Factor | 2U Rackmount |
| Model | SC823S-R500RC |
Dimension and Weight |
|
|---|---|
| Height | 3.5" (89mm) |
| Width | 16.8" (426mm) |
| Depth | 25.6" (650mm) |
| Weight | 57.5 lbs (26.1kg) |
| Available Color | Beige,Black |
Front Panel |
|
|---|---|
| Buttons |
Power On/Off button System Reset button |
| LED | Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED Power fail LED |
| Ports | 2x USB Ports (optional) |
Expansion Slot |
|
|---|---|
| PCI-X | 1x 64-bit 133MHz PCI-X (3.3V) slot 2x 64-bit 100MHz PCI-X (3.3V) slots (Via Riser Cards) |
Drive Bays |
|
|---|---|
| Hot-swap | 6x 3.5" SCA Hot-swap drive trays |
| Peripheral Bay(s) | 1x 5.25" full-height peripheral bay |
Peripheral Drives |
|
|---|---|
| Floppy | Panasonic 3.5" 1.44MB Floppy Drive |
| CD-Rom | TEAC Slim 24x CD-ROM drive |
SCA Backplane |
|
|---|---|
| SCA Backplane Single Channel SCSI backplane with SAF-TE | |
System Cooling |
|
|---|---|
| Fans | 4x 80mm 6300 RPM fans Cooling redundancy with fan shroud |
Power Supply |
|
|---|---|
| 500W (1 + 1) Redundant AC power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V) ] | |
| AC Voltage | 100 - 240V, 50/60Hz, 10 Amp |
| DC Output | 5V + 3.3V ≤ 160W 12V Total ≤ 39 Amp |
| +5V | 30.0 amp |
| +5V standby | 2.0 Amp |
| +12V1 | 15.0 amp |
| +12V2 | 15.0 amp |
| +12V3 | 18.0 amp |
| -12V | 1.0 Amp |
| +3.3V | 21.0 amp |
PC Health Monitoring |
|
|---|---|
| CPU | Monitors for CPU Cores, +3.3V, +5V, ±12V & +3.3V Standby CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.86V-1.63V |
| FAN | Total of four 4-pin and four 3-pin fan headers 8x fans with status monitoring Status monitor with firmware/software on/off control Low noise fan speed control 4x Pulse Width Modulated (PWM) fan connector |
| Temperature | Monitoring for CPU, chassis, environment CPU thermal trip support Thermal Monitor 2 support |
| LED | CPU Overheat LED System Overheat LED Suspend-state indicator LED |
| Other Features | Chassis intrusion detection
|
