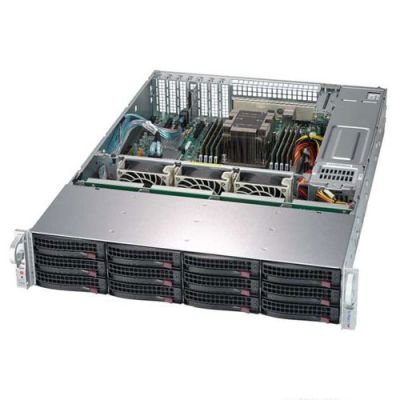

Supermicro 2U Rackmount SuperStorage SSG-5029P-E1CTR12L
Key Features:
• Application and Dta Serving
• Connectivity/Storage Compute Nodes
• High Availability Storage Appliance Platform
• Single socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
• Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8 DIMM slots
• 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
• 2x 10GBase-T with Intel® X557
• 12 Hot-swap 3.5" SAS/SATA drive bays with SES3; 2 Hot-swap 2.5" NVMe/SATA (rear, optional)
• SAS3 via Broadcom 3008 controller
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 3 High-performance 80mm PWM fans
• 800W Redundant Power Supplies Titanium Level (96%)
Product SKU |
|
|---|---|
| SSG-5029P-E1CTR12L | SuperServer 5029P-E1CTR12L (Black) |
Motherboard |
|
|---|---|
| Super X11SPH-nCTF | |
Processor/Cache |
|
|---|---|
| CPU | Single Socket P (LGA 3647) Intel® Xeon® Scalable Processors Support CPU TDP 70-205W |
| Cores | Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
8 DIMM slots Up to 1TB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | Intel® C622 chipset |
| SATA | SATA3 (6Gbps) via C622 controller RAID 0, 1, 5, 10 support |
| SAS | SAS3 (12Gbps) via Broadcom 3008 SW RAID 0, 1, 10 |
| Network Connectivity |
Dual LAN with 10GBase-T with Intel® X722 + X557 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA | 10 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 10GBase-T LAN ports 1 RJ45 dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear) |
| VGA | 1 VGA port |
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) |
System BIOS |
|
|---|---|
| BIOS Type | AMI UEFI |
Management |
|
|---|---|
| Software |
Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM,SPM,SUM SuperDoctor® 5 Watchdog |
| Power Configurations | ACPI Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature |
Monitoring for CPU and chassis environment Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-826BE1C-R802LPB |
Dimension and Weight |
|
|---|---|
| Height | 3.5" (89mm) |
| Width | 17.2" (437mm) |
| Depth | 25.6" (650mm) |
| Gross Weight | 58 lbs (26.3 kg) |
| Available Color | Black |
Front Panel |
|
|---|---|
| Buttons |
Power On/Off button System Reset button |
| LED |
Power status LED Hard drive activity LED Network activity LEDs System Overheat LED Power fail LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
1 PCI-E 3.0 x16 |
Drive Bays/Storage |
|
|---|---|
| Hot-swap |
12 Hot-swap 3.5" SAS/SATA drive bays with SES3 |
| Optional | 2 Hot-swap 2.5" NVMe/SATA drive bays (rear) |
| M.2 | Interface: PCIe 3.0 x4 Form Factor: 2280 |
Backplane |
|
|---|---|
| SAS3 Backplane: SAS3 12Gbps single expander backplane, w/ LSISAS3x28 expander, support 12x 3.5" drives, with 4x mini-SAS HD connectors, 2 for uplink and another 2 for downlink | |
System Cooling |
|
|---|---|
| Fans | 3 High-performance 80mm PWM fans |
Power Supply (76mm Width) |
|
|---|---|
| 800W Redundant Power Supplies with PMBus | |
| Total Output Power |
800W |
| Dimension
(W x H x L) |
76 x 40 x 336 mm |
| Input | 800W: 100-240Vac / 50-60Hz 800W: 200-240Vac / 50-60Hz |
| +12V | Max: 66A / Min: 0A (100-240Vac) Max: 66A / Min: 0A (200-240Vdc) |
| +5Vsb | Max: 4A / Min: 0A |
| Output Type | Gold Finger |
| Certification | 80 Plus Titanium Level |
Operating Environment |
|
|---|---|
| RoHS | RoHS Compliant |
Environmental Spec. |
Operating Temperature:
10°C to 35°C (50°F to 95°F) |
