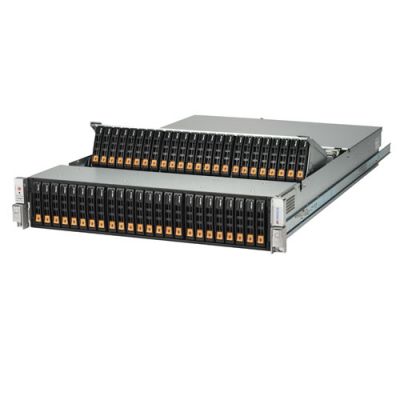

Supermicro 2U Rackmount SuperStorage SSG-2028R-NR48N
Call for price
In stock
SKU
SSG-2028R-NR48N
Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4€ / v3
family; QPI up to 9.6GT/s
• Up to 3TB€ ECC 3DS LRDIMM , up to DDR4- 2400€ MHz ; 24x
DIMM slots
• 2x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots
• SIOM for flexible networking options
• 48x 2.5" Hot-swap NVMe drive bays; 2x 2.5" rear Hot-swap SATA
drive bays
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 5x 8cm hot-swap redundant PWM fans
• 1600W Redundant Power Supplies Titanium Level (96%)
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4€ / v3
family; QPI up to 9.6GT/s
• Up to 3TB€ ECC 3DS LRDIMM , up to DDR4- 2400€ MHz ; 24x
DIMM slots
• 2x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots
• SIOM for flexible networking options
• 48x 2.5" Hot-swap NVMe drive bays; 2x 2.5" rear Hot-swap SATA
drive bays
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 5x 8cm hot-swap redundant PWM fans
• 1600W Redundant Power Supplies Titanium Level (96%)
Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 24 NVMe and 1 NIC or SIOM card).
SuperServer SSG-2028R-NR48N
Supermiro SSG-2028R-NR48N 2U Storage Rackmount Server Barebone with 1600W Redundant Power Supplies Titanium Level, Intel Xeon E5-2600 v3 family,48x 2.5" Hot-swap NVMe
bays; 2x 2.5" Hot-swap drive bays
bays; 2x 2.5" Hot-swap drive bays
Product SKU |
|
|---|---|
| SSG-2028R-NR48N | SuperServer 2028R-NR48N (Black) |
Motherboard |
|
|---|---|
| Super X10DSC+ | |
Processor/Cache |
|
|---|---|
| CPU | Intel® Xeon® processor E5-2600 v4€ / v3 family (up to 145W TDP) * |
| Cores/Cache | Up to 22 Cores€ / Up to 55MB€ Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | € BIOS version 2.0 or above is required |
* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
System Memory |
|
|---|---|
| Memory Capacity |
24x 288-pin DDR4 DIMM slots Up to 3TB€ ECC 3DS LRDIMM, 768GB ECC RDIMM |
| Memory Type | 2400€ /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | Intel® C612 chipset |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Network Controllers | SIOM support for flexible networking options |
| Graphics | ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| LAN | LAN ports via SIOM Add-On-Card: (See SIOM Compatibility Matrix) |
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) |
| Video | 1x VGA Connector |
| Serial Port/Header | 1 Fast UART 16550 port / 1 Header
|
Chassis |
|
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-226STS-R1K62P1 |
Dimension and Weight |
|
|---|---|
| Height | 3.5" (89mm) |
| Width | 17.2" (437mm) |
| Depth | 30.2" (767mm); With Cable Management Arm Installed: 35.2" (895mm) |
Front Panel |
|
|---|---|
| Buttons |
Power On/Off button System Reset button |
| LED | Power status LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power fail LED |
Expansion Slot |
|
|---|---|
| PCI-Express | 2 PCI-E 3.0 x16 slots 1 PCI-E 3.0 x8 slots Slot 3 Occupied by NVMe AOC |
Drive Bays |
|
|---|---|
| Hot-Swaps | 48x 2.5" Hot-swap NVMe drive bays 2x 2.5" rear Hot-swap SATA drive bays |
Backplane |
|
|---|---|
| Two 24 port NVMe backplanes, each supporting up to 24x 2.5" NVMe SSDs | |
System Cooling |
|
|---|---|
| Fans | 5x 8cm hot-swap redundant PWM cooling fans |
Power Supply |
|
|---|---|
| 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1600W |
| Dimension (W x H x L) |
73.5 x 40 x 203 mm |
| Input | 100-127Vac / 13 - 9A / 50-60Hz 200-240Vac / 10 - 8A / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100-127Vac) Max: 133A / Min: 0A (200-240Vac) |
| 12Vsb | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
System Bios |
|
|---|---|
| Bios Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature:
10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
