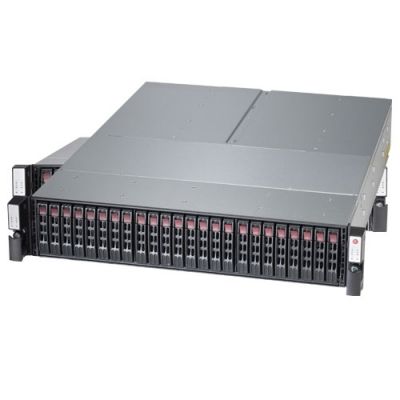

Supermicro 2U Rackmount Storage Bridge Bay SSG-2027B-DE2R24L

Call for price

In stock

SKU

SSG-2027B-DE2R24L

Key Features:
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket B2 (LGA 1356) supports Intel® Xeon® processor E5-2400 v2
• Up to 192GB DDR3 1600MHz ECC reg. DIMM; 6x DIMM slots (3 per CPU)
• 3x PCI-E 3.0 slots per node (can be used for host or storage expansion)
• I/O ports: 2 GbE LAN (1 for IPMI 2.0 w/ Virtual Media/KVM over LAN),
   SAS 2.0 (6Gbps) x1 JBOD ports
• Dedicated node to node connectivity featuring high performance
   PCI-E 3.0 x8 and IPMI for robust node fail-over support
•24x Hot-swap 2.5" SAS2 HDD bays Internal 2x SAS/SATA ports for OS load on
   SLC SATA DOM
• 920W Redundant Power Supplies Platinum Level Certified

Due to the complexity of integration, this product is sold as completely assembled systems only (including 4 CPU, 4 DIMMs, 1 HDD). Please contact yourWill Jaya sales rep for special requirements.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SuperServer SSG-2027B-DE2R24L

Supermicro 2027B-DE2R24L 2U Rackmount Barebone with 920W Redundant Power Supplies Platinum Level Certified, Intel® C602J chipset support 12x Hot-swap 2.5" SAS2 HDD
bays Internal 1x SAS/SATA ports for OS load on SLC SATA DOM per node using Supermicro Super X9DBS-F-2U Server Motherboard and CSE-927ETS 2U Rackmount Chassis.

Product SKU
SSG-2027B-DE2R24L	SuperStorage 2027B-DE2R24L (Black)

Motherboard
	2x Super X9DBS-F-2U

Processor/Cache
CPU	Dual Socket B2 (LGA 1356) IIntel® Xeon® processor E5-2400 v2 Up to 95W TDP
Cache	Up to 25MB
System Bus	QPI up to 8 GT/s

System Memory (per Node)
Memory Capacity	6x 240-pin DIMM slots Supports up to 192GB DDR3 ECC Registered memory Memory Mirroring supported
Memory Type	1866/1600/1333/1066/800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs NVDIMM support. (Not all vendor's NVDIMM are supported. Please contact your sales representative for details)
DIMM Sizes	1GB, 2GB, 4GB , 8GB , 16GB , 32GB
Memory Voltage	1.5 V / 1.35V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	Intel® C602J chipset
SAS/SATA*	SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1
SAS2 Expander	SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Intel® i350 Dual-Port Gigabit Ethernet Controller Intel® I/OAT 3 support for fast, scaleable, and reliable networking VMDq support for better performance of virtualization
Graphics	Matrox G200eW 16 MB DDR2
Super I/O	Winbond 83527HF chip
Others	PCI-E 3.0 x8 node to node/NTB connectivity PLX Technology PEX8717; PLX ExpressNIC SDK available from PLX. NDA required

Expansion Slots (per Node)
PCI-Express	3x PCI-E 3.0 x8 slots (on riser)

Input/Output (per Node)
SAS	1x JBOD expansion port per node (mini-SAS HD)
LAN	2x RJ45 LAN ports
USB	2x USB rear ports (via KVM cable) 1x USB on-board (TypeA)
VGA	1x VGA Port (via KVM cable)
Serial Port/Header	1x console port (via KVM cable); Board to Board serial port connection available for management

System Bios
Bios Type	16MB SPI Flash EEPROM with AMI® BIOS
Bios Features	Plug and Play (PnP) PCI 2.3 ACPI up to 5.0 USB Keyboard support

System Bios

Bios Type

16MB SPI Flash EEPROM with AMI® BIOS

Bios Features

Plug and Play (PnP)
PCI 2.3
ACPI up to 5.0
USB Keyboard support

Chassis
Form Factor	2U Rackmount
Model	CSE-927ETS

Dimension and Weight
Height	3.5" (88mm)
Width	17.2" (437mm)
Depth	26.75" (679mm)
Weight	85 lbs (38.6 kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button System Reset button Alarm Mute Switch
LED	Power status LED HDD activity LED 2x Network activity LEDs System Overheat LED Power Fail LED

Drive Bays
Hot-Swaps	24x Hot-swap 2.5" Drive Bays shared between server nodes SAS or enterprise SATA HDD only recommended SATA drives require LSI interposer

Backplane
	SAS2 dual Expander Backplane, features: Scalability through cascading 6Gb SAS2/SATA2 HDD support Inband SES-2 Enclosure Management Redundancy dual ported SAS architecture Robust AirMax server node connections (SBB specification)

System Cooling
Fans	10x PWM Fans

Power Supply
	920W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I2C, and PFC
AC Input	100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output	+5V standby: 4A +12V: 75A
with Power D istributor	+5V: 45A +3.3V: 24A -12V: 0.6A
Certification	Platinum Certified

PC Health Monitoring
CPU	Monitors for CPU Cores, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Voltages. 5+1-switching voltage regulator
FAN	Total of 10 fan headers supporting up to 10 fans
Temperature	Monitoring for CPU and chassis environment Thermal Control for 10x fan connectors PECI

Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 5Â°C to 35Â°C (41Â°F to 95Â°F) Non-operating Temperature: -40Â°to 70Â°C (-40Â°to 158Â°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Operating Environment / Compliance

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 5Â°C to 35Â°C (41Â°F to 95Â°F)
Non-operating Temperature: -40Â°to 70Â°C (-40Â°to 158Â°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
