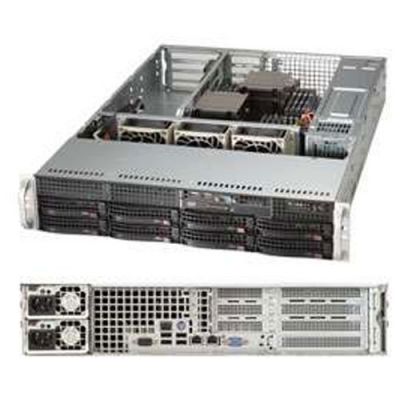

Supermicro 2U Rackmount Server SYS-6027B-URF
• Dual socket B2 (LGA 1356) supports Intel® Xeon® processor E5-2400 v2
• Up to 384GB DDR3 1600MHz ECC R/LRDIMM; 12x DIMM slots
• 1 UIO, 4 (x4) PCI-E 3.0 (2 FHFL, 2 LP), 1 (x8) PCI-E 3.0 (FHFL)
• Intel® i350 Dual port Gigabit Ethernet Controller; 2x LAN ports
• 8x 3.5" Hot-swap SAS/SATA HDD bays for Customizable Storage
• 740W Redundant Power Supplies Platinum Level (94%+)
Super X9DBU-iF Server Motherboard and CSE-825TQ-R740UB 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-6027B-URF | €¢ SuperServer 6027B-URF (Black) |
Motherboard |
|
|---|---|
| Super X9DBU-iF | |
Processor/Cache |
|
|---|---|
| CPU | €¢ Dual Socket B2 (LGA 1356) |
| Cache | €¢ Up to 25MB |
| System Bus | €¢ QPI up to 8 GT/s |
System Memory |
|
|---|---|
| Memory Capacity |
€¢ 12x 240-pin DDR3 DIMM slots €¢ Supports up to 384 GB DDR3 ECC Registered memory (RDIMM) €¢ Supports up to 96 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | €¢ 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | €¢ 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | €¢ 1.5 V, 1.35 V |
| Error Detection | €¢ Corrects single-bit errors €¢ Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | €¢ Intel® C602 Chipset |
| SATA | €¢ SATA 2.0 3Gbps with RAID 0, 1, 5, 10 €¢ SATA 3.0 6Gbps with RAID 0, 1 |
| IPMI | €¢ Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | €¢ Intel® i350 Dual Port Gigabit Ethernet |
| Graphics | €¢ Matrox G200eW |
Input/Output |
|
|---|---|
| SAS/SATA | €¢ Customizable storage |
| LAN | €¢ 2x RJ45 Gigabit Ethernet LAN ports €¢ 1x RJ45 Dedicated IPMI LAN port |
| USB | €¢ 8x USB 2.0 ports total (2 rear + 4 via header + 2 Type A) |
| VGA | €¢ 1x VGA port |
| Serial Port/Header | €¢ 2x Fast UART 16550 ports / 1 rear and 1 header
|
Chassis |
|
|---|---|
| Form Factor | €¢ 2U Rackmount |
| Model | €¢ CSE-825TQ-R740UB |
Dimension and Weight |
|
|---|---|
| Height | €¢ 3.5" (89mm) |
| Width | €¢ 17.2" (437mm) |
| Depth | €¢ 25.5" (648mm) |
| Weight | €¢ 52 lbs (23.6kg) |
| Available Color | €¢ Black |
Front Panel |
|
|---|---|
| Buttons |
€¢ Power On/Off button €¢ System Reset button €¢ UID button |
| LED | €¢ Power status LED €¢ HDD activity LED €¢ 2x Network activity LEDs €¢ Universal Information (UID) LED |
Expansion Slot |
|
|---|---|
| PCI-Express | €¢ 1x UIO (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
|---|---|
| Hot-Swaps | €¢ 8x 3.5" Hot-swap SAS / SATA HDD trays (ready for UIO or PCI-E storage controller card) |
Backplane |
|
|---|---|
| €¢ 1x 2U SAS backplane w/ Enclosure Management (SAS support requires optional SAS controller) | |
Peripheral Drives |
|
|---|---|
| DVD-ROM | €¢ Slim DVD-ROM drive (optional) |
System Cooling |
|
|---|---|
| Fans | €¢ 3x 80mm 7,000 RPM 4-pin PWM fans |
Power Supply with Power Distributor |
|
|---|---|
| 740W (1+1) Redundant high-efficiency power supply with PMBus | |
| AC Input | €¢ 100-240 V, 50-60 Hz, 9-3.5 Amp |
| DC Output | €¢ 4 Amp @ +5V standby €¢ 61.7 Amp @ +12V |
| with Power D istributor |
€¢ +5V: 30 Amp €¢ +3.3V: 24 Amp €¢ -12V: 0.6 Amp |
| Certification | €¢ Platinum Certified |
System Bios |
|
|---|---|
| Bios Type | €¢ 64Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | €¢ Plug and Play (PnP) €¢ APM 1.2 €¢ PCI 2.2 €¢ ACPI 1.0 / 2.0 / 3.0 / 4.0 €¢ BIOS resuce hot keys €¢ USB Keyboard support €¢ SMBIOS 2.3 €¢ UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | €¢ RoHS Compliant |
| Environmental Spec. | €¢ Operating Temperature:
5°C to 35°C (41°F to 95°F) |
