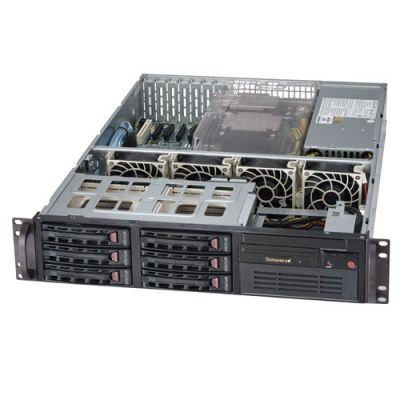

Supermicro 2U Rackmount Server SYS-6027B-TLF

Call for price

In stock

SKU

SYS-6027B-TLF

Key Features:
• Dual socket B2 (LGA 1356) supports Intel® Xeon® processor E5-2400 v2
• Up to 192GB DDR3 1600MHz ECC R/LRDIMM; 6x DIMM slots
• Expansion slots: 1 PCI, 3 PCI-E 3.0 x8 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 (in x8)
• Intel® 82574L Dual port GbE
• 7x USB 2.0 ports (2 rear, 4 via header + 1 Type A)
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• 6x 3.5" Hot-swap SATA2 HDD Bays
• 650W High-efficiency Power Supply Gold Level

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SuperServer SYS-6027B-TLF

Supermicro 6027B-TLF 2U Rackmount Barebone with 650W High-efficiency Power Supply Gold Level, Intel® C602 Chipset support 6x 3.5" Hot-swap SATA2 HDD Bays using Supermicro
Super X9DBL-iF Server Motherboard and CSE-823T-653LPB 2U Rackmount Chassis.

Product SKU
SYS-6027B-TLF	SuperServer 6027B-TLF (Black)

Motherboard
	Intel® Xeon® processor E5-2400 v2 Super X9DBL-iF

Processor/Cache
CPU	Dual Socket B2 (LGA 1356) Intel® Xeon® processor E7-8800 v2 / E7-4800 v2 / E7-2800 v2 (up to 15 Cores and 155W) 50W to 95W E5-2400 support
Cache	Up to 25MB
System Bus	QPI up to 8 GT/s

System Memory
Memory Capacity	6x 240-pin DDR3 DIMM slots Supports up to 192 GB DDR3 ECC Registered memory (R/LRDIMM) Supports up to 48 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C602 Chipset
SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Intel® 82574L Gigabit Ethernet Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics	Matrox G200eW

Input/Output
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	7x USB 2.0 ports total (2 rear + 4 via header + 1 Type A)
VGA	1x VGA port
Serial Port/Header	2x Fast UART 16550 ports / 1 rear and 1 header

Chassis
Form Factor	2U Rackmount
Model	CSE-823T-653LPB

Dimension and Weight
Height	3.5" (89mm)
Width	16.8" (427mm)
Depth	25.5" (648mm)
Weight	42 lbs (19.05kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button System Reset button
LED	Power status LED HDD activity LED 2x Network activity LEDs Information LED Power fail LED

Expansion Slot
PCI-Express	1x PCI-E 3.0 x16 3x PCI-E 3.0 x8 1x PCI-E 3.0 x4 (in x8) (Both CPUs need to be installed for full access to PCI-E slots. See manual for details.)

Expansion Slot

PCI-Express

1x PCI-E 3.0 x16
3x PCI-E 3.0 x8
1x PCI-E 3.0 x4 (in x8)

(Both CPUs need to be installed for full access to PCI-E slots. See manual for details.)

Drive Bays
Hot-Swaps	6x 3.5" Hot-swap SATA2 HDD trays
Peripheral Bay(s)	1x 5.25" full-height peripheral bay

Peripheral Drives
DVD-ROM	Slim DVD-ROM drive (optional)

System Cooling
Fans	4x 8cm 7k RPM middle fans

Power Supply
	650W AC-DC High Efficiency Power Supply
AC Input	100 - 140V, 8-5.2A 180-240V 4.2-3.1A, 50-60Hz
+5V	30 Amp
+5V standby	4 Amp
+12V	100-140Vac 49Amp 180-240Vac 54Amp
-12V	0.5 Amp
+3.3V	25 Amp
Certification	Platinum Certified

System Bios
Bios Type	64Mb SPI Flash EEPROM with AMI BIOS
Bios Features	Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 BIOS resuce hot keys USB Keyboard support SMBIOS 2.7.1 UEFI

Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 5°C to 35°C (41°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
