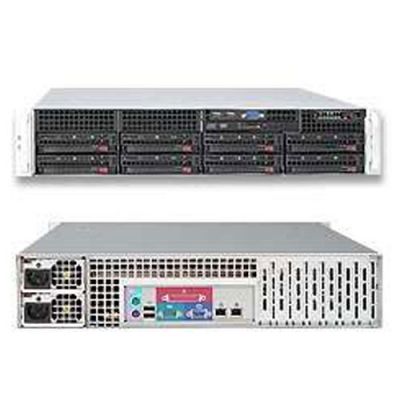

Supermicro 2U Rackmount Server SYS-6025W-NTR+B

Call for price

In stock

SKU

SYS-6025W-NTR+B

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 1600 / 1333 /
   1066 MHz FSB
• Up to 128GB DDR2 800 / 667 / 533 SDRAM Fully Buffered DIMM
   (FB-DIMM)
• 3 (x8) PCI-Express (2 w/ Gen 2.0),
   1 (x4) PCI-Express,
   2x 64-bit 133MHz PCI-X, 1 UIO slots
• Intel® 82575EB Dual-port Gigabit Ethernet Controller
• 8 x 3.5" Hot-swap Drives Trays 6x SATA Hard Drives Supported
• 700W High-efficiency Redundant Power Supply

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SuperServer SYS-6025W-NTR+V / SYS-6025W-NTR+B 2U Rackmount

Supermicro SYS-6025W-NTR+V / SYS-6025W-NTR+B 2U Rackmount Barebone with 700W High-efficiency Redundant Power Supply, Intel® 5400 (Seaburg) chipset, 8x 3.5" SATA
Hot-swap drive bays using Supermicro Super X7DWN+ other board and SC825TQ-R700LPV 2U Chassis.

Product SKU
SYS-6025W-NTR+V	SuperServer 6025W-NTR+V (Silver)
SYS-6025W-NTR+B	SuperServer 6025W-NTR+B (Black)

Motherboard
	Super X7DWN+

Processor/Cache
CPU	Dual 771-pin LGA Sockets Supports up to Dual Intel® 64-bit Xeon®processor(s) of the same type below: Quad-Core Intel® Xeon®Processor 5400/5300LV sequence (Harpertown /Clovertown processor) up to 3.20 GHz Dual-Core Intel® Xeon®Processor 5200/5100LV sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz
System Bus	1600 / 1333 / 1066 MHz system bus

System Memory
Memory Capacity	Six 240-pin DIMM slots Supports up to 128 GB 800 / 667 / 533MHz DDR2 ECC FB-DIMM memory Dual branch memory bus Memory must be populated in pairs Memory Sparing supported
Memory Type	800 / 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	512 MB, 1GB, 2GB, 4GB , 8GB**
Memory Voltage	1.8 V or 1.5 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	Intel® 5400 (Seaburg) chipset ESB2
SATA	Intel ESB2 SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support (Windows only) RAID 0, 1, 10 support (Linux)
IPMI	Support for Intelligent Platform Management Interface v.2.0 / 1.5 200-pin IPMI slot (SIMSO(+)) (Optional: AOC-SIMSO(+)) For Dedicated LAN, cable CBL-0177L must be used (cable sold separately)
Network Controllers	Intel® 82575 Dual-Port Gigabit Ethernet Controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics	ATI ES1000 controller with 32 MB of video memory
Super I/O	Winbond 83627HG chip

Expansion Slot
PCI-Express	3 (x8) PCI-e slots (2 w/ Gen 2.0) 1 (x4) PCI-e slot
PCI-X	2x 64-bit 133MHz PCI-X (3.3V) slots
UIO	1x UIO slot

Input/Output
Serial ATA	Six Serial ATA ports Six SATA hard drives supported
IDE	Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card Compact Flash (40-pin connector, IDE 1, single channel) slot Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	1 Floppy controller; 1.44 MB
LAN	2x RJ45 LAN ports
USB	2x USB rear ports 3x USB internal headers Total 5 USB 2.0 Compliant / 1.1 Compliant
VGA	1 VGA port
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Port / Header	1 Fast UART 16550 serial port 1 Serial header

System Bios
Bios Type	8Mb Flash EEPROM with Phoenix® BIOS EFI BIOS Support
Bios Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3

Chassis
Form Factor	2U Rackmount
Model	SC825TQ-R700LPV

Dimension and Weight
Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	25.5" (648mm)
Weight	55 lbs (24.9kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button System Reset button
LED	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED Power fail LED
Ports	2x USB Ports + DB9 COM Port (optional)

Drive Bays
Hot-Swaps	8x 3.5"SATA Hot-swap drive trays Supports up to 6x SATA hard drives

Peripheral Drives
DVD-ROM	Slim 8x DVD, 24x CD, DVD-ROM Drive
Floppy	Slim 1.44MB Floppy Drive (Optional)

SAS/SATA Backplane
	1x 2U SAS / SATA backplane

System Cooling
Fans	3x 80mm 6300 RPM fans
Shroud	1x Air Shroud

Power Supply
	700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage	100 - 240V, 60-50Hz, 10 - 4 Amp
+5V standby	4 Amp
+12V	57 Amp
With Power Distributor	+5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp

PC Health Monitoring
CPU	Monitors for CPU Cores, +1.8V, +3.3V, +5V, Â±12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	Total of eight fan headers supporting up to 8 fans Four 4-pin fan headers Four 3-pin fan headers 8x fans with tachometer status monitoring Status monitor for speed control Support 3-pin fans Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x fan connectors Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED
Other Features	Chassis intrusion detection Chassis intrusion header SDDC

Operating Environment / Compliance
RoHS	RoHS Compliant 5/6, Server Exemption
Environmental Spec.	Operating Temperature: 5Â°C to 35Â°C (41Â°F to 95Â°F) Non-operating Temperature: -40Â°C to 70Â°C (-40Â°F to 158Â°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Operating Environment / Compliance

RoHS

RoHS Compliant 5/6, Server Exemption

Environmental Spec.

Operating Temperature: 5Â°C to 35Â°C (41Â°F to 95Â°F)
Non-operating Temperature: -40Â°C to 70Â°C (-40Â°F to 158Â°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
