Supermicro 2U Rackmount Server SYS-6025B-8R+V

Call for price

In stock

SKU

SYS-6025B-8R+V

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 / 1333
   MHz FSB
• Up to 64GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
• 2 (x8) & 1 (x4) PCI-Express,
   2x 64-bit 133MHz PCI-X,
   1x 64-bit 100MHz PCI-X Low-profile Expansion Slots
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• (4+4) x 1" Hot-swap U320 SCSI Drive Trays (Dual Channel)
• 700W High-efficiency Redundant Power Supply

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

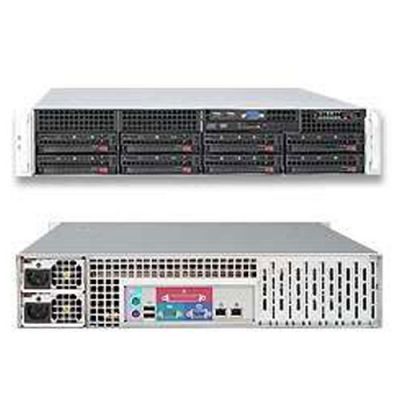

SuperServer SYS-6025B-8R+V / SYS-6025B-8R+B 2U Rackmount

Supermicro SYS-6025B-8R+V / SYS-6025B-8R+B 2U Rackmount Barebone with 700W High-efficiency Redundant Power Supply, Intel® 5000P (Blackford) chipset, 8 x 3.5" SCA Hot-swap
drive trays using Supermicro Super X7DB8+ mother board and SC825S2-R700LPV Chassis.

Product SKU
SYS-6025B-8R+V	SuperServer 6025B-8R+V (Silver)
SYS-6025B-8R+B	SuperServer 6025B-8R+B (Black)

Motherboard
	Super X7DB8+

Processor/Cache
CPU	Dual 771-pin LGA Sockets Supports up to Dual Intel® 64-bit Xeon®processor(s) of the same type below: Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz NOTE: Motherboard PCB revision 2.0 or above is required to support Xeon® 5100 (Woodcrest) processors
System Bus	1333 / 1066 / 667 MHz system bus
OS Software	Supports 64-bit Operating Systems Supports 32-bit Operating Systems

System Memory
Memory Capacity	Sixteen 240-pin DIMM sockets Supports up to 64 GB 667 / 533MHz DDR2 ECC FB-DIMM memory Dual branch memory bus Memory must be populated in pairs Memory Mirroring supported
Memory Type	667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	512 MB, 1GB, 2GB, 4GB
Memory Voltage	1.8 V or 1.5 V (AMB)
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	Intel® 5000P (Blackford) chipset MCH + PXH + ESB2
SCSI	Adaptec AIC-7902 Controller Dual-Channel Ultra320 SCSI (Host RAID supports up to 4 drives) Host RAID 0, 1, & 10 support
RAID	Support for Zero-Channel RAID Optional: (Card not included) RAID 0, 1, 5, 10
SATA	Intel ESB2 SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 200-pin IPMI slot (SIMLP) (Optional: AOC-SIMLP-B(+)) (Optional: AOC-SIMLP-3(+)) with 3rd LAN support
Network Controllers	Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics	ATI ES1000 controller with 32 MB of video memory
Super I/O	Winbond 83627HG chip

Input/Output
Serial ATA	Six Serial ATA ports Six SATA hard drives supported
IDE	Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card Compact Flash (40-pin connector, IDE 1, single channel) slot Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	1 Floppy controller; 1.44 MB, 2.88 MB
LAN	2x RJ45 LAN ports
USB	2x USB rear ports 3x USB internal headers Total 5 USB 2.0 Compliant / 1.1 Compliant
VGA	1 VGA port
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Port / Header	1 Fast UART 16550 serial port 1 Fast UART 16550 serial header
Parallel Port	1 ECP / EEP parallel port

System Bios
Bios Type	8Mb Flash EEPROM with Phoenix® BIOS
Bios Features	Plug and Play (PnP) SMBIOS 2.3 DMI 2.1 PCI 2.2 ACPI 1.0 USB Keyboard support Hardware BIOS Virus protection

Chassis
Form Factor	2U Rackmount
Model	SC825S2-R700LPV

Dimension and Weight
Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	25.5" (648mm)
Weight	55 lbs (24.9kg)
Available Color	Silver,Black

Front Panel
Buttons	Power On/Off button System Reset button
LED	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED Power fail LED
Ports	2x USB Ports + DB9 COM Port (optional)

Expansion Slot
PCI-Express	2 (x8) PCI-e slots 1 (x4) PCI-e (using x8) slot
PCI-X	2x 64-bit 133MHz PCI-X (3.3V) slots 1x 64-bit 100MHz PCI-X (3.3V) slot

Drive Bays
Hot-Swaps	8 x 3.5" SCA Hot-swap drive trays

Peripheral Drives
DVD-ROM	Slim 8x DVD, 24x CD, DVD-ROM Drive
Floppy	Slim 1.44MB Floppy Drive (Optional)

SCSI Backplane
	1x 2U Dual-Channel U320 SCSI backplane

System Cooling
Fans	3x 80mm 6300 RPM fans
Shroud	1x Air Shroud

Power Supply
	700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage	100 - 240V, 60-50Hz, 10 - 4 Amp
+5V standby	4 Amp
+12V	57 Amp
With Power Distributor	+5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp

PC Health Monitoring
CPU	Monitors for CPU Cores, +3.3V, +5V, Â±12V, +1.2V 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans 8x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x fan connectors PSU I2C temperature sensing logic Thermal Monitor 2 (TM2) support
LED	CPU / System Overheat LED
Other Features	Chassis intrusion detection Chassis intrusion header SDDC

Operating Environment / Compliance
Environmental Spec.	Operating Temperature: 5Â°C to 35Â°C (41Â°F to 95Â°F) Non-operating Temperature: -40Â°C to 70Â°C (-40Â°F to 158Â°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Operating Environment / Compliance

Environmental Spec.

Operating Temperature: 5Â°C to 35Â°C (41Â°F to 95Â°F)
Non-operating Temperature: -40Â°C to 70Â°C (-40Â°F to 158Â°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
