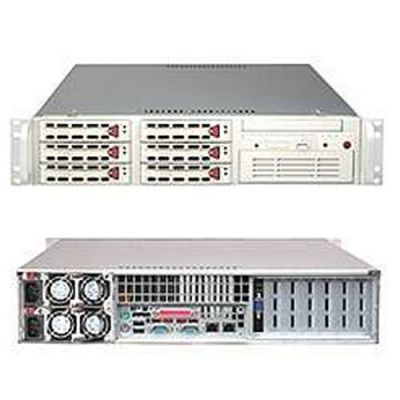

Supermicro 2U Rackmount Server SYS-6024H-TR
Call for price
In stock
SKU
SYS-6024H-TR
Key Features:
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR 333 SDRAM (or)
Up to 32GB DDR 266 SDRAM
• 6 Low-Profile Expansion Slots
2 (x8) PCI-Express,
1 x 64-bit 133MHz PCI-X,
2 x 64-bit 100MHz PCI-X,
1 x 32-bit 33MHz PCI Slots
• 2x Intel® 82541GI Single-port Gigabit Ethernet Controllers
• 6 x 3.5" hot-swap SATA Drive Bays
• Redundant 500W power supply with I2C for remote management.
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR 333 SDRAM (or)
Up to 32GB DDR 266 SDRAM
• 6 Low-Profile Expansion Slots
2 (x8) PCI-Express,
1 x 64-bit 133MHz PCI-X,
2 x 64-bit 100MHz PCI-X,
1 x 32-bit 33MHz PCI Slots
• 2x Intel® 82541GI Single-port Gigabit Ethernet Controllers
• 6 x 3.5" hot-swap SATA Drive Bays
• Redundant 500W power supply with I2C for remote management.
SuperServer SYS-6024H-TR / SYS-6024H-TRB 2U Rackmount
Supermicro SYS-6024H-TR / SYS-6024H-TRB 2U Rackmount Barebone with Redundant 500W power supply, Intel® E7520 chipset, 6x 3.5" Hot-swap drive trays using Supermicro
Super X6DHT-Gmother board and SC823T-R500LP Chassis.
Super X6DHT-Gmother board and SC823T-R500LP Chassis.
Product SKU |
|
|---|---|
| SYS-6024H-TR | SuperServer 6024H-TR (Beige) |
| SYS-6024H-TRB | SuperServer 6024H-TRB (Black) |
Motherboard |
|
|---|---|
| Super X6DHT-G | |
Processor/Cache |
|
|---|---|
| CPU | Dual 604-pin FC-mPGA4 Sockets |
| System Bus | 800 MHz system bus |
| OS Software | Supports 64-bit Operating Systems Supports 32-bit Operating Systems |
System Memory |
|
|---|---|
| Memory Capacity |
Eight 184-pin DIMM sockets Supports up to 16 GB DDR 333MHz memory, or Supports up to 32 GB DDR 266MHz memory Dual channel memory bus Memory must be populated in pairs Single-rank modules are recommended for 6+ DIMM support |
| Memory Type | DDR333/266 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Sizes | 256 MB, 512 MB, 1GB, 2GB, 4GB** |
| Memory Voltage | 2.5 V only |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 Single Device Data Correction (SDDC) Memory Sparing / Mirroring |
On-Board Devices |
|
|---|---|
| Chipset | Intel® E7520 chipset MCH + 6300ESB + PXH/V +82541GI |
| SATA | Marvell® 88SX6081 8-port SATA Controller RAID 0, 1, JBOD support |
| SATA | 6300ESB 2-port SATA Controller RAID 0, 1, JBOD support |
| Zero Channel RAID | Support for Zero-Channel RAID |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | 2x Intel® 82541GI Single Port Gigabit Controller |
| Graphics | ATI Rage XL SVGA PCI video controller with 8MB of video memory |
| Super I/O | Winbond 83627HF chip |
| Clock Generator | CK409 |
Input/Output |
|
|---|---|
| Serial ATA | Ten Serial ATA ports Up to ten SATA hard drives supported 6300ESB - 2 SATA ports Marvell 885X6081- 8 SATA ports |
| IDE | Dual EIDE channels support up to four UDMA IDE devices Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| Floppy | 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
| ZCR | Adaptec 2020SA (Card not included) |
| LAN | 2x RJ45 LAN port |
| USB | 2x USB rear ports 2x USB internal headers USB 2.0 Compliant / 1.1 Compliant |
| VGA | 1x VGA port |
| Keyboard / Mouse | PS/2 keyboard and mouse ports |
| Serial Port / Header | 2 Fast UART 16550 serial ports |
| Parallel Port | 1 ECP/EEP parallel port
|
Chassis |
|
|---|---|
| Form Factor | 2U Rackmount |
| Model | SC823T-R500LP |
Dimension and Weight |
|
|---|---|
| Height | 3.5" (89mm) |
| Width | 16.8" (426mm) |
| Depth | 25.6" (650mm) |
| Weight | 55.5 lbs (25.2kg) |
| Available Color | Beige,Black |
Front Panel |
|
|---|---|
| Buttons |
Power On/Off button System Reset button |
| LED | Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED Power fail LED |
| Ports | none |
Expansion Slots |
|
|---|---|
| 6x low-profile expansion slots | |
| PCI-Express | 2 (x8) slot |
| PCI-X | 1x 64-bit 133MHz PCI-X (3.3V) slot 2x 64-bit 100MHz PCI-X (3.3V) slots |
| PCI | 1x 32-bit 33MHz PCI (5V) slot |
Drive Bays |
|
|---|---|
| Hot-swap | 6x 3.5" Hot-swap drive trays |
| Peripheral Bay(s) | 1x 5.25" full-height peripheral bay |
Peripheral Drives |
|
|---|---|
| Floppy | Panasonic 3.5" 1.44MB Floppy Drive |
| CD-Rom | TEAC Slim 24x CD-ROM drive |
SATA Backplane |
|
|---|---|
| 1x 2U SATA backplane | |
System Cooling |
|
|---|---|
| Fans | 4x 80mm 6300 RPM fans Cooling redundancy with fan shroud |
Power Supply |
|
|---|---|
| 500W (1 + 1) Redundant AC power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V) ] | |
| AC Voltage | 100 - 240V, 50/60Hz, 10 Amp |
| DC Output | 5V + 3.3V ≤ 160W 12V Total ≤ 39 Amp |
| +5V | 30.0 amp |
| +5V standby | 2.0 Amp |
| +12V1 | 15.0 amp |
| +12V2 | 15.0 amp |
| +12V3 | 18.0 amp |
| -12V | 1.0 Amp |
| +3.3V | 21.0 amp |
PC Health Monitoring |
|
|---|---|
| CPU | Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V & +5V Standby |
| FAN | Four 4-pin fan headers Four 3-pin fan headers 8x fans with status tachometer monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Support 3-pin fans Pulse Width Modulated (PWM) fan connector |
| Temperature | Monitoring for CPU, chassis environment CPU thermal trip support Thermal control for 8x fan connectors PC temperature sensing logic Thermal Monitor 2 (TM2) support |
| LED | CPU / System Overheat LED Suspend-state indicator LED |
| Other Features | Chassis intrusion detection Chassis intrusion header SDDC |
System Bios |
|
|---|---|
| Bios Type | 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features. | Plug and Play (PnP) |
