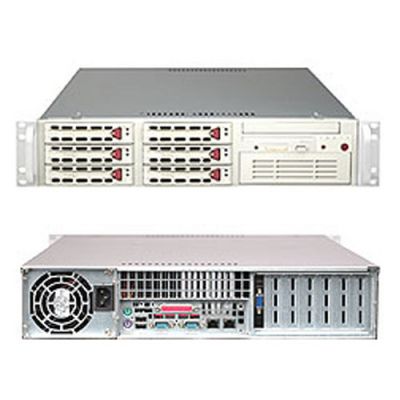

Supermicro 2U Rackmount Server SYS-6024H-T
Call for price
In stock
SKU
SYS-6024H-T
Key Features:
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR 333 SDRAM (or) Up to 32GB DDR 266 SDRAM
• 6 Low-Profile Expansion Slots 2 (x8) PCI-Express,
1 x 64-bit 133MHz PCI-X,
2 x 64-bit 100MHz PCI-X,
1 x 32-bit 33MHz PCI Slots
• 2x Intel® 82541GI Single-port Gigabit Ethernet Controllers
• 6 x 3.5" Hot-swap SATA Drive Bays
• Zero Channel RAID Support
• 550W Power Supply
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR 333 SDRAM (or) Up to 32GB DDR 266 SDRAM
• 6 Low-Profile Expansion Slots 2 (x8) PCI-Express,
1 x 64-bit 133MHz PCI-X,
2 x 64-bit 100MHz PCI-X,
1 x 32-bit 33MHz PCI Slots
• 2x Intel® 82541GI Single-port Gigabit Ethernet Controllers
• 6 x 3.5" Hot-swap SATA Drive Bays
• Zero Channel RAID Support
• 550W Power Supply
SuperServer SYS-6024H-T / SYS-6024H-TB 2U Rackmount
Supermicro SYS-6024H-T / SYS-6024H-TB 2U Rackmount Barebone with 550W Power Supply, Intel® E7520 chipset, 6x 3.5" Hot-swap drive trays using Supermicro Super X6DHT-G
mother board and SC823T-550LP Chassis.
mother board and SC823T-550LP Chassis.
Product SKU |
|
|---|---|
| SYS-6024H-T | SuperServer 6024H-T (Beige) |
| SYS-6024H-TB | SuperServer 6024H-TB (Black) |
Motherboard |
|
|---|---|
| Super X6DHT-G | |
Processor/Cache |
|
|---|---|
| CPU | Dual 604-pin FC-mPGA4 Sockets |
| System Bus | 800 MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
Eight 240-pin DIMM sockets Supports up to 16 GB DDR 333MHz memory, or Supports up to 32 GB DDR 266MHz memory Dual channel memory bus Memory must be populated in pairs Single-rank modules are recommended for 6+ DIMM support |
| Memory Type | DDR 333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Sizes | 256 MB, 512 MB, 1GB, 2GB, 4GB** |
| Memory Voltage | 2.5 V only |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | Intel® E7520 chipset MCH + 6300ESB + PXH/V +82541GI |
| SATA | 6300ESB 2-port SATA Controller RAID 0, 1, JBOD support |
| SATA | Marvell® 88SX6081 8-port SATA Controller RAID 0, 1, JBOD support |
| Zero Channel Raid | Support for Zero-Channel RAID (Card not included) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 / 1.5 (Optional) |
| Network Controllers | 2x Intel® 82541GI Single Port Gigabit Controller |
| Graphics | ATI Rage XL SVGA PCI video controller with 8MB of video memory |
| Super I/O | Winbond 83627HF chip |
| Clock Generator | CK409 |
Expansion Slot |
|
|---|---|
6x low-profile expansion slots |
|
| PCI-Express | 2 (x8) slot |
| PCI-X | 1x 64-bit 133MHz PCI-X (3.3V) slot 2x 64-bit 100MHz PCI-X (3.3V) slots |
| PCI | 1x 32-bit 33MHz PCI (5V) slot |
Input/Output |
|
|---|---|
| Serial ATA | Ten Serial ATA ports Up to 7 SATA hard drives supported 6300ESB - 2 SATA ports Marvell 885X6081- 8 SATA ports |
| IDE | Dual EIDE channels support up to four UDMA IDE devices Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| Floppy | 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
| ZCR | Adaptec 2020SA (Card not included) |
| LAN | 2x RJ45 LAN port |
| USB | 2x USB rear ports 2x USB internal headers USB 2.0 Compliant / 1.1 Compliant |
| VGA | 1x VGA port |
| Keyboard / Mouse | PS/2 keyboard and mouse ports |
| Serial Port / Header | 2 Fast UART 16550 serial ports |
| Parallel Port | 1 ECP/EEP parallel port |
Chassis |
|
|---|---|
| Form Factor | 2U Rackmount |
| Model | SC823T-550LP |
Dimension and Weight |
|
|---|---|
| Height | 3.5" (89mm) |
| Width | 16.8" (426mm) |
| Depth | 25.6" (650mm) |
| Weight | 53.5 lbs (24.3kg) |
| Available Color | Beige,Black |
Front Panel |
|
|---|---|
| Buttons |
Power On/Off button System Reset button |
| LED | Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED |
| Ports | none |
Drive Bays |
|
|---|---|
| Hot-Swaps | 6x 3.5" Hot-swap drive trays |
| Peripheral Bay(s) | 1x 5.25" full-height peripheral bay |
Peripheral Drives |
|
|---|---|
| Floppy | Panasonic 3.5" 1.44MB Floppy Drive |
| CD-Rom | TEAC Slim 24x CD-ROM drive |
SATA Backplane |
|
|---|---|
| 1x 2U SATA backplane | |
System Cooling |
|
|---|---|
| Fans | 4x 80mm 6300 RPM fans Cooling redundancy with fan shroud |
Power Supply |
|
|---|---|
| 2U 550W AC power supply w/ PFC [ 24-pin, (8-pin, 4-pin)=12V) ] | |
| AC Voltage | 100 - 240V, 50-60Hz, 9-3.5 Amp |
| DC Output | 5V + 3.3V ≤ 50A |
| +5V | 35.0 Amp |
| +5V standby | 2.0 Amp |
| -5V | 0.8 Amp |
| +12V | 42.0 Amp |
| -12V | 1.0 Amp |
| +3.3V | 30.0 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V &Amp; +5V Standby |
| FAN | Four 4-pin fan headers Four 3-pin fan headers 8x fans with status tachometer monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Support 3-pin fans Pulse Width Modulated (PWM) fan connector |
| Temperature | Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x fan connectors PSU I2C temperature sensing logic Thermal Monitor 2 (TM2) support |
| LED | CPU / System Overheat LED Suspend-state indicator LED |
| Other Features | Chassis intrusion detection Chassis intrusion header SDDC Memory Sparing / Mirroring |
System Bios |
|
|---|---|
| Bios Type | 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | Plug and Play (PnP)
|
