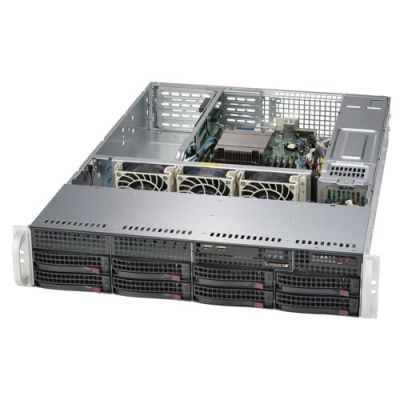

Supermicro 2U Rackmount Server SYS-5028R-WR
Key Features:
• 5x PCI-E x8, 8x 3.5" Drives
• Cost-effective, Single Socket
• Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4€ /
v3 family; QPI up to 9.6GT/s
• Intel® C612 chipset
• 8x 3.5" Hot-swap SATA3 drive bays; optional fixed drive bays
• Up to 1TB€ ECC 3DS LRDIMM , up to DDR4- 2400€ MHz ; 8x DIMM slots
• 5x PCI-E 3.0 x8 slots via riser card
• Intel® i350-AM2 Dual port GbE LAN
• 1x Slim DVD ROM drive bay (option)
• 2x USB 2.0 ports, 2x USB 3.0 ports
• 500W Redundant Power Supplies Platinum Level (94%+)
• 3x middle cooling fans
Super X10SRW-F Server Motherboard and CSE-825TQ-R500WB 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-5028R-WR | SuperServer 5028R-WR (Black) |
Motherboard |
|
|---|---|
| Super X10SRW-F | |
Processor/Cache |
|
|---|---|
| CPU | Intel® Xeon® processor E5-2600 v4€ / v3, E5-1600 v4€ / v3 family (up to 145W TDP **) |
| Core / Cache | Up to 22 Cores€ / Up to 55MB€ Cache |
| Note | € BIOS version 2.0 or above is required ** Motherboard supports this maximum TDP. Please verify your system can thermally support |
System Memory (per Node) |
|
|---|---|
| Memory Capacity |
8x 288-pin DDR4 DIMM slots Up to 1TB ECC 3DS LRDIMM Up to 512GB ECC LRDIMM Up to 256GB ECC RDIMM |
| Memory Type | 2400€ / 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
| DIMM Sizes | 3DS LRDIMM: 128GB LRDIMM: 64GB, 32GB RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | Intel® C602J chipset |
| SATA | SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | Intel® i350 Dual-Port Gigabit Ethernet Controller |
| Video | Matrox G200eW 16 MB DDR2 |
Input/Output (per Node) |
|
|---|---|
| SATA | 8x SATA3 (6Gbps) ports |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port |
| USB | 2x USB 2.0 ports (front) 2x USB 2.0, 3.0 ports (rear) |
| Video | 1x VGA port |
| Serial Port/Header | 1x Fast UART 16550 serial port
|
Chassis |
|
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-825TQ-R500WB |
Dimension and Weight |
|
|---|---|
| Height | 3.5" (88.9mm) |
| Width | 17.2" (437mm) |
| Depth | 25.5" (648mm) |
| Weight | 59 lbs (26.7 kg) |
| Available Color | Black |
Front Panel |
|
|---|---|
| Buttons |
Power On/Off button System Reset button |
| LED | Power status LED HDD activity LED 2x Network activity LEDs System Overheat LED |
Expansion Slots |
|
|---|---|
| PCI-Express | 4x PCI-E 3.0 x8 Full-height Full-length slots 1x PCI-E 3.0 x8 Low-profile Half-length slot |
Drive Bays |
|
|---|---|
| Hot-Swaps | 8x 3.5" Hot-swap SATA3 drive bays |
Backplane |
|
|---|---|
| SAS/SATA HDD Backplane
(SAS support requires optional SAS controller) |
|
System Cooling |
|
|---|---|
| Fans | 3x 80x80x38mm 7K RPM Cooling fans |
Power Supply |
|
|---|---|
| 500W high-efficiency redundant power supplies with PMBus | |
| AC Input | 100-240 V, 50-60 Hz, 6.1-2.6 Amp |
| DC Output | 4 Amp @ +5V standby 41.7 Amp @ +12V |
| with Power D istributor |
+5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp |
| Certification | Platinum Certified |
System Bios |
|
|---|---|
| Bios Type | 8MB SPI Flash EEPROM with AMI BIOS |
| Bios Features | DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 USB Keyboard support MBIOS 2.3 |
Operating Environment / Compliance |
|
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature:
5°C to 35°C (41°F to 95°F) |
