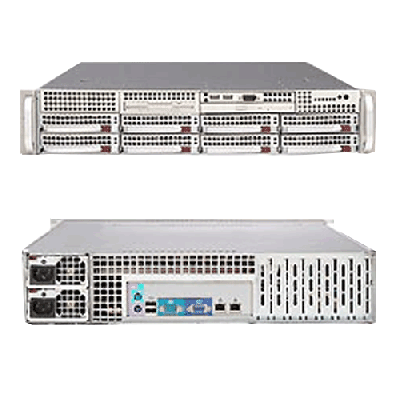

Supermicro 2U Rackmount Server A+ AMD Opteron AS-2021M-T2R+B
Key Features:
• Supports 2x Six-Core AMD Opteron„¢ 2000 Processor
• Up to 128GB of memory
• 8 x 3.5" Hot-swap Drives Trays
• 6x SATA Hard Drives Supported
• Dual-port Gigabit LAN/Ethernet Controller
• 700W High-efficiency Redundant Power Supply
|
Product SKU
| |
|---|---|
| AS-2021M-T2R+V | • A+ Server 2021M-T2R+V (Silver) |
| AS-2021M-T2R+B | • A+ Server 2021M-T2R+B (Black) |
|
Motherboard
| |
|---|---|
| • Super H8DME-2 | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Dual 1207-pin Socket F
Supports up to two Six-Core AMD Opteron„¢ 2000 Series (Socket F) processors |
| Chipset | • nVidia MCP55 Pro |
| •NEC uPD720400 | |
|
System Memory
| |
|---|---|
| Memory Capacity | • 16x 240-pin DIMM sockets support up to
128GB DDR2 800/667/533/400 SDRAM * • For Single CPU: Memory must be populated in CPU1 DIMMs only • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks • Dual channel memory bus |
| Memory Type | • DDR2 800/667/533/400 MHz Reg. ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB, 8GB ** |
| Memory Voltage | • 1.8V only |
|
On-Board Devices
| SATA | • nVidia MCP55 Pro SATA2 3.0Gbps Controller • 6 SATA Ports • nVidia RAID 2.0 • SATA RAID 0, 1, 0+1, 5, JBOD Support |
|---|---|
| IPMI | • Intelligent Platform Management Interface v.2.0, Low Profile • (Optional: AOC-SIMLC R 3.00) • (Optional: AOC-SIM1U+ R 3.00) • RMM (Remote Management Module) • (Card not included) |
| Network Controllers | • nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| VGA | • ATI ES1000 Graphics Controller |
| Super I/O |
• Winbond 83627HF |
|
Input/Output
| SATA | • 6 SATA2 ports | IDE | • Single EIDE channel support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100/133 |
Floppy | • 1 Floppy port; 1.44 MB support | LAN | • 2 RJ45 LAN ports |
|---|---|
| USB | • FUCI • Up to 6 USB Ports 2.0 Compliant, 1.1 Compatible • 2 Rear Ports • 4 Internal Headers |
| VGA | • 1 VGA port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1 Fast UART 16550 serial port • 1 serial port header |
|
System BIOS
| |
|---|---|
| BIOS Type | • 8Mb Flash EEPROM with AMI® BIOS |
| BIOS Features | • Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • SC825TQ-R700LPV |
|
Dimension and Weight
| |
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 55 lbs (24.9kg) |
| Available Colors | • Silver, Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button • System Reset button |
| LEDs | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • Power fail LED |
| Ports | • 2x USB Ports + DB9 COM Port |
|
Expansion Slots
| |
|---|---|
| PCI-Express | • 2 x8 PCI-e slots |
| PCI-X | • 2 64-bit 133/100MHz PCI-X (3.3V) slots |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 8 x 3.5" SATA Hot-swap drive trays |
|
Peripheral Drives
| |
|---|---|
| DVD-ROM | • Slim 8x DVD, 24x CD, DVD-ROM Drive |
| Floppy | • Slim 1.44MB Floppy Drive (Optional) |
|
SATA Backplane
| |
|---|---|
• 1x 2U SATA backplane with Enclosure Management (SGPIO) |
|
|
System Cooling
| |
|---|---|
| Fans | • 3x 80mm 6300 RPM fans |
| Shrouds | • 1x Air Shroud |
|
Power Supply
| |
|---|---|
• 700W AC-DC power supply and power distributor w/ PFC |
|
| AC Input | • 100 - 240V, 60-50Hz, 10 - 4 Amp |
| +5V standby | • 4 Amp |
| +12V | • 57 Amp |
| With Power Distributor |
• +5V: 24 Amp |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +1.5V, +3.3V, +5V, ±12V, 5V Standby, HyperTransport Link voltage 1.2V, memory voltage 1.8V, VBAT • CPU 4-Phase-switching voltage reulator |
| FAN |
• Total up to 8-fan status tachometer monitoring • Up to eight 4-pin fan headers • Status monitor for speed control • Stauts monitor for on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal Control for 8x Fan Connectors • I2C Temperature Sensing Logic |
| LEDs | • CPU / System Overheat LED • Suspend-State Indicator LED • +5V Standby Alert LED |
| Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header |
|
Operating Environment / Compliance
| |
|---|---|
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
