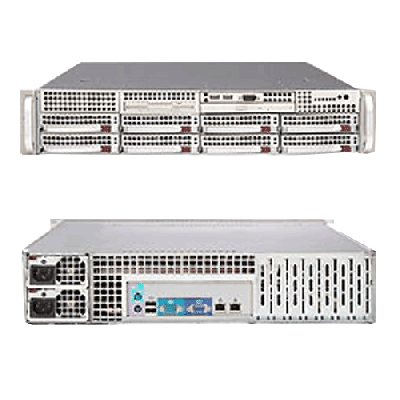

Supermicro 2U Rackmount Server A+ AMD Opteron AS-2021M-82R+B

Call for price

In stock

SKU

AS-2021M-82R+B

Key Features:
• 2x Six-Core AMD Opteron„¢ 2000 processor
• Up to 128GB of memory
• 8x 3.5" Hot-swap U320 SCSI Drive Trays
• 2x PCI-e (x8)
• Dual-port Gigabit LAN/Ethernet Controller
• 700W High-efficiency Redundant Power Supply

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Supermicro 2U Rackmount Server A+ AMD Opteron AS-2021M-82R+B

Product SKU
AS-2021M-82R+V	• A+ Server 2021M-82R+V (Silver)
AS-2021M-82R+B	• A+ Server 2021M-82R+B (Black)

Motherboard
	• Super H8DM8-2

Processor/Chipset
CPU	• Dual 1207-pin Socket F • Supports up to two Six-Core AMD Opteron„¢ 2000 Series (Socket F) processors • HT3.0 Link support
Chipset	• nVidia MCP55 Pro • NEC uPD720400

System Memory
Memory Capacity	• 16x 240-pin DIMM sockets support up to 128GB DDR2 800/667/533/400 SDRAM * • For Single CPU: Memory must be populated in CPU1 DIMMs only • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks • Dual channel memory bus
Memory Type	• DDR2 800/667/533/400 MHz Reg. ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 256 MB, 512 MB, 1GB, 2GB, 4GB, 8GB **
Memory Voltage	• 1.8V only

On-Board Devices
SCSI	• Adaptec AIC-7902W Controller • Dual-Channel Ultra320 SCSI with Host RAID • Host RAID 0, 1, 10, JBOD
Zero Channel RAID	• Support for Zero-Channel RAID • Optional: (Card not included)
IPMI	• Intelligent Platform Management Interface v.2.0, Low Profile (Optional: AOC-SIMLC(+) R 3.00) • RMM (Remote Management Module) • (Card not included)
Network Controllers	• nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA	• ATI ES1000 Graphics Controller
Super I/O	• Winbond 83627HF

Input/Output
IDE	• Single EIDE channel support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100/133
Floppy	• 1 Floppy port; 1.44 MB support
LAN	• 2 RJ45 LAN ports
USB	• FUCI • N 2 RJ45 LAN ports USB FUCI Up to 6 USB Ports 2.0 Compliant, 1.1 Compatible • 2 Rear Ports • 4 Internal Headers
VGA	• 1 VGA port
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Ports	• 1 Fast UART 16550 serial port • 1 serial port header

System BIOS
BIOS Type	• 8Mb Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 2.0 • BIOS Rescue Hot Keys • USB Keyboard Support • Hardware BIOS Virus Protection • SMBIOS 2.3

Chassis
Form Factor	• 2U Rackmount
Model	• SC825S2-R700LPV

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 25.5" (648mm)
Gross Weight	• 55 lbs (24.9kg)
Available Colors	• Silver, Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED €¢ Power fail LED
Ports	• 2x USB Ports + DB9 COM Port

Expansion Slots
PCI-Express	• 2 x8 PCI-e slots
PCI-X	• 2 64-bit 133/100MHz PCI-X (3.3V) slots • 2 64-bit 133/100MHz PCI-X (3.3V) slots 2 64-bit 100MHz PCI-X (3.3V) slot

Drive Bays
Hot-swap	• 8 x 3.5" SCA Hot-swap drive trays

Peripheral Drives
DVD-ROM	• Slim 8x DVD, 24x CD, DVD-ROM Drive
Floppy	• Slim 1.44MB Floppy Drive (Optional)

SCSI Backplane
	• 1x 2U Dual-Channel U320 SCSI backplane

System Cooling
Fans	• 3x 80mm 6300 RPM fans
Shroud	• 1x Air Shroud

Power Supply
	700W AC-DC power supply and power distributor w/ PFC
AC Input	• 100 - 240V, 60-50Hz, 10 - 4 Amp
+5V standby	• 4 Amp
+12V	• 57 Amp
With Power Distributor	• +5V: 24 Amp • +3.3V: 21 Amp • -12V: 0.6 Amp

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +1.5V, +3.3V, +5V, ±12V, 5V Standby, HyperTransport Link voltage 1.2V, memory voltage 1.8V, VBAT • CPU 4-Phase-switching voltage reulator
FAN	• Total up to 8-fan status tachometer monitoring • Up to eight 4-pin fan headers • Status monitor for speed control • Stauts monitor for on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal Control for 8x Fan Connectors • I2C Temperature Sensing Logic
LED	• CPU / System Overheat LED • Suspend-State Indicator LED • +5V Standby Alert LED
Other Features	• Chassis Intrusion Detection • Chassis Intrusion Header

Operating Environment / Compliance
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
