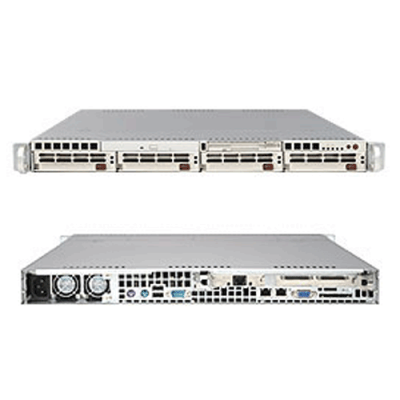

Supermicro 1U Rackmount SuperServer SYS-6013P-8
Key Features:
• Dual Intel® Xeon® Support up to 3.20 GHz
• Up to 12GB DDR 266/200 SDRAM
• 1 x 64-bit 133/100MHz Full-height, Full-length PCI-X Expansion Slot
• 1 x 64-bit 66MHz Low-profile PCI-X Expansion slot
• 2 x Intel® 82546EB Gigabit Ethernet Ports
• Zero Channel RAID Support
• 3 x 3.5" Ultra320 SCSI Hot-swap Drive Bays
• 400W Power Supply
Supermicro SYS-6013P-8 / SYS-6013P-8B 1U Rackmount with 400W Power Supply,Intel® E7501 chipset, 3 x 3.5" hot-swap Ultra320/160 SCSI Drive Bays w/ SAF-TE, using Supermicro
Super X5DPR-8G2+ Motherboard and SC812S-400 Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-6013P-8 | SuperServer 6013P-8 (Beige) |
| SYS-6013P-8B | SuperServer 6013P-8B (Black) |
Motherboard |
|
|---|---|
| Super X5DPR-8G2+ | |
Processor/Cache |
|
|---|---|
| CPU | Dual mPGA604 ZIF Sockets |
| System Bus | 533MHz/400MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
Six 184-pin DIMM sockets Supports up to 12 GB DDR266/200 memory Dual channel memory bus Memory must be populated in pairs |
| Memory Type | DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Sizes | 256 MB, 512 MB, 1 GB, 2 GB |
| Memory Voltage | 2.5 V only |
On-Board Devices |
|
|---|---|
| Chipset | Intel® E7501 chipset |
| SCSI | Adaptec AIC-7902 Controller Dual-Channel Ultra320 SCSI |
| RAID | Support for Zero-Channel RAID w/ Supermicro Socket DIMM All-In-One ZCR Card AOC-SOZCR1 (Card not Included) |
| IPMI | Support for Intelligent Platform Management Interface v.1.5 (Optional) |
| Network Controllers | Dual Port Intel® 82546EB Gigabit Ethernet Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Graphics | ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
Expansion Slots |
|
|---|---|
| 1x full-height, full-length 64-bit 133/100MHz PCI-X (3.3V) expansion slot (Riser card required) w/ VXB (Virtual Extended Bus) slot 1x low-profile slim 64-bit 66MHz PCI-X (3.3V) expansion slot (Riser card required) |
|
Input/Output |
|
|---|---|
| IDE | Dual EIDE channels support up to four UDMA IDE devices Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| USB | Up to 5 USB ports |
| Serial Ports | 2 Fast UART 16550 serial ports |
| Floppy | 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
| Keyboard / Mouse | PS/2 keyboard and mouse ports |
System Bios |
|
|---|---|
| Bios Type | 4Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | Plug and Play (PnP)
|
Chassis |
|
|---|---|
| Form Factor | 1U Rackmount |
| Model | SC812S-400 |
Dimension and Weight |
|
|---|---|
| Height | 1.7" (43mm) |
| Width | 16.8" (426mm) |
| Depth | 25.6" (650mm) |
| Weight | 40 lbs (18.1kg) |
| Available Color | Beige,Black |
Front Panel |
|
|---|---|
| Buttons | Power On/Off button |
| LEDs | Power LED Hard Drive Activity LED 2x Network activity LEDs System Overheat / Fan Fail LED |
| Ports | 2x USB Ports (2.0 ready) 1x RJ45 COM Port |
Drive Bays |
|
|---|---|
| Hot-swap | 3 x 3.5" hot-swap Ultra320/160 SCSI Drive Bays w/ SAF-TE |
Peripheral Drives |
|
|---|---|
| Floppy | Mitsumi 3.5" 1.44MB Slim Floppy Drive |
| CD-ROM | TEAC Slim 24x CD-ROM drive |
SCSI Backplane |
|
|---|---|
| 1x SCA812 1U SCSI Backplane w/ SAF-TE | |
System Cooling |
|
|---|---|
| Fans | 2x 10cm blower fans |
Power Supply |
|
|---|---|
| 400W AC power supply with PFC | |
| AC Voltage | 100 - 240V, 50/60Hz, 8 Amp |
| DC Output | 5V + 3.3V ≤ 200W |
| +5V | 30.0 Amp |
| +5V stand by | 2.0 Amp |
| +12 | 26 Amp |
| -12V | 10.0 Amp |
| +3.3V | 30 Amp |
Operating Environment / Compliance |
|
|---|---|
| RoHS | RoHS Compliant 5/6, Server Exemption |
| Environmental Spec. | Operating Temperature: 10°to 35°C (50°to 95°F)
|
