Supermicro 1U Rackmount SuperServer SYS-5015M-T+B

Call for price

In stock

SKU

SYS-5015M-T+B

Key Features:
• Xeon® 3200/3000 Series, Pentium® D, Pentium 4, Pentium Extreme
Edition, & Celeron D in LGA775 Package (FSB 1066/800/533)
• Up to 8GB unbuffered ECC / non-ECC DDR2 667/533MHz SDRAM
• 1 (x8) PCI-Express or 1x 64-bit 133MHz PCI-X
• 1x Intel® 82573L PCI-e Gigabit LAN
1x Intel® 82573V PCI-e Gigabit LAN
• On board ATI ES1000 Graphics
• 2x 3.5" Hot-swap SATA Drive Bays
• 300W Power Supply

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

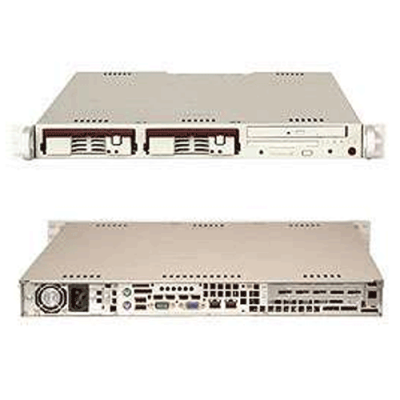

SuperServer SYS-5015M-T+ / SYS-5015M-T+B 1U Rackmount

Supermicro SYS-5015M-T+ / SYS-5015M-T+B 1U Rackmount with Intel 3000 (Mukilteo-2) chipset, 2x 3.5"SATA Hot-swap drive bays, using Super PDSMi+ and SC811T-300 Rackmount
Chassis

Product SKU
SYS-5015M-T+	SuperServer 5015M-T+B(Beige)
SYS-5015M-T+B	SuperServer 5015M-T+B (Black)

Motherboard
	Super PDSMi+

Processor/Cache
CPU	Single LGA775 ZIF Socket Supports a Quad-Core Intel® Xeon® 3200 series processor Supports a Dual-Core Intel® Xeon® 3000 series processor Supports a Quad-Core Intel® Coreâ„¢2 Extreme series processor Supports an Intel® Coreâ„¢2 Quad series processor Supports an Intel® Coreâ„¢2 Duo series processor Supports an Intel® Pentium® processor E2000 series Supports a Dual-Core Intel® Pentium® D processor Supports an Intel® Pentium® Extreme Edition processor Supports an Intel® Pentium® 4 processor Supports an Intel® Celeron® processor E1000 series Supports an Intel® Celeron® processor 400 series NOTE: This board DOES NOT support Q9000, E8000, E7000, E5000 series or 45nm processor
System Bus	1066 / 800 / 533 MHz system bus

Processor/Cache

CPU

Single LGA775 ZIF Socket
Supports a Quad-Core Intel® Xeon® 3200 series processor
Supports a Dual-Core Intel® Xeon® 3000 series processor
Supports a Quad-Core Intel® Coreâ„¢2 Extreme series processor
Supports an Intel® Coreâ„¢2 Quad series processor
Supports an Intel® Coreâ„¢2 Duo series processor
Supports an Intel® Pentium® processor E2000 series
Supports a Dual-Core Intel® Pentium® D processor
Supports an Intel® Pentium® Extreme Edition processor
Supports an Intel® Pentium® 4 processor
Supports an Intel® Celeron® processor E1000 series
Supports an Intel® Celeron® processor 400 series

NOTE: This board DOES NOT support Q9000, E8000, E7000, E5000 series or 45nm processor

System Bus

1066 / 800 / 533 MHz system bus

System Memory
Memory Capacity	Four 240-pin DIMM sockets Supports up to 8 GB of memory (Single / Dual Channel)
Memory Type	DDR2 667/533MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes	256 MB, 512 MB, 1 GB, 2 GB
Memory Voltage	1.8V only

On-Board Devices
Chipset	Intel 3000 (Mukilteo-2) chipset ICH7R + PXH-V + Intel® 82573V + Intel® 82573L
Serial ATA	Intel® ICH7R SATA controller built-in RAID 0, 1, 5, 10 support (Windows Only) RAID 0, 1, 10 support (Linux)
IPMI	Support for Intelligent Platform Management Interface v.2.0 (Optional: AOC-IPMI20-E)
Network Controllers	1x Intel® 82573V Gigabit PCI-Express Ethernet 1x Intel® 82573L Gigabit PCI-Express Ethernet Supports 10Base-T, 100Base-TX, 1000BASE-T, RJ45 output
VGA	On-board ATI ES1000 (16MB) graphics
Super I/O	Winbond 83627HG chip
Clock Generator	CK410

Expansion Slots
Universal Slot	1x 64-bit PCI-X 133MHz Slot (via Riser Card) Or 1 (x8) PCI-Express Slot (via Riser Card) - Optional

Input/Output
Serial ATA	Four Serial ATA ports (3 Gbps performance) Four SATA hard drives supported
IDE	One EIDE channel supports up to two UDMA IDE devices IDE Master / Slave 2 ports Supports UDMA Mode 5, PIO Mode 4, and ATA/100 White Connector for Compact Flash (CF, 40-pin IDE connector) card only
LAN	2x RJ45 LAN ports
USB	Up to 6x USB 2.0 / 1.1 compliant ports 4x Internal USB headers 2x Rear USB ports
VGA	1x VGA port
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Port	1x Fast UART 16550 serial port 1x Header
Parallel Port	1x ECP / EEP Parallel Header

Chassis
Form Factor	1U Rackmount
Model	SC811T-300

Dimension and Weight
Height	1.7" (43mm)
Width	16.8" (426mm)
Depth	22.6" (574mm)
Weight	35 lbs (15.9kg)
Available Color	Beige,Black

Front Panel
Buttons	Power On/Off button System Reset button
LEDs	Power Status LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED
Ports	none

Drive Bays
Hot-swap	2x 3.5"SATA Hot-swap drive bays

System Cooling
Fans	3x 3-pin Counter-rotatign Cooling Fans

Power Supply
	Fixed 300W AC power supply module with PFC [ 24-pin, (4-pin=12V), 4-pin HDD ]
AC Voltage	100 - 240V, 60-50Hz, 5 Amp
DC Output	5V + 3.3V â‰¤ 100W
+5V	25 Amp
+5V stand by	2.0 Amp
+12V	24.0 Amp (Max)
-12V	1.0
+3.3V	15.0 Amp

PC Health Monitoring
CPU	Monitors for CPU Cores (+1.8V, +3.3V, +5, Â±12V, +3.3V/+5V Standby, VBAT) CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V Adjustable CPU clock frequency ratio
FAN	Fan Speed Control Total of six 4-pin fan headers 6x fans with tachometer monitoring Status monitor with firmware speed control Low noise fan speed control Status monitor for on/off control Support 3-pin fans (without speed control) Pulse Width Modulated (PWM) fan connector
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor (TM2) Support
LED	CPU / System Overheat LED +5V Standby Alert LED Suspend-state indicator LED
Other Features	Chassis intrusion detection Chassis intrusion header

System Bios
Bios Type	8Mb Flash EEPROM with Phoenix BIOS®
Bios Features.	Plug and Play (PnP) DMI 2.3 support PCI 2.2 ACPI 1.0 SMBIOS 2.3 USB Keyboard support

System Bios

Bios Type

8Mb Flash EEPROM with Phoenix BIOS®

Bios Features.

Plug and Play (PnP)
DMI 2.3 support
PCI 2.2
ACPI 1.0
SMBIOS 2.3
USB Keyboard support
