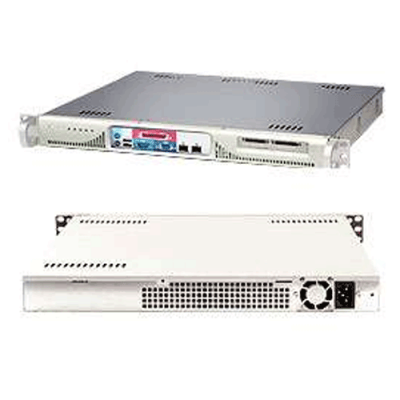

Supermicro 1U Rackmount SuperServer SYS-5015M-MF+B

Call for price

In stock

SKU

SYS-5015M-MF+B

Key Features:
• Xeon® 3200/3000 Series, Pentium® D, Pentium 4, Pentium Extreme
Edition, & Celeron D in LGA775 Package (FSB 1066/800/533)
• Up to 8GB unbuffered ECC / non-ECC DDR2 667/533MHz SDRAM
• 1 (x8) PCI-Express or 1x 64-bit 133MHz PCI-X
• 1x Intel® 82573L PCI-E Gigabit LAN 1x Intel® 82573V PCI-E Gigabit LAN
• On board ATI ES1000 Graphics
• 1x 3.5" Internal Drive Bay
• 260W Power Supply

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SuperServer SYS-5015M-MF+ / SYS-5015M-MF+B 1U Rackmount

Supermicro SYS-5015M-MF+ / SYS-5015M-MF+B 1U Rackmount with Intel 3000 (Mukilteo-2) chipset, 1x 3.5" internal drive bay, using Super PDSMi+ and SC513F-260B (For SuperServer
Only) Rackmount Chassis

Product SKU
SYS-5015M-MF+	SuperServer 5015M-MF+B (Black)
SYS-5015M-MF+B	SuperServer 5015M-MF+B (Black)

Motherboard
	Super PDSMi+

Processor/Cache
CPU	Single LGA775 ZIF Socket Supports a Quad-Core Intel® Xeon® 3200 series processor Supports a Dual-Core Intel® Xeon® 3000 series processor Supports a Quad-Core Intel® Coreâ„¢2 Extreme series processor Supports an Intel® Coreâ„¢2 Quad series processor Supports an Intel® Coreâ„¢2 Duo series processor Supports an Intel® Pentium® processor E2000 series Supports a Dual-Core Intel® Pentium® D processor Supports an Intel® Pentium® Extreme Edition processor Supports an Intel® Pentium® 4 processor Supports an Intel® Celeron® processor E1000 series Supports an Intel® Celeron® processor 400 series NOTE: This board DOES NOT support Q9000, E8000, E7000, E5000 series or 45nm processor
System Bus	1066 / 800 / 533 MHz system bus

Processor/Cache

CPU

Single LGA775 ZIF Socket
Supports a Quad-Core Intel® Xeon® 3200 series processor
Supports a Dual-Core Intel® Xeon® 3000 series processor
Supports a Quad-Core Intel® Coreâ„¢2 Extreme series processor
Supports an Intel® Coreâ„¢2 Quad series processor
Supports an Intel® Coreâ„¢2 Duo series processor
Supports an Intel® Pentium® processor E2000 series
Supports a Dual-Core Intel® Pentium® D processor
Supports an Intel® Pentium® Extreme Edition processor
Supports an Intel® Pentium® 4 processor
Supports an Intel® Celeron® processor E1000 series
Supports an Intel® Celeron® processor 400 series

NOTE: This board DOES NOT support Q9000, E8000, E7000, E5000 series or 45nm processor

System Bus

1066 / 800 / 533 MHz system bus

System Memory
Memory Capacity	Four 240-pin DIMM sockets Supports up to 8 GB of memory (Single / Dual Channel)
Memory Type	DDR2 667/533MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes	256 MB, 512 MB, 1 GB, 2 GB
Memory Voltage	1.8V only

On-Board Devices
Chipset	Intel 3000 (Mukilteo-2) chipset ICH7R + PXH-V + Intel® 82573V + Intel® 82573L
Serial ATA	Intel® ICH7R SATA controller built-in RAID 0, 1, 5, 10 support (Windows Only) RAID 0, 1, 10 support (Linux)
IPMI	Support for Intelligent Platform Management Interface v.2.0 (Optional: AOC-IPMI20-E)
Network Controllers	1x Intel® 82573V Gigabit PCI-Express Ethernet 1x Intel® 82573L Gigabit PCI-Express Ethernet Supports 10Base-T, 100Base-TX, 1000BASE-T, RJ45 output
VGA	On-board ATI ES1000 16MB graphics
Super I/O	Winbond 83627HG chip
Clock Generator	CK410

Expansion Slots
Universal Slot	1x 64-bit PCI-X 133MHz Slot (via Riser Card) OR 1 (x8) PCI-Express Slot (via Riser Card) - Optional

Input/Output
Serial ATA	Four Serial ATA ports (3 Gbps performance) Four SATA hard drives supported
IDE	One EIDE channel supports up to two UDMA IDE devices IDE Master / Slave 2 ports Supports UDMA Mode 5, PIO Mode 4, and ATA/100 White Connector for Compact Flash (CF, 40-pin IDE connector) card only
Floppy	1 Floppy controller; 1.44 MB
LAN	2x RJ45 LAN ports
USB	Up to 6x USB 2.0 / 1.1 compliant ports 4x Internal USB headers 2x Rear USB ports
VGA	1x VGA port
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Port	1x Fast UART 16550 serial port 1x internal header

Chassis
Form Factor	1U Rackmount
Model	SC513F-260B (For SuperServer Only)

Dimension and Weight
Height	1.7" (43mm)
Width	16.8" (426mm)
Depth	14" (356mm)
Weight	16.5 lbs (7.5kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button System Reset button
LEDs	Power Status LED Hard drive activity LED 2x Network activity LEDs System Overheat LED
Ports	2x USB Ports (2.0 Ready)

Drive Bays
Internal	1x 3.5" internal drive bay

System Cooling
Fans	2x 16cm 3-pin Nidec Counter-rotating Fans

Power Supply
	Thermal control 260W AC power supply with PFC [ 24-pin, 4-pin=12V, (2) 4-pin ]
AC Voltage	100 - 240V, 60-50Hz, 4 Amp Max
DC Output	5V + 3.3V â‰¤ 140W
+5V	25.0 Amp
+5V stand by	2.0 Amp
+12V	18.0 Amp
-12V	1.0
+3.3V	15.0 Amp

PC Health Monitoring
CPU	Monitors for CPU Cores (+1.8V, +3.3V, +5, Â±12V, +3.3V/+5V Standby, VBAT) CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V Adjustable CPU clock frequency ratio
FAN	Fan Speed Control Total of six 4-pin fan headers 6x fans with tachometer monitoring Status monitor with firmware speed control Low noise fan speed control Status monitor for on/off control Support 3-pin fans (without speed control) Pulse Width Modulated (PWM) fan connector
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor (TM2) Support
LED	CPU / System Overheat LED +5V Standby Alert LED Suspend-state indicator LED
Other Features	Chassis intrusion detection Chassis intrusion header

System Bios
Bios Type	8Mb Flash EEPROM with Phoenix BIOS®
Bios Features.	Plug and Play (PnP) DMI 2.3 support PCI 2.2 ACPI 1.0 SMBIOS 2.3 USB Keyboard support

System Bios

Bios Type

8Mb Flash EEPROM with Phoenix BIOS®

Bios Features.

Plug and Play (PnP)
DMI 2.3 support
PCI 2.2
ACPI 1.0
SMBIOS 2.3
USB Keyboard support
