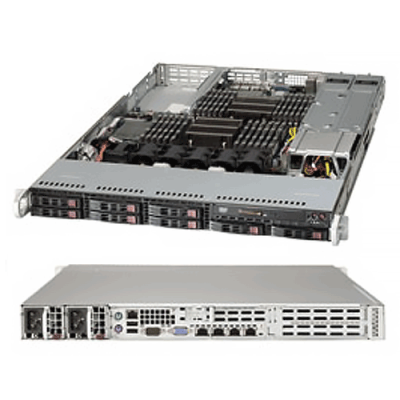

Supermicro 1U Rackmount SuperServer SYS-1027R-WRF4+

Call for price

In stock

SKU

SYS-1027R-WRF4+

Key Features:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 familyâ€
• Up to 1.5TB ECC DDR3, up to 1866MHz; 24x DIMM slots
• 1 PCI-E 3.0 (x8) Low-profile, 1 PCI-E 3.0 (x16) & 1 PCI-E 3.0 (x8) Full-height slots (see below for details)
• Intel® i350 Gigabit Ethernet (4x ports)
• 8x Hot-swap 2.5" SAS/SATA HDD bays for Customizable Storage
• 750/700W Redundant power supplies Gold Level Certified

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SuperServer SYS-1027R-WRF4+

Supermicro 1027R-WRF4+ 1U Server Barebone with 750/700W Redundant power supplies Gold Level Certified, Intel® C606 Chipset support 8x Hot-swap 2.5" SAS/SATA HDD bays using
Supermciro Super X9DRW-3LN4F+ Server Motherboard and CSE-119TQ-R700WB 1U Rackmount Chassis.

Product SKU
SYS-1027R-WRF4+	SuperServer 1027R-WRF4+ (Black)

Motherboard
	Super X9DRW-3LN4F+

Processor/Cache
CPU	Dual Socket R (LGA 2011) Intel® Xeon® processor E5-2600 and E5-2600 v2 familyâ€ (up to 130W TDP)
Cache	Up to 30MB
System Bus	QPI up to 8 GT/s
Note	â€ BIOS version 3.0 or above is required
	Please contact WillJaya Technical support for additional information

System Memory
Memory Capacity	24x 240-pin DDR3 DIMM slots Up to 1.5TB DDR3 ECC LRDIMM Up to 768GB DDR3 ECC Registered memory (RDIMM) Up to 128GB DDR3 ECC and non-ECC UDIMM
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C606 chipset
SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Connectivity	Intel® i350 Dual Port Gigabit Ethernet Controller Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
VGA	Matrox G200eW

Input/Output
SAS/SATA	Customizable storage
LAN	4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	7x USB 2.0 ports total (2x rear + 4x via header + 1x Type A)
Video	1x VGA port
Serial Port/Header	1x Fast UART 16550 port / 1 Header

Chassis
Form Factor	1U Rackmount
Model	CSE-119TQ-R700WB

Dimension and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	26.6" (676mm)
Gross Weight	46 lbs (20.9kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button System Reset button UID button
LED	Power status LED HDD activity LED 2x Network activity LEDs Universal Information (UID) LED

Expansion Slots
PCI-Express	1 PCI-E 3.0 (x16) Full-height (10" length) 1 PCI-E 3.0 (x8) Full-height (6.6" length) 1 PCI-E 3.0 (x8) Low-profile (4.1" length) UIO AOC Compatibility Matrix (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Expansion Slots

PCI-Express

1 PCI-E 3.0 (x16) Full-height (10" length)
1 PCI-E 3.0 (x8) Full-height (6.6" length)
1 PCI-E 3.0 (x8) Low-profile (4.1" length)
UIO AOC Compatibility Matrix

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot Swap	8 Hot-swap 2.5" SAS / SATA HDD trays (ready for PCI-E storage controller card)

Peripheral Drives
DVD-ROM	Slim DVD-ROM drive (optional)

Backplane
	SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

System Cooling
Fans	6x 4cm Counter-rotating PWM fans

Power Supply
	700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Input	700W: 100-140 V, 50-60 Hz, 8.5-6 Amp 750W: 180-240 V, 60-50 Hz, 5-3.8 Amp
DC Output +5V standby	3 Amp
Certification	GoldCertified

System Bios
Bios Type	128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI

Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 5Â°C to 35Â°C (41Â°F to 95Â°F) Non-operating Temperature: -40Â°C to 60Â°C (-40Â°F to 140Â°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
