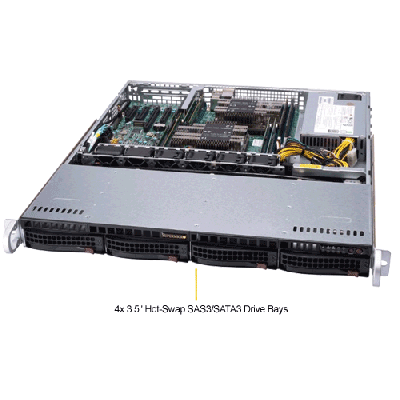

Supermicro 1U Rackmount Server SYS-6019P-MT Scalable Processors
Call for price
In stock
SKU
SYS-6019P-MT
Key Features:
• Data Center Optimized | Web Server |
Enterprise Server | Managed Hosting | Short Depth
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8 DIMM slots
• 1 PCI-E 3.0 x8 (FHHL) slot
• 4 Hot-swap 3.5" SATA3 drive bays
• 2 1GbE LAN ports via Marvell 88E1512
• IPMI 2.0 + KVM with Dedicated LAN
• 1 VGA, 2 USB 2.0 (rear)
• 2 SuperDOM (Disk on Module) ports;
1 PCIe/SATA M.2 drive connector
• 500W High-Efficiency Power Supply Platinum Level Certified
• Data Center Optimized | Web Server |
Enterprise Server | Managed Hosting | Short Depth
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8 DIMM slots
• 1 PCI-E 3.0 x8 (FHHL) slot
• 4 Hot-swap 3.5" SATA3 drive bays
• 2 1GbE LAN ports via Marvell 88E1512
• IPMI 2.0 + KVM with Dedicated LAN
• 1 VGA, 2 USB 2.0 (rear)
• 2 SuperDOM (Disk on Module) ports;
1 PCIe/SATA M.2 drive connector
• 500W High-Efficiency Power Supply Platinum Level Certified
Supermicro SuperServer SYS-6019P-MT
Product SKU |
|
|---|---|
| SYS-6019P-MT | SuperServer 6019P-MT (Black) |
Motherboard |
|
|---|---|
| Super X11DPL-i | |
Processor/Cache |
|
|---|---|
| CPU | Dual Socket P (LGA 3647) Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s Support CPU TDP 70-140W with IVR |
| Cores | Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
8 DIMM slots Up to 1TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | Intel® C621 chipset |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Connectivity | Marvell 88E1512 PHY Gigabit Ethernet controller Supports 1000BASE-T |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA |
4 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 2.0 ports (rear) |
| Video | 1 VGA port |
| Serial Port / Header | 1 COM port (header) |
| DOM | 2 SuperDOM (Disk on Module) ports |
System BIOS |
|
|---|---|
| Bios Type | 256Mb SPI Flash EEPROM with AMI BIOS |
Management |
|
|---|---|
| Software |
Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5 Watch Dog |
| Power Configuration | ACPI / APM Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator |
| Fan | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | 1U Rackmount |
| Model | CSE-813MF2TQC-505CB |
Dimension and Weight |
|
|---|---|
| Height | 17.2" (437mm) |
| Width | 1.7" (43mm) |
| Depth | 19.98" (508mm) |
| Gross Weight | 28.7 lbs (13.0 kg) |
| Available Color | Black |
Front Panel |
|
|---|---|
| Buttons |
Power On/Off button System Reset button |
| LED |
Power status LED HDD activity LED Network activity LEDs |
Expansion Slots |
|
|---|---|
| PCI-Express | 1 PCI-E 3.0 x8 (FHHL) slot |
Drive Bays |
|
|---|---|
| Hot-swap | 4 Hot-swap 3.5" SATA3 drive bays |
Backplane |
|
|---|---|
| SAS2/SATA3 Backplane | |
System Cooling |
|
|---|---|
| Fans | 4x 4cm 22.5K RPM middle cooling fans |
Power Supply |
|
|---|---|
| 500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC | |
| AC Input | 100-240V, 50-60Hz, 6.6A max |
| DC Output | +3.3V: 12A +5V: 15A +5V standby: 3A +12V: 41A -12V: 0.2A |
| Certification | 80 Plus Platinum Certified |
Operating Environment / Compliance |
|
|---|---|
| RoHS | RoHS Compliant |
Environmental Spec.
|
Operating Temperature:
10°C to 35°C (50°F to 95°F)
|
