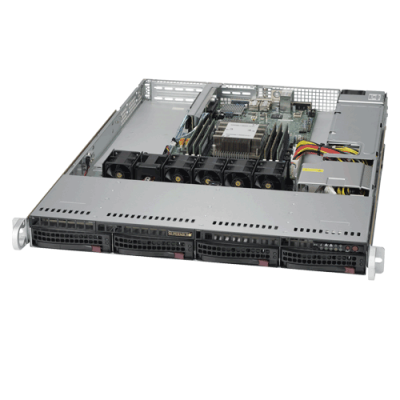

Supermicro 1U Rackmount Server SYS-5019P-M Scalable Processors
Key Features:
• Web Hosting, VM
• Compact Network Appliance
• Single socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
• Intel® C621 chipset
• 4 Hot-swap 3.5" SATA3 bays w/ RAID
• Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, HL)
• 2x 1GbE with Marvell® 88E1512
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• 1 VGA, 2 COM, 5 USB 3.0, 6 USB 2.0
• 350W High-efficiency Power Supply Platinum Level Certified
Product SKU |
|
|---|---|
| SYS-5019P-M | SuperServer 5019P-M (Black) |
Motherboard |
|
|---|---|
| Super X11SPM-F | |
Processor/Cache |
|
|---|---|
| CPU | Single Socket P (LGA 3647) Intel® Xeon® Scalable Processors Support CPU TDP 70-165W with IVR |
| Cores | Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
6 DIMM slots Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | Intel® C621 chipset |
| SATA | SATA3 (6Gbps) via C621 controller RAID 0, 1, 5, 10 support |
| Network Connectivity | Dual Gigabit Ethernet LAN with Marvell® 88E1512 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA |
4 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 4 USB 3.0 ports (2 front, 2 rear) 2 USB 2.0 ports (rear) |
| Video | 1 VGA port |
| Serial Port / Header | 2 COM ports (1 rear, 1 header) |
| SuperDOM | 2 SuperDOM (Disk on Module) ports with built-in power |
System BIOS |
|
|---|---|
| Bios Type | AMI UEFI |
Management |
|
|---|---|
| Software |
Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM, SUM SuperDoctor® 5 Watch Dog |
| Power Configuration | ACPI / APM Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator |
| Fan | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | 1U Rackmount |
| Model | CSE-813MFTQC-350CB |
Dimension and Weight |
|
|---|---|
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 19.8" (503mm) |
| Gross Weight | 30.4 lbs (13.8 kg) |
| Available Color | Black |
Front Panel |
|
|---|---|
| Buttons |
Power On/Off button System Reset button |
| LED |
Power LED Hard drive activity LED Network activity LEDs System Overheat LED |
Expansion Slots |
|
|---|---|
| PCI-Express | 1 PCI-E 3.0 x16 slot (FH, HL) |
Drive Bays / Storage |
|
|---|---|
| Hot-swap | 4 Hot-swap 3.5" SATA3 drive bays |
| M.2 | Interface: PCIe 3.0 x4 Form Factor: 2242, 2280 |
Peripheral Drives |
|
|---|---|
| Optional | Optional slim optical device bay, optional FDD/USB bay |
System Cooling |
|
|---|---|
| Fans |
4x 40x28mm PWM fans; 2x 40x28mm PWM fans Optional 2 fans for AOC cooling |
Power Supply |
|
|---|---|
| 350W AC power supply w/ PFC | |
| AC Voltage | 100-240 V, 50-60 Hz, 4.2-1.8 Amp |
| +5V | Max.: 15 Amp Min.: 0.2 Amp |
| +5V standby | Max.: 3 Amp Min.: 0 Amp |
| +12V | Max.: 29 Amp Min.: 0.5 Amp |
| -12V | Max.: 0.2 Amp Min.: 0 Amp |
| +.3.V | Max.: 12 Amp Min.: 0.2 Amp |
| Certification | 80 Plus Platinum Level Certified |
Operating Environment / Compliance |
|
|---|---|
| RoHS | RoHS Compliant |
Environmental Spec.
|
Operating Temperature:
10°C to 35°C (50°F to 95°F) |
