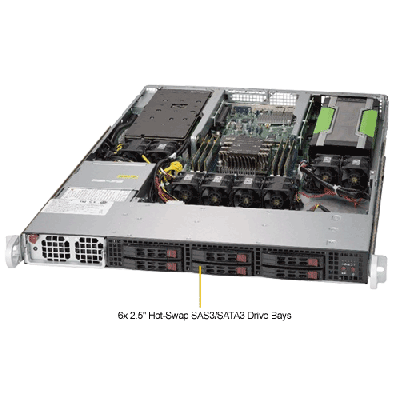

Supermicro 1U Rackmount Server SYS-1019GP-TT Scalable Processors

Call for price

In stock

SKU

SYS-1019GP-TT

Key Features:
• Single socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
• Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6 DIMM slots
• 2 PCI-E 3.0 x16 slots (support double-width GPU), 1 PCI-E 3.0 x16 low-profile slot (center right)
• 6 Hot-swap 2.5" SAS/SATA drive bays
• 2x 10GBase-T LAN ports via Intel X550
• Dual M.2 Mini-PCIe support 2280
• 8 Heavy duty 4cm counter-rotating 4cm fans with air shroud & optimal fan speed control
• 1400W High-efficiency Power Supply Platinum Level (94%+)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Supermicro SuperServer SYS-1019GP-TT

Product SKU
SYS-1019GP-TT	SuperServer 1019GP-TT (Black)

Motherboard
	Super X11SPG-TF

Processor/Cache
CPU	Single Socket P (LGA 3647) Intel® Xeon® Scalable Processors Support CPU TDP 70-205W
Cores	Up to 28 Cores with Intel® HT Technology
GPU / Coprocessor Support	P100/P40/P4/K80/M60/Coprocessor

System Memory
Memory Capacity	6 DIMM slots Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset	Intel® C621 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity	Intel® X550 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500

Input/Output
SATA	6 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
Video	1 VGA port
Serial Port / Header	1 COM port (header)
DOM	2 DOM (Disk on Module) power connectors

System BIOS
Bios Type	AMI 32Mb SPI Flash ROM

Management
Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog
Power Configuration	ACPI / APM Power Management

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
Fan	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	1U Rackmount
Model	CSE-118GTS-1K43BP

Dimension and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	28.5" (724mm)
Gross Weight	36 lbs (16.33 kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button System Reset button
LED	Power LED Hard drive activity LED Network activity LEDs System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express	1 PCI-E 3.0 x16 slot (center right) 1 PCI-E 3.0 x16 slot (right riser) 1 PCI-E 3.0 x16 slot (left riser)

Drive Bays
Hot-swap	6 Hot-swap 2.5" SAS/SATA drive bays
M.2	Dual M.2 Mini PCIe support 2280

System Cooling
Fans	8 heavy duty counter-rotating 4cm fans with air shroud and optimal fan speed control

Power Supply
	1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage	1200W: 100-140 V, 14.7-10.5A, 50-60 Hz 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
+5V standby	6 Amp
+12V	100 Amp/115 Vac 117 Amp/230 Vac
With Power Distributor	+5V: 14 Amp
Certification	80 Plus Platinum Certified

Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10Â°C to 35Â°C (50Â°F to 95Â°F) Non-operating Temperature: -40Â°C to 60Â°C (-40Â°F to 140Â°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Operating Environment / Compliance

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 10Â°C to 35Â°C (50Â°F to 95Â°F)
Non-operating Temperature: -40Â°C to 60Â°C (-40Â°F to 140Â°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
