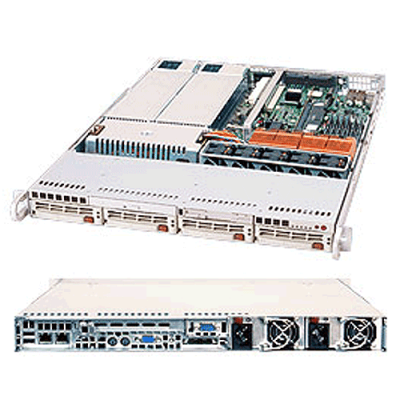

Supermicro 1U Rackmount Dual Core Server SYS-6014P-82RB
Key Features:
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR2 400MHz SDRAM
• 1 (x8) PCI-Express Expansion Slot OR 1 x 64-bit 133MHz
Full-height / length PCI-X Slot
• 2 x Intel® 82546GB Gigabit Ethernet Ports
• Zero Channel RAID Support
• 4 x 3.5" Ultra320 SCSI Hot-swap Drive Bays
• 560W Hot-swap Redundant Power Supply with I2C for Remote Management
Supermicro SYS-6014P-82R / SYS-6014P-82RB 1U Rackmount with 560W Hot-swap Redundant Power Supply,Intel® E7520 chipset,4x 3.5" Hot-swap Ultra320/160 SCSI drive bays,
using Supermicro
Super X6DHP-8G2 Motherboard and SC814S+-R560 Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-6014P-82R | SuperServer 6014P-82R (Beige) |
| SYS-6014P-82RB | SuperServer 6014P-82RB (Black) |
Motherboard |
|
|---|---|
| Super X6DHP-8G2 | |
Processor/Cache |
|
|---|---|
| CPU | Dual 604-pin FC-mPGA4 Sockets |
| System Bus | 800 MHz system bus |
| Operating System Software | Supports 64-bit Operating Systems Supports 32-bit Operating Systems |
System Memory |
|
|---|---|
| Memory Capacity |
Eight 240-pin DIMM sockets Supports up to 16 GB DDR2 400MHz memory Dual-channel memory bus Memory must be populated in pairs Single-rank modules are recommended for 6+ DIMM support |
| Memory Type | DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 512 MB, 1GB, 2GB |
| Memory Voltage | 1.8V only |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | Intel® E7520 chipset |
| SCSI | Adaptec AIC-7902 Controller Dual-Channel Ultra320 SCSI Host RAID 0, 1, 10, JBOD support |
| Zero Channel RAID | Support for Zero-Channel RAID Optional Card Not Included |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 (Optional [1U: AOC-1UIPMI-B]) |
| Network Controllers | Intel® 82546GB Dual Port Gigabit Controller Supports RJ45 output |
| Graphics | ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
| Super I/O | National 87427 chip |
Expansion Slots |
|
|---|---|
| PCI-Express / PCI-X |
1 x Universal (SXB-E) slot for
[1 (x8) PCI-E Slot] OR
[1x 64-bit PCI-X 133MHz slot] Supports Full-length add-on cards |
Input/Output |
|
|---|---|
| SCSI | External High Density SCSI Port |
| IDE | Dual EIDE channels support up to four UDMA/ IDE devices Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| Floppy | 1 Floppy controller; 1.44 MB |
| LAN | 2x RJ45 LAN port |
| USB | 2x USB rear ports |
| VGA | 1x VGA Port |
| Keyboard / Mouse | PS/2 keyboard and mouse ports |
| Serial Port / Header | 2 Fast UART 16550 serial ports |
Chassis |
|
|---|---|
| Form Factor | 1U Rackmount |
| Model | SC814S+-R560 |
Dimension and Weight |
|
|---|---|
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 26.8" (681mm) |
| Weight | 46.5 lbs (21.1kg) |
| Available Color | Beige,Black |
Front Panel |
|
|---|---|
| Buttons | Power On/Off button |
| LEDs | Power LED Hard Drive Activity LED 2x Network activity LEDs System Overheat / Fan Fail LED UID LED |
| Ports | N/A |
Drive Bays |
|
|---|---|
| Hot-swap | 4x 3.5" Hot-swap Ultra320/160 SCSI drive bays |
Peripheral Drives |
|
|---|---|
| Floppy | TEAC 3.5" 1.44MB Slim Floppy Drive |
| DVD-ROM | Panasonic Slim DVD-ROM drive |
SCSI Backplane |
|
|---|---|
| 1x SCA814S 1U SCSI Backplane w/ SAF-TE | |
System Cooling |
|
|---|---|
| Fans | 5x 4cm 12,000 RPM Nidec dual blade fans |
Power Supply |
|
|---|---|
| 560W (1 + 1) Redundant AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ] | |
| AC Voltage | 100 - 240V, 50 - 60Hz, 10 - 5 Amp |
| DC Output | 5V + 3.3V ≤ 160W |
| +5V | 30 Amp |
| +5V stand by | 4.0 Amp |
| +12V | 46 Amp |
| -12V | 1.0 Amp |
| +3.3V | 21 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby & VBAT |
| FAN | Total of five proprietary fan connectors supporting 10 fans 10x fans with Tachometer status monitoring Status monitor for speed control |
| Temperature | Monitoring for CPU, chassis environment CPU thermal trip support Thermal control for 10x fan connectors Thermal Monitor 2 (TM2) support |
| LED | CPU / System Overheat LED |
| Other Featue | Chassis intrusion detection Chassis intrusion header SDDC support |
System Bios |
|
|---|---|
| Bios Type | 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | Plug and Play (PnP)
|
