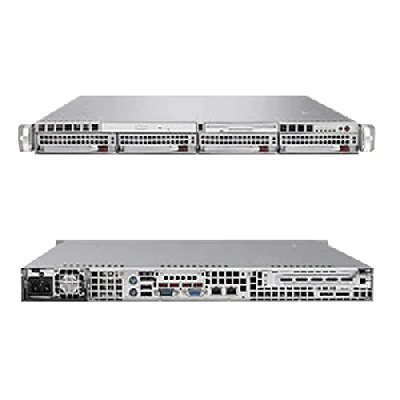

Supermicro 1U Rackmount A+ Server AS-1021M-T2+B
Key Features:
• Supports 2x Six-Core AMD Opteron„¢ 2000 processor
• Up to 128GB of memory
• 1 (x8) PCI-Express Slot
• 4 x 3.5" Hot-swap SATA Drive Bays
• 560W High-efficiency Power Supply
Product SKU
| |
---|---|
AS-1021M-T2+V | • A+ Server 1021M-T2+V (Silver) |
AS-1021M-T2+B | • A+ Server 1021M-T2+B (Black) |
Motherboard
| |
---|---|
• Super H8DME-2 |
Processor/Chipset
|
|
---|---|
CPU | • Dual 1207-pin Socket F • Supports up to two Six-Core AMD Opteron„¢ 2000 Series (Socket F) processors • HT3.0 Link support |
Chipset | • nVidia MCP55 Pro • NEC uPD720400 |
System Memory
| |
---|---|
Memory Capacity | • 16x 240-pin DIMM sockets • Support up to 128GB DDR2 800/667/533/400 SDRAM * • For Single CPU: Memory must be populated in CPU1 DIMMs only • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks • Dual channel memory bus |
Memory Type | • DDR2 800/667/533/400 MHz Reg. ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB, 8GB |
Memory Voltage | • 1.8V only |
On-Board Devices
| SATA | • nVidia MCP55 Pro SATA2 3.0Gbps Controller • 6 SATA Ports • nVidia RAID 2.0 • SATA RAID 0, 1, 0+1, 5, JBOD Support |
IPMI | • Intelligent Platform Management Interface v.2.0, Low Profile • RMM (Remote Management Module) • (Card not included) |
---|---|
Network Controllers | • nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
VGA |
• ATI ES1000 Graphics Controller |
Super I/O | • Winbond 83627HF |
Input/Output
| SATA | • 6 SATA2 ports | IDE | • Single EIDE channel support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100/133 |
Floppy | • 1 Floppy port; 1.44 MB support | LAN | • 2 RJ45 LAN ports |
---|---|
USB | • FUCI • Up to 6 USB Ports 2.0 Compliant, 1.1 Compatible • 2 Rear Ports • 4 Internal Headers |
VGA | • 1 VGA port |
Keyboard/Mouse | • PS/2 keyboard and mouse ports |
Serial Ports | • 1 Fast UART 16550 serial port • 1 serial port header |
System BIOS
| |
---|---|
BIOS Type | • 8Mb Flash EEPROM with AMI® BIOS |
BIOS Features |
• Plug and Play (PnP) |
Chassis
| |
---|---|
Form Factor | • 1U Rackmount |
Model | • SC815TQ-560CB/V |
Dimension and Weight
| |
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 25.6" (650mm) |
Gross Weight | • 38 lbs (17.2kg) |
Available Colors | • Silver,Black |
Front Panel
| |
---|---|
Buttons | • Power On/Off button |
LEDs |
• Power LED |
Ports | • 2x USB & DB9 COM port tray • (Optional - in place of floppy drive) |
Expansion Slots
| |
---|---|
PCI-Express Slot | • 1 PCI-express x8 Slot |
Drive Bays
| |
---|---|
Hot-swap | • Hot-swap 4 x 3.5" Hot-swap SATA drive bays |
SATA Backplane
| |
---|---|
• 1U SATA / SAS Backplane w/ AMI 9071 chip |
System Cooling
| |
---|---|
Fans | • 4x Cooling Fans |
Air Shroud |
• 1x Air Shroud |
Power Supply
| |
---|---|
560W AC power supply with PFC (24-pin) | |
AC Voltage | • 100-240 V, 50-60 Hz, 8.5-4 Amp |
+5V
|
• 25 Amp |
+5V standby | • 3 Amp |
+12V | • 43.6 Amp |
-12V | • 0.6 Amp |
+3.3V | • 21 Amp |
Certification | • 80Plus Certified |
PC Health Monitoring
| |
---|---|
CPU | • Monitors CPU Core Voltages, +1.5V, +3.3V, +5V, ±12V, 5V Standby, HyperTransport Link voltage 1.2V, memory voltage 1.8V, VBAT |
FAN | • Total up to 8-fan status tachometer monitoring • Up to eight 4-pin fan headers • Status monitor for speed control • Stauts monitor for on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal Control for 8x Fan Connectors • I2C Temperature Sensing Logic |
LED | • CPU / System Overheat LED • Suspend-State Indicator LED • +5V Standby Alert LED |
Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header |
Operating Environment / Compliance
| |
---|---|
RoHS |
• RoHS Compliant |
Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
