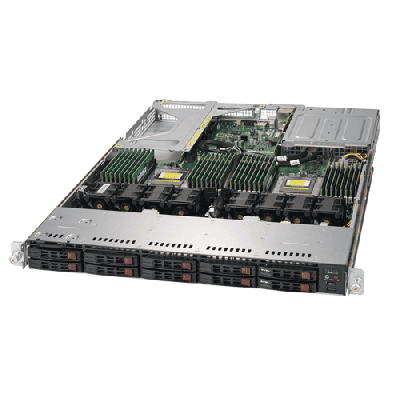

Supermicro 1U A+ Servers AS -1123US-TR4

Call for price

In stock

SKU

AS-1123US-TR4

Key Features:
• Dual AMD EPYC„¢ 7000-Series Processors
• Up to 4TB of memory
• 10 hot-swap 2.5" SATA3 by default
• Or 8 SATA3 + 2 NVMe (optional)
• Or 8 SAS3 ports + 2 SATA3€‰(SAS Add-on card is optional)
• 1000W Redundant Power Supplies Titanium Level

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 4 DIMMs, 1 HDD/NVMe). Recommended configuration for best performance is at least 1 DIMM per channel per CPU (16 DIMM Total). Please contact your Will Jaya sales rep for special requirements.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Supermicro 1U A+ Servers AS -1123US-TR4

Product SKU
AS -1123US-TR4	• A+ Server 1123US-TR4

Motherboard
	• H11DSU-iN

Processor/Cache
CPU	• Dual AMD EPYC„¢ 7000-series Processors • Socket SP3
Cores	• Up to 32 Cores
Chipset	• System on Chip (SoC)

System Memory
Memory Capacity	• 32 DIMM sockets • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs • 8-channel memory bus
Memory Type	• DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes	• 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	• 1.2V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
VGA	• ASPEED AST2500 BMC

Expansion Slots
1U	• 2 PCI-E x16 (FH/HL 9.5") slots • 2 PCI-E x8 (LP) slot (1 LP, 1 internal LP)
	Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.

Input/Output
SATA	• 10 SATA3 (6 Gbps) ports
LAN	• Quad Gigabit LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
VGA	• 1 VGA port
SAS	• 8 SAS3 ports support via optional Add-on Card
NVMe	• 2 NVMe support with optional cables
Others	• 1 COM port (rear) • 2 SATA DOM power connector • TPM 1.2 header

System BIOS
BIOS Type	• AMI 128Mb SPI Flash EEPROM
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 5.1 • USB Keyboard Support • SMBIOS 3.1.1

Chassis
Form Factor	• 1U
Model	• CSE-119UTS-R1K02P-T

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 27.82" (707mm)
Gross Weight	• 41 lbs (18.6 g)

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED

Drive Bays
Hot-swap	• 10 2.5" hot-swap SATA3 or 8 SATA3 + 2 NVMe drive bays (optional)

Backplane
HDD Backplane	• Supports 10 SATA3 or 8 SATA3 + 2NVMe or 8 SAS3 + 2 SATA3 HDD

System Cooling
Fans	• 8 heavy-duty PWM fans with optimal fan speed control
Air Shroud	• 2 Air Shroud

Power Supply
	1000W Redundant Power Supplies with PMBus
Total Output Power	• 800W/1000W
Dimension (W x H x L)	• 73.5 x 40 x 203 mm
Input	• 100-127Vac / 9.8 - 7A / 50-60Hz • 200-240Vac / 7 - 5A / 50-60Hz • 200-240Vdc / 7 - 5A (for CCC only)
+12V	• Max: 66.7A / Min: 0A (100-127Vac) • Max: 83A / Min: 0A (200-240Vac) • Max: 83A / Min: 0A (200-240Vdc)
12Vsb	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Titanium Level

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT • CPU switching voltage regulator
FAN	• Up to 8-fan status tachometer monitoring • Up to eight 4-pin fan headers • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal control for 8x Fan connectors • I2C Temperature Sensing Logic
LED	• CPU / System Overheat LED
Other Features	• Chassis Intrusion Detection • Chassis Intrusion Header

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
