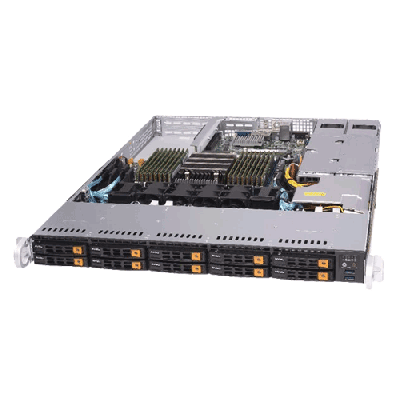

Supermicro 1U A+ Servers AS -1113S-WN10RT

Call for price

In stock

SKU

AS-1113S-WN10RT

Key Features:
• Single AMD EPYC„¢ 7000-Series Processor
• Up to 2TB of memory
• 10 hot-swap 2.5" U.2 NVMe drive bays
• Integrated IPMI 2.0 + KVM
• 2x 10GBase-T LAN ports
• 750W Redundant PS Platinum Level

Due to the complexity of integration, this product is sold as a completely assembled system only (with 1 CPU, minimum 8 DIMMs, 1 NVMe). Recommended configuration for best performance is at least 24 or 32 Cores per CPU. Please contact your Will Jaya sales rep for special requirements.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Supermicro 1U A+ Servers AS -1113S-WN10RT

Product SKU
AS -1113S-WN10RT	• A+ Server 1113S-WN10RT

Motherboard
	• H11SSW-NT

Processor/Cache
CPU	• Single AMD EPYC„¢ 7000-series Processor • Socket SP3
Cores	• Up to 32 Cores
Chipset	• System on Chip (SoC)

System Memory
Memory Capacity	• 16 DIMM slots • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM • 8-channel memory bus
Memory Type	• DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes	• 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	• 1.2V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2500 BMC
Network Controllers	• Broadcom BCM57416 Controller
VGA	• ASPEED AST2500 BMC

Expansion Slots
PCI Express	• 2 PCI-E 3.0 x16 (FH/HL) slots • 1 PCI-E 3.0 x16 (LP) slot
M.2	• Interface: PCI-E 3.0 x2 (NVMe based) • Form Factor: 2280, 22110 • Key: Onboard M-key • Number of M.2: 2

Input/Output
NVMe	• Up to 10 U.2 NVMe support
SATA	• Optional 4 SATA3 (6 Gbps) support via additional cables
LAN	• 2x 10GbBase-T LAN ports •1 RJ45 Dedicated IPMI LAN port
USB	• 7 USB 3.0 ports (4 rear + 2 front + 1 Type A)
VGA	• 1 VGA port
Others	• 1 COM port • 2 SATA DOM power connectors • TPM 1.2 header

System BIOS
BIOS Type	• AMI 128Mb SPI Flash EEPROM
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 5.1 • USB Keyboard Support • SMBIOS 3.1.1

Chassis
Form Factor	• 1U
Model	• CSE-116TS-R706WBP3

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 23.5" (597mm)
Gross Weight	• 33 lbs (15.0 kg)

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED

Drive Bays
Hot-swap	• 10 hot-swap 2.5" U.2 NVMe drive bays

Backplane
Hybrid Backplane	• Supports up to 10x 2.5" NVMe storage devices, 4 of them SAS3/SATA3 compatible

System Cooling
Fans	• 6 heavy-duty PWM fans with optimal fan speed control
Air Shroud	• 1 Air Shroud

Power Supply
	700W/750W Redundant Power Supplies with PMBus
Total Output Power	• 700W/750W
Dimension (W x H x L)	• 54.5 x 40.25 x 320 mm
Input	• 100 - 140Vac / 8 - 6A / 50-60Hz • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz • 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V	• Max: 58A / Min: 0.5A (100 - 140Vac) • Max: 62A / Min: 0.5A (200 - 240Vac) • Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
+5Vsb	• Max: 3A / Min: 0A
Output Type	• Gold Finger Connector Mating with Molex 45984-4343
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT • CPU switching voltage regulator
FAN	• Up to 6-fan status tachometer monitoring • Up to six 4-pin fan headers • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal control for 6x Fan connectors • I²C Temperature Sensing Logic
LED	• CPU / System Overheat LED
Other Features	• Chassis Intrusion Detection • Chassis Intrusion Header

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 30°C (50°F to 86°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
