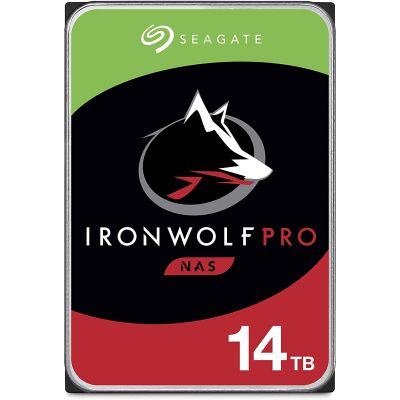

ST14000VN0008

SPECIFICATIONS

• Capacity: 14TB
• Interface: SATA 6Gb/s
• Recording Technology: CMR

FEATURES AND PERFORMANCE

• Drive Bays Supported: 1-8 Bays
• Workload Rate Limit (WRL): 180
• Rotational Vibration (RV) Sensor: Yes
• Dual-Plane Balance: Yes
• Error Recovery Control: Yes
• Max. Sustained Transfer Rate OD (MB/s): 210MB/s
• Spindle Speed (RPM): 7200
• Cache (MB): 256
• Halogen Free: Yes

RELIABILITY

• Load/Unload Cycles: 600000
• Nonrecoverable Read Errors Rate, Max: 1 per 10E15
• Power-On Hours: 8760
• Mean Time Between Failures (MTBF, hours): 1000000
• Limited Warranty (years): 3

POWER MANAGEMENT

• Startup Current, Typical (12V, A): 1.8
• Average Operating Power (W): 7.3W
• Idle Average (W): 5.3W
• Standby Mode/Sleep Mode, Typical (W): 0.8/0.8
• Voltage Tolerance, Inc. Noise (5V): ±5%
• Voltage Tolerance, Inc. Noise (12V): ±10%

PHYSICAL

• Height (mm/in): 26.11mm/1.028in
• Width (mm/in, max): 101.85mm/4.01in
• Depth (mm/in, max): 146.99mm/5.787in
• Weight (g/lb, typical): 670g/1.477lb
• Carton Unit Quantity: 20
• Cartons per Pallet/Cartons per Layer: 40/8

ENVIRONMENTAL

• Operating (ambient, min °C): 5
• Operating (drive case, max °C): 70
• Nonoperating (ambient, min °C): -40
• Nonoperating (ambient, max °C): 70
• Shock, Operating/Nonoperating: 2ms (max): 50Gs/200Gs
• Idle (typical): 2.8bels
• Seek (typical): 3.0bels
