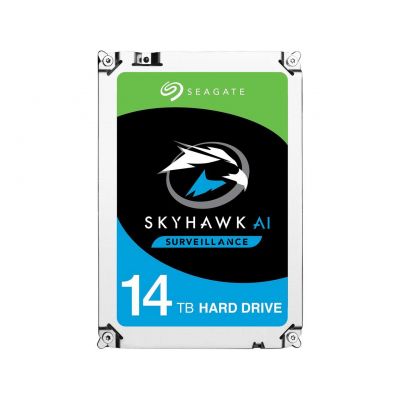

ST14000VE0008

SPECIFICATIONS

• Capacity: 14TB
• Interface: SATA 6Gb/s
• Recording Technology: CMR
• Drive Design: Helium

FEATURES AND PERFORMANCE

• Drive Bays Supported: 16+
• AI Channels: 32
• AI Real Time Capture Events/Sec: Up to 120
• AI Real Time Compare Events/Sec: Up to 96
• HD Cameras Supported: Up to 64
• RV Sensors: Yes
• Max. Sustained Transfer Rate OD (MB/s): 250MB/s
• Cache (MB): 256
• Workload Rate Limit (WRL): 550

RELIABILITY

• Tarnish Resistant: Yes
• Load/Unload Cycles: 300000
• Nonrecoverable Read Errors Rate, Max: 1 per 10E15
• Power-On Hours per year: 8760
• Mean Time Between Failures (MTBF) (hours): 2,000,000hr
• Warranty, Limited (years): 3
• Rescue Data Recovery Services (years): —

POWER MANAGEMENT

• Startup Current, Typical (12V, A): 1.8
• Average Operating Power (W): 6.9W
• Idle Average (W): 4.9W
• Standby Mode/Sleep Mode, Typical (W): 1.2/1.2
• Voltage Tolerance (5V): ±5%
• Voltage Tolerance (12V): ±10%

PHYSICAL

• Height (mm/in, max): 26.11mm/1.028in
• Width (mm/in, max): 101.85mm/4.01in
• Depth (mm/in, max): 146.99mm/5.787in
• Weight (g/lb, typical): 690g/1.521lb
• Carton Unit Quantity: 20
• Cartons per Pallet/Cartons per Layer: 40/8

ENVIRONMENTAL

• Operating (ambient, min °C): 5
• Operating (drive case, max °C): 70
• Nonoperating (ambient, min °C): -40

CONFIGURATION

OTHER
