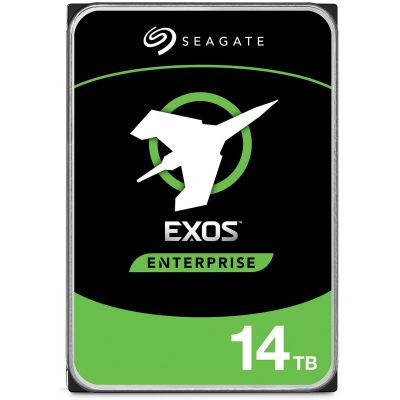

ST14000NM002G

SPECIFICATIONS

• Capacity: 14TB
• SED Model FastFormat (512e/4Kn): ST14000NM004G
• SED-ISE FastFormat (512e/4Kn): ST14000NM013G
• SED-FIPS FastFormat (512e/4Kn): ST14000NM012G

FEATURES AND PERFORMANCE

• Helium Sealed-Drive Design: Yes
• Protection Information (T10 DIF): Yes
• SuperParity: Yes
• Low Halogen: Yes
• PowerChoice™ Idle Power Technology: Yes
• PowerBalance™ Power/Performance Technology: Yes
• Hot-Plug Support: Yes
• Cache, Multisegmented (MB): 256
• Organic Solderability Preservative: Yes
• RSA 2048 Firmware Verification (SD&D): Yes
• Spindle Speed (RPM): 7200RPM
• Interface Access Speed (Gb/s): 12.0, 6.0, 3.0
• Max. Sustained Transfer Rate OD (MB/s,MiB/s): 261, 249
• Random Read/Write 4K QD16 WCD (IOPS): 170/440
• Average Latency (ms): 4.16
• Interface Ports: Dual
• Rotation Vibration @ 20-1500 Hz (rad/sec²): 12.5

RELIABILITY

• Mean Time Between Failures (MTBF, hours): 2500000
• Reliability Rating @ Full 24×7 Operation (AFR): 0.35%
• Nonrecoverable Read Errors per Bits Read: 1 sector per 10E15
• Power-On Hours per Year (24×7): 8760
• 512e Sector Size (Bytes per Sector): 512, 520, 528
• 4Kn Sector Size (Bytes per Sector): 4096, 4160, 4224
• Limited Warranty (years): 5

POWER MANAGEMENT

• Idle A (W) Average: 5.0W
• Max Operating, Random Read/Write 4K/16Q (W): 10.2, 6.2
• Power Supply Requirements: +12 V and +5 V

PHYSICAL

• Height (in/mm, max): 1.028in/26.11mm
• Width (in/mm, max): 4.010in/101.85mm
• Depth (in/mm, max): 5.787in/147.00mm
• Weight (lb/gm): 1.477lb/670g
• Carton Unit Quantity: 20
• Cartons per Pallet/Cartons per Layer: 40/8

ENVIRONMENTAL

• Temperature, Operating (°C): 5°C – 60°C
• Vibration, Nonoperating: 2 to 500Hz (Grms): 2.27
• Shock, Operating 2ms (Read/Write) (Gs): 50
• Shock, Nonoperating 2ms (Gs): 200
